DTCS P000B To P0123 - NGC
›
P0116-Engine Coolant Temperature Sensor Circuit Performance
›
Circuit Schematic
Circuit Schematic

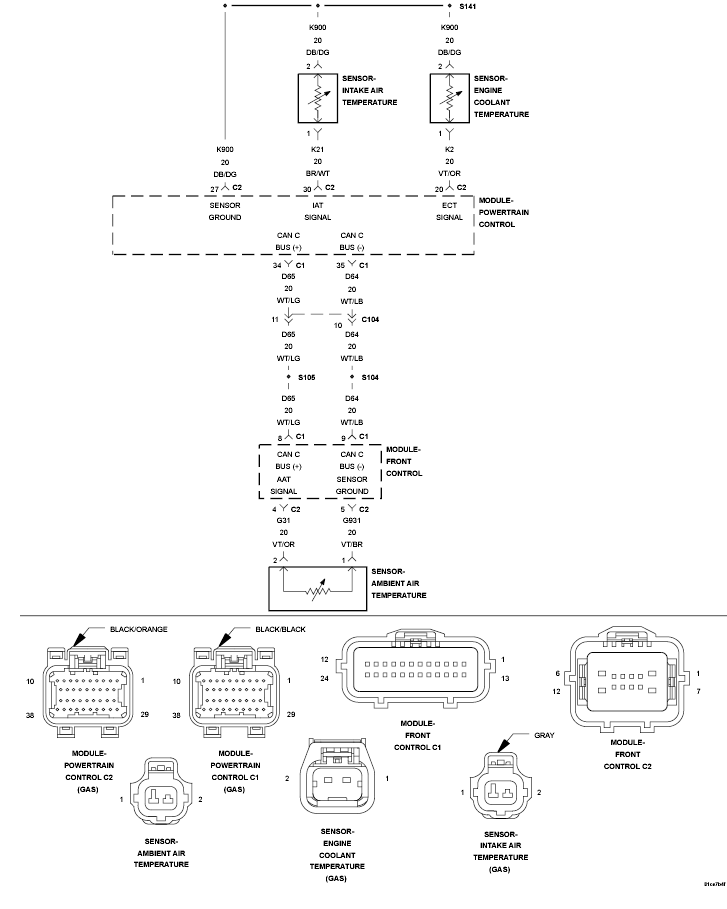

Fig 1: Ambient Air Temperature Sensor/Intake Air Temperature Sensor/Engine Coolant Temperature Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
