Home › Jeep › 2009 › Commander Overland, 4WD › Repair and Diagnosis › Engine Performance › System › DTCS P0197 To P0330 - NGC › P0203-Fuel Injector 3 Circuit › Notes

P0203-Fuel Injector 3 Circuit: Notes

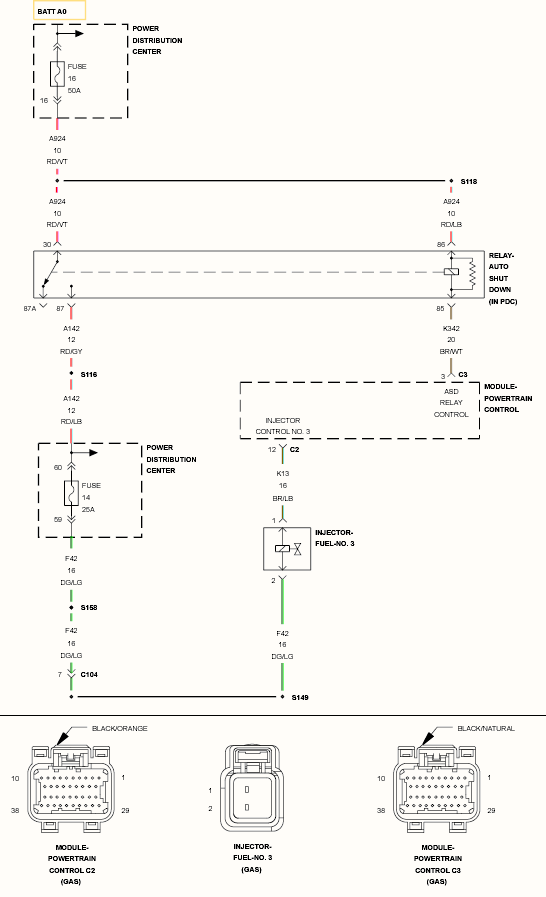

Fig 1: Fuel Injector Circuit
GC0132712Courtesy of CHRYSLER LLC
