Circuit Schematic

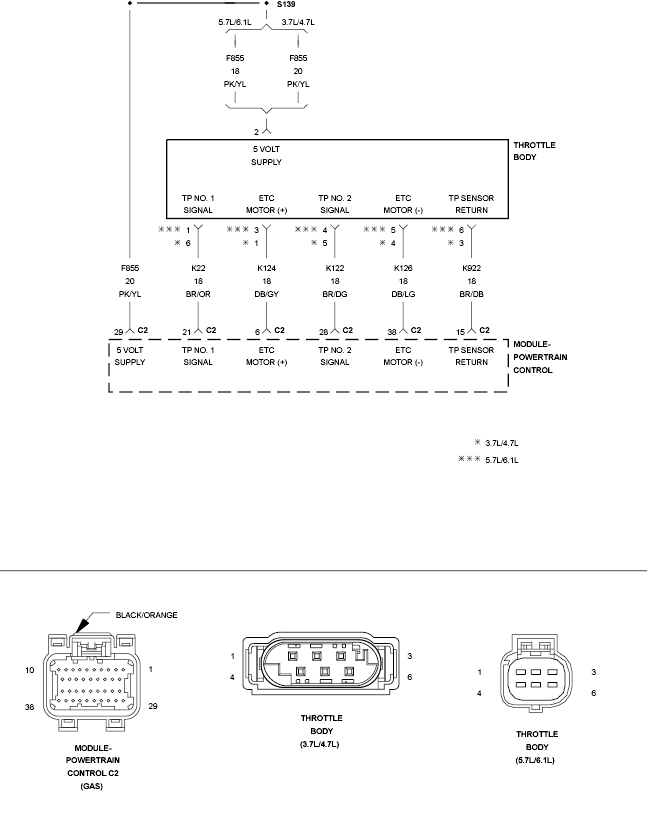

Fig 1: Electronic Throttle Control Motor Circuit Schematic
GC0120341Courtesy of CHRYSLER LLC
