P0521-Engine Oil Pressure Sensor Performance: Notes

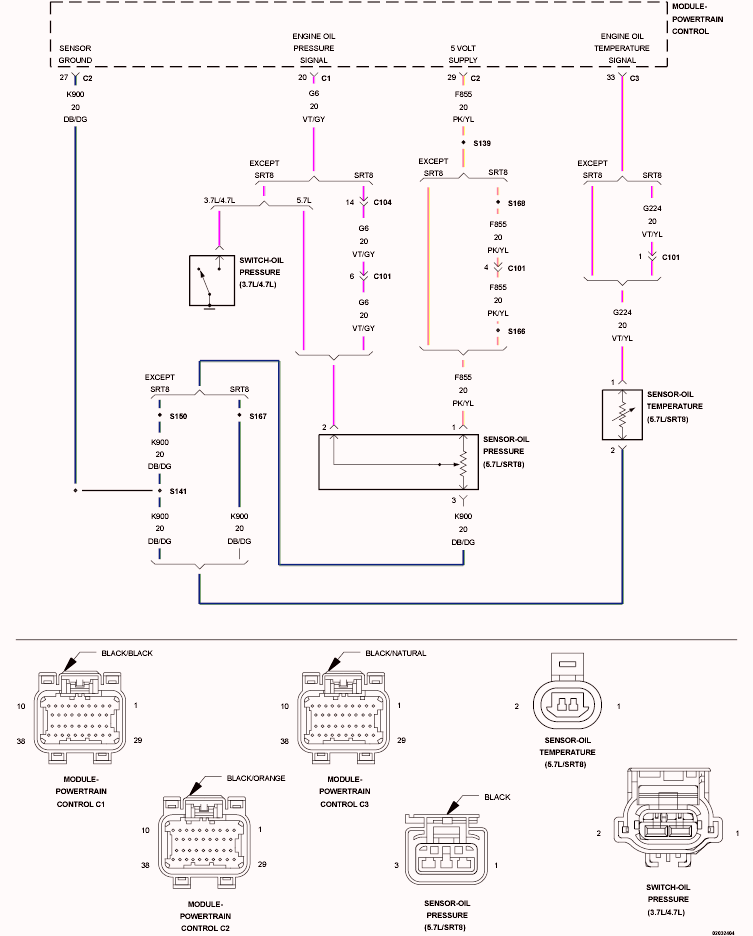

Fig 1: Engine Oil Pressure Sensor Circuit
GC0132721Courtesy of CHRYSLER LLC
