4.7L/5.7L Vehicles

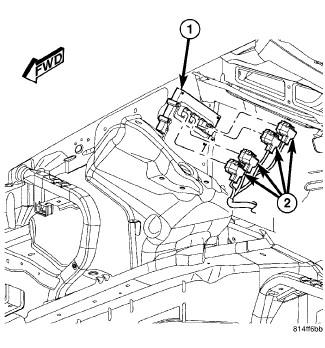

Fig 1: Powertrain Control Module

Courtesy of CHRYSLER LLC

The Transmission Control Module (TCM) is a sub-module within the Powertrain Control Module (PCM) (1) . See Fig 1. The PCM is located on the right inner fender.
