U0020-Can B Bus Off Performance: Notes

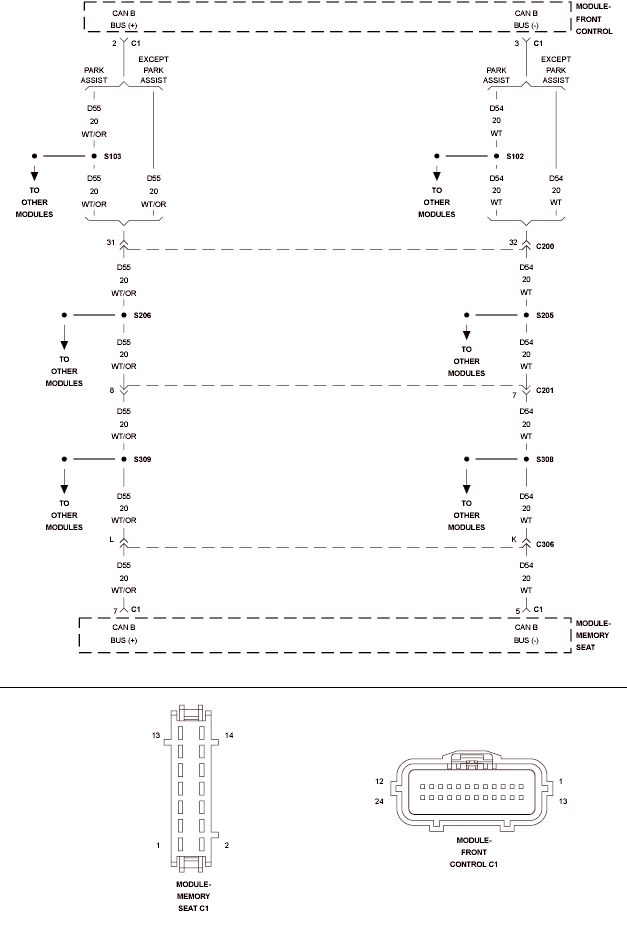

Fig 1: CAN B BUS Circuit Schematic
GC0120286Courtesy of CHRYSLER LLC
