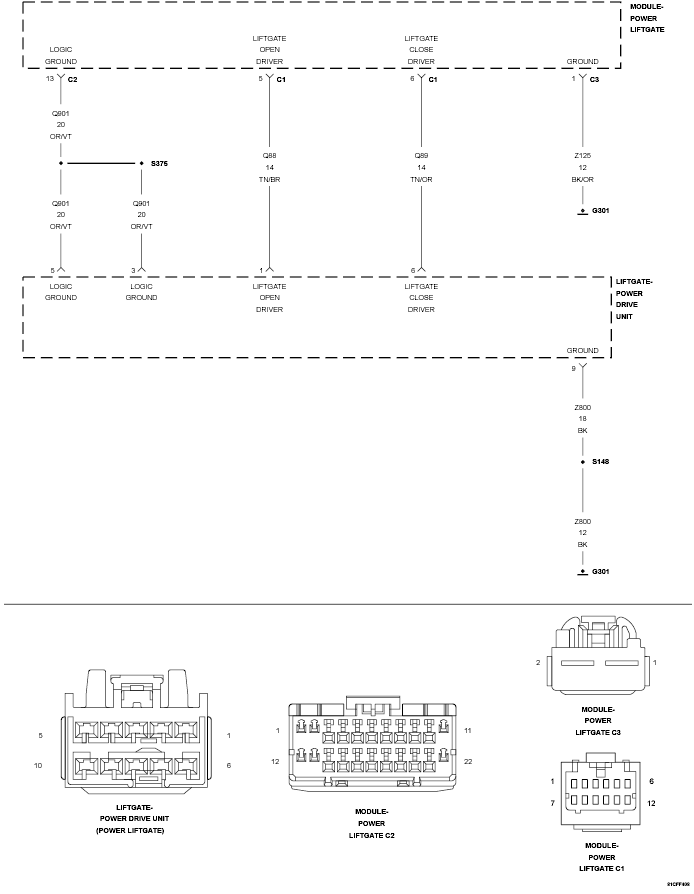

Home › Jeep › 2009 › Commander Overland, RWD › Repair and Diagnosis › Body & Frame › Door Locks › Power Liftgate Module (PLGM) - Electrical Diagnostics › DTC Troubleshooting › B188F-Power Liftgate Control Circuit 1 Open › Circuit Schematic
