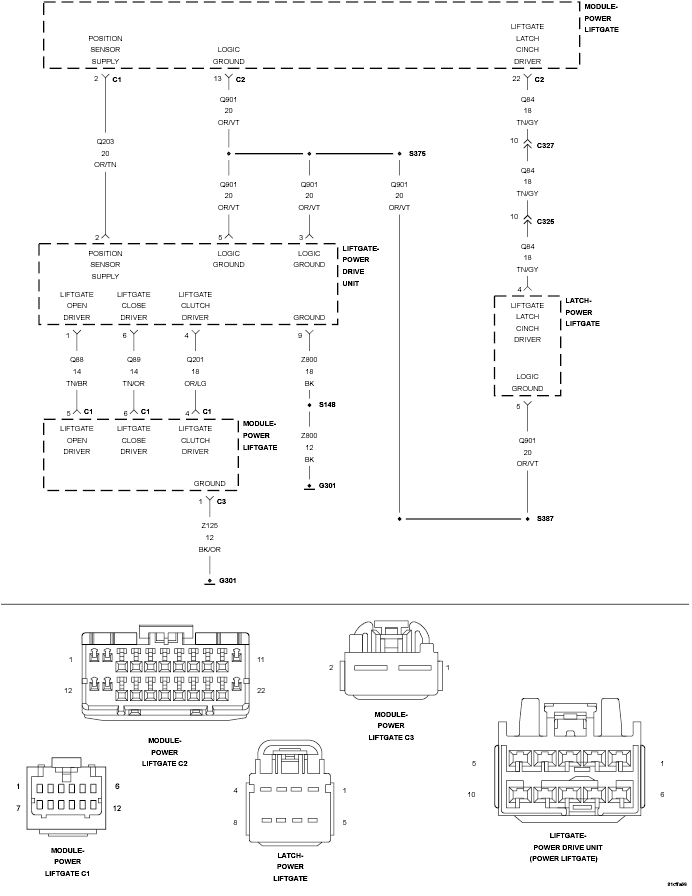

Home › Jeep › 2009 › Commander Overland, RWD › Repair and Diagnosis › Body & Frame › Door Locks › Power Liftgate Module (PLGM) - Electrical Diagnostics › DTC Troubleshooting › B196C-Power Liftgate Close Direction Excessive Position Sensor Counts › Circuit Schematic
