B1D7A-Seat Recliner Position Sensor Circuit High: Notes

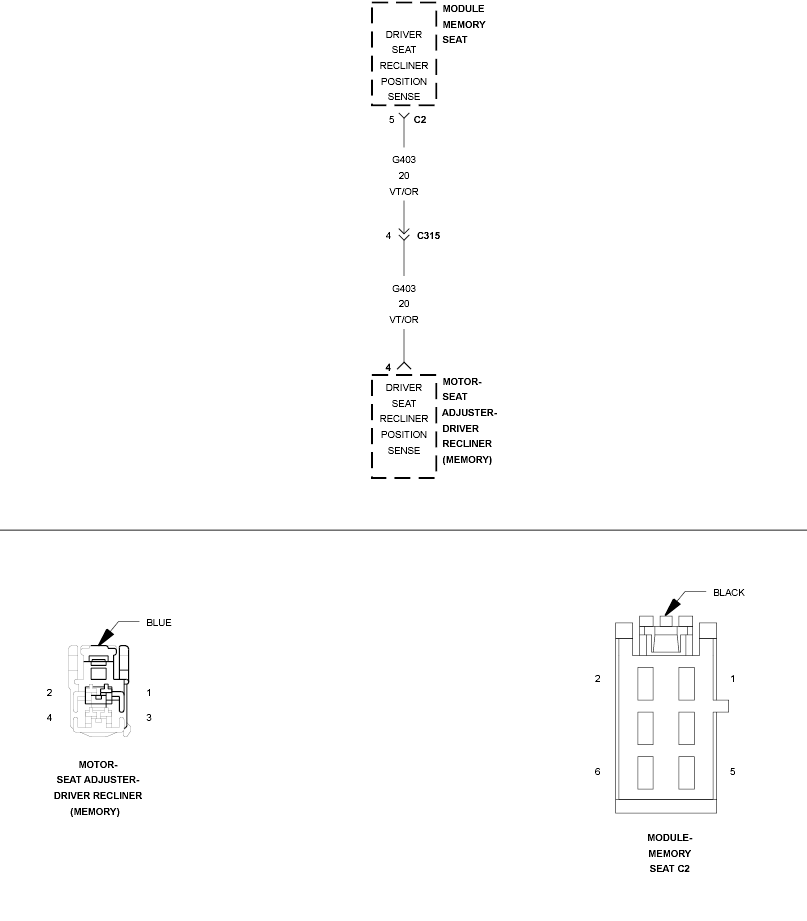

Fig 1: Driver Seat Recliner Position Sense Circuit Schematic
GC0097031Courtesy of CHRYSLER LLC
