B1D83-Seat Rear Vertical Motor Control Circuit Performance: Notes

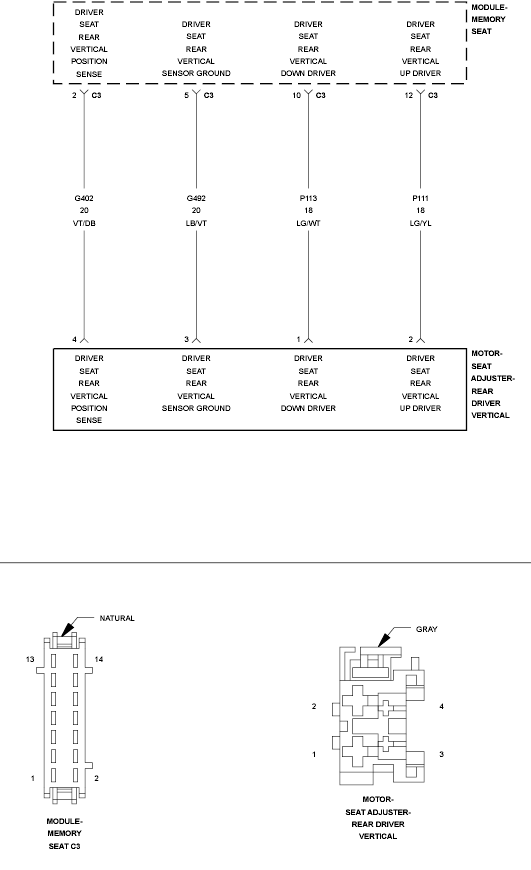

Fig 1: Driver Seat Rear Vertical Position Sense Circuit Schematic
GC0097044Courtesy of CHRYSLER LLC
