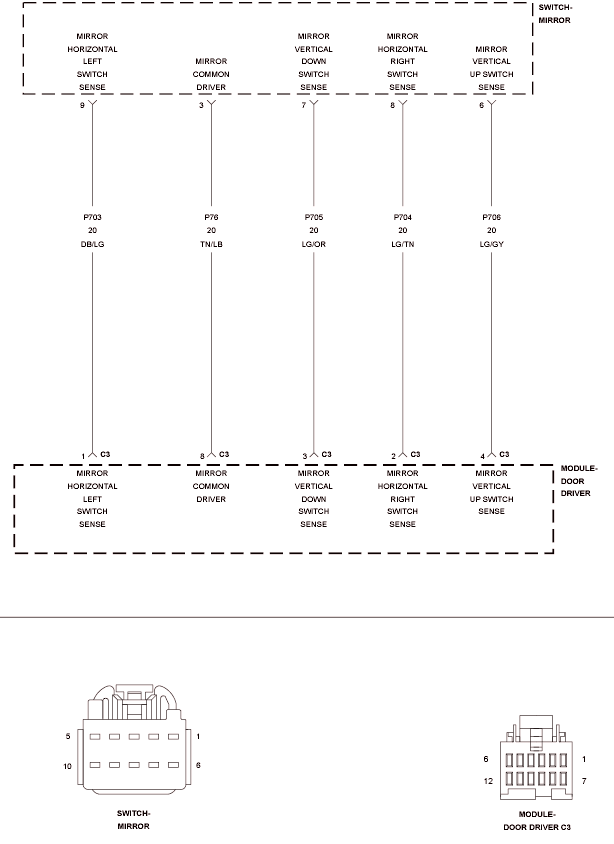

Home › Jeep › 2009 › Commander Overland, RWD › Repair and Diagnosis › Body & Frame › Windows › Driver Door Module (DDM) - Electrical Diagnostics › DTC Troubleshooting › B1D04-Mirror Adjust Switch Input Circuit/Performance › Circuit Schematic
