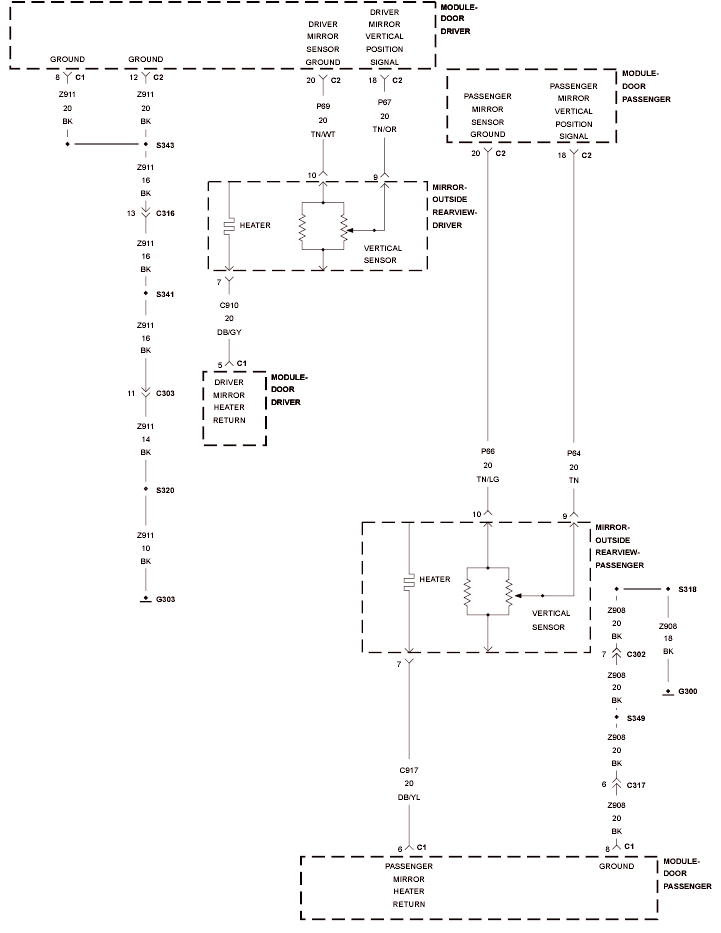

Home › Jeep › 2009 › Commander Overland, RWD › Repair and Diagnosis › Body & Frame › Windows › Driver Door Module (DDM) - Electrical Diagnostics › DTC Troubleshooting › B1D0D-Driver Mirror Vertical Position Sensor Input Circuit High › Circuit Schematic
