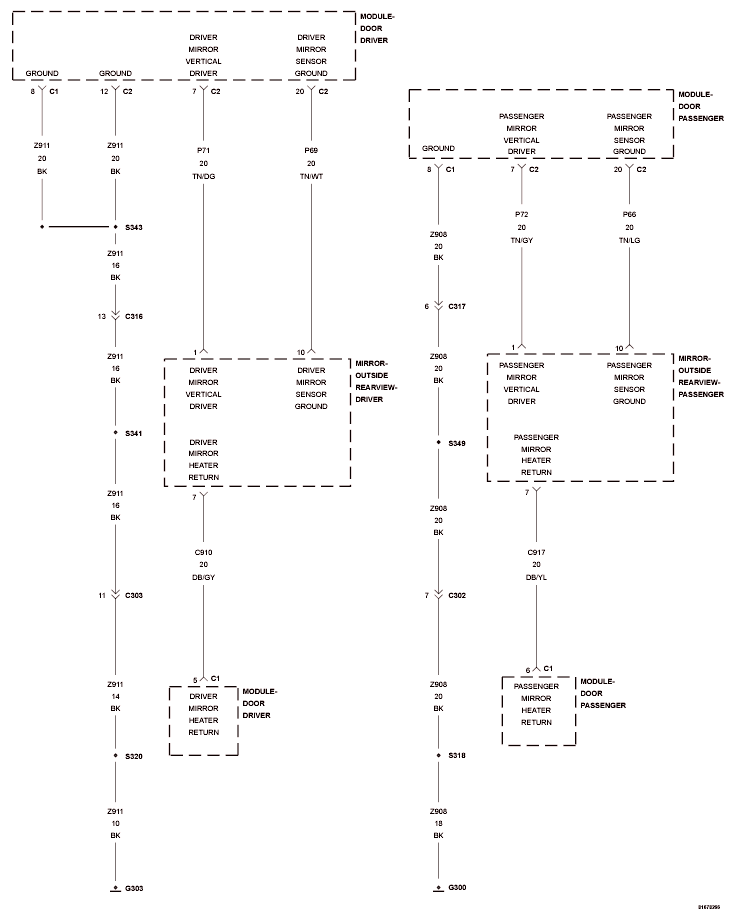

Home › Jeep › 2009 › Commander Overland, RWD › Repair and Diagnosis › Body & Frame › Windows › Driver Door Module (DDM) - Electrical Diagnostics › DTC Troubleshooting › B1D1F-Driver Mirror Vertical Motor Control Circuit Low › Circuit Schematic
