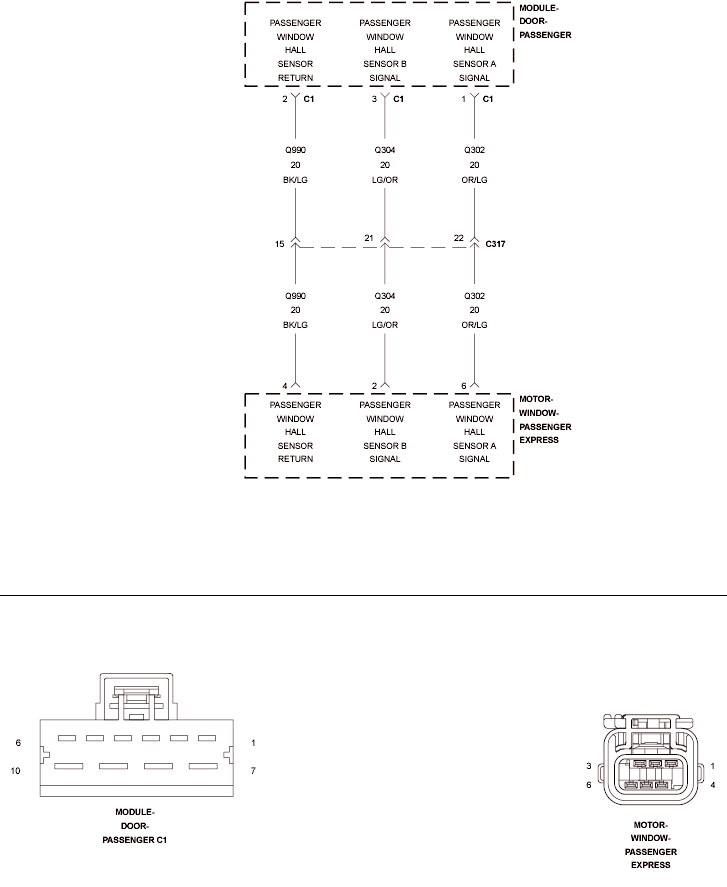

Home › Jeep › 2009 › Commander Overland, RWD › Repair and Diagnosis › Body & Frame › Windows › Passenger Door Module (PDM) - Electrical Diagnostics › DTC Troubleshooting › B1865-Passenger Window Position Sensor Circuit Performance › Circuit Schematic
