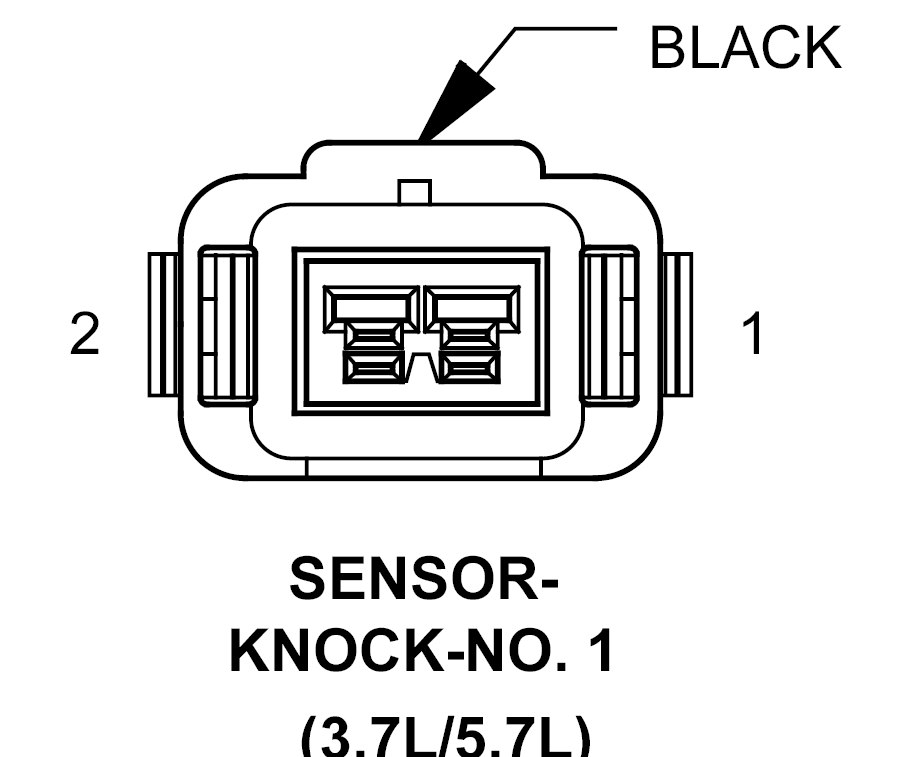

Knock Sensor 1 (3.7L/5.7L) Connector End View

SENSOR-KNOCK-NO. 1 - BLACK 2-WAY(3.7L/5.7L)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K42 20DB/OR	KNOCK SENSOR NO. 1 SIGNAL
2	K942 20BR/LG	KNOCK SENSOR NO. 1 RETURN
