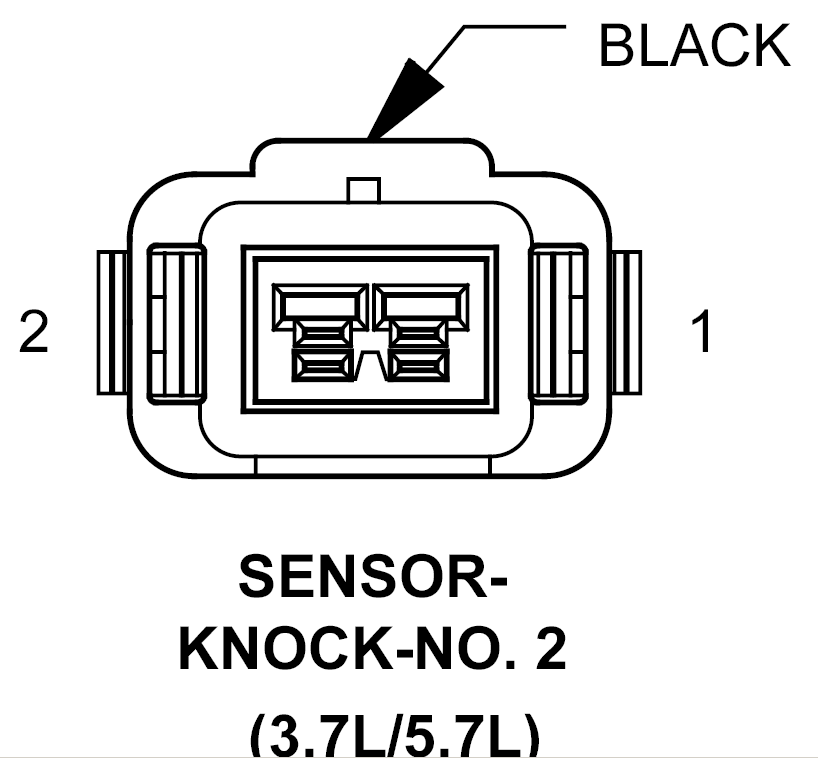

Knock Sensor 2 (3.7L/5.7L) Connector End View

SENSOR-KNOCK-NO. 2 - BLACK 2-WAY(3.7L/5.7L)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K242 20OR/WT	KNOCK SENSOR NO. 2 SIGNAL
2	K924 20WT/BR	KNOCK SENSOR NO. 2 RETURN
