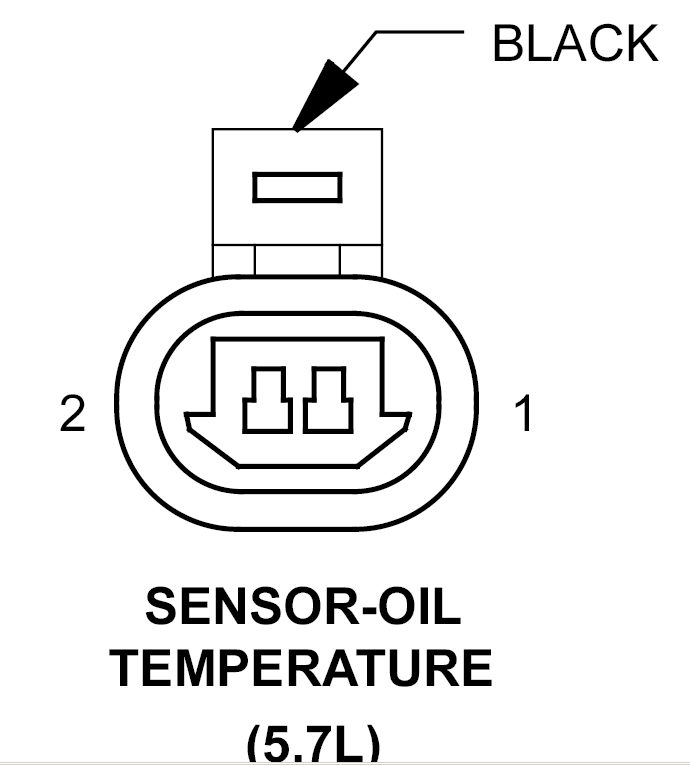

Oil Temperature Sensor (5.7L) Connector End View

SENSOR-OIL TEMPERATURE - BLACK 2-WAY(5.7L)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	G224 20VT/YL	ENGINE OIL TEMPERATURE SIGNAL
2	K900 20DB/DG	SENSOR GROUND
