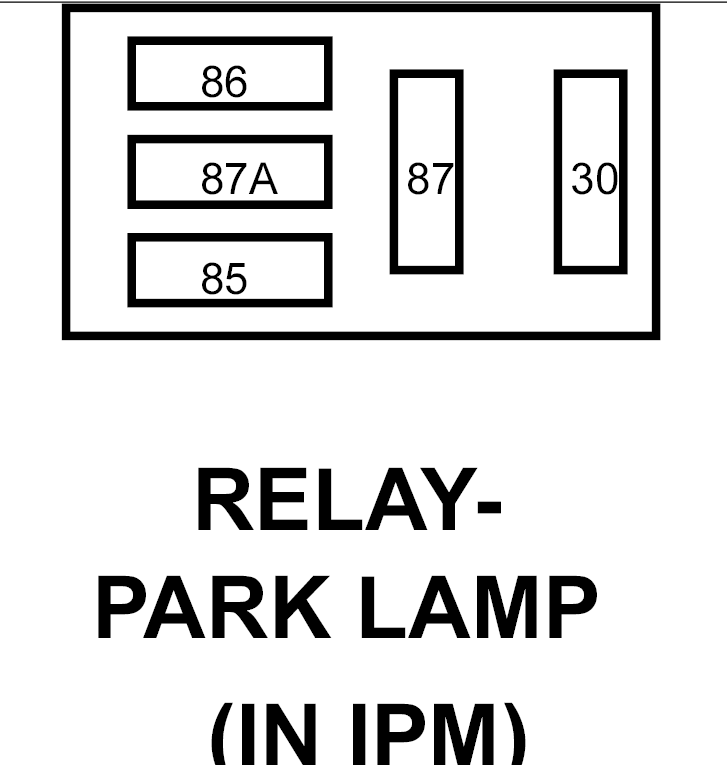

Park Lamp Relay Connector End View

RELAY-PARK LAMP - 0-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	INTERNAL	PARK LAMP RELAY OUTPUT
85	INTERNAL	PARK LAMP RELAY CONTROL
86	INTERNAL	B(+)
87	INTERNAL	B(+)
87A	Z387 20BK	GROUND
