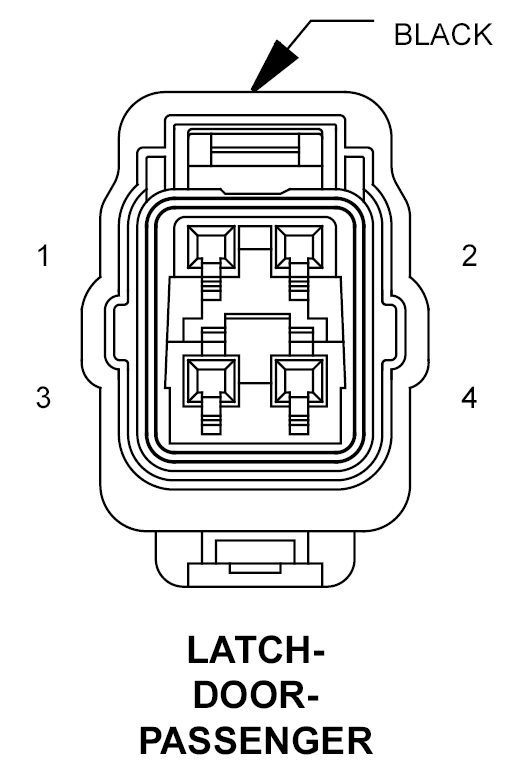

Passenger Door Latch Connector End View
LATCH-DOOR-PASSENGER - BLACK 4-WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
G74 20VT/WT |
RIGHT FRONT DOOR AJAR SWITCH SENSE (LHD) |
| 1 |
G75 20WT |
LEFT FRONT DOOR AJAR SWITCH SENSE (RHD) |
| 2 |
Z908 20BK |
GROUND |
| 3 |
P792 18LG/TN |
PASSENGER DOORS UNLOCK RELAY OUTPUT |
| 4 |
P778 18LG/LB |
DOOR LOCK RELAY OUTPUT |
