SENSOR, Camshaft Position: Installation: Installation

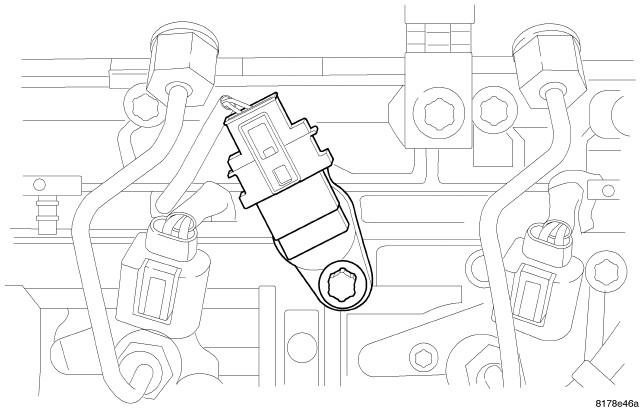

Fig 1: Locating Camshaft Position Sensor

Courtesy of CHRYSLER LLC

1. Install camshaft position sensor and tighten bolt to 8 N.m (71 in. lbs.).
2. Reconnect electrical connector.
3. Install engine cover.
4. Reconnect negative battery cable.
