SENSOR, Crankshaft Position: Installation: 3.7L

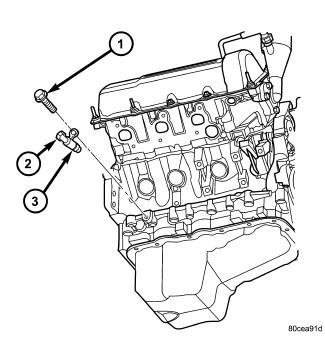

Fig 1: Locating CKP Sensor - 3.7L

Courtesy of CHRYSLER LLC

1. Clean out machined hole in engine block.
2. Apply a small amount of engine oil to sensor o-ring.
3. Install sensor (3) into engine block with a slight rocking and twisting action.
   CAUTION: Before tightening the CKP sensor mounting bolt, be sure the sensor is completely flush to the cylinder block. If the CKP sensor is not flush, damage to the sensor mounting tang may result.
4. Install mounting bolt (1) tighten to 28 N.m (21 ft. lbs.) torque.
5. Connect electrical connector to sensor.
6. Lower vehicle.
