Specifications
›
Engine Firing Order - 4.7L
Engine Firing Order - 4.7L

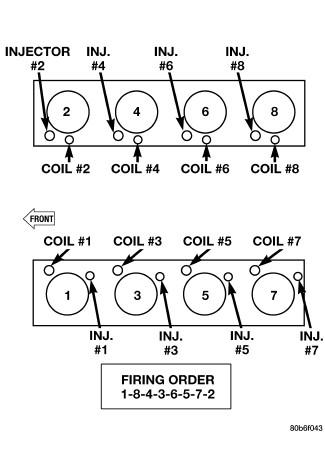

Fig 1: Identifying Engine Firing Order - 4.7L
Courtesy of CHRYSLER LLC
