P0032-O2 Sensor 1/1 Heater Circuit High: Notes

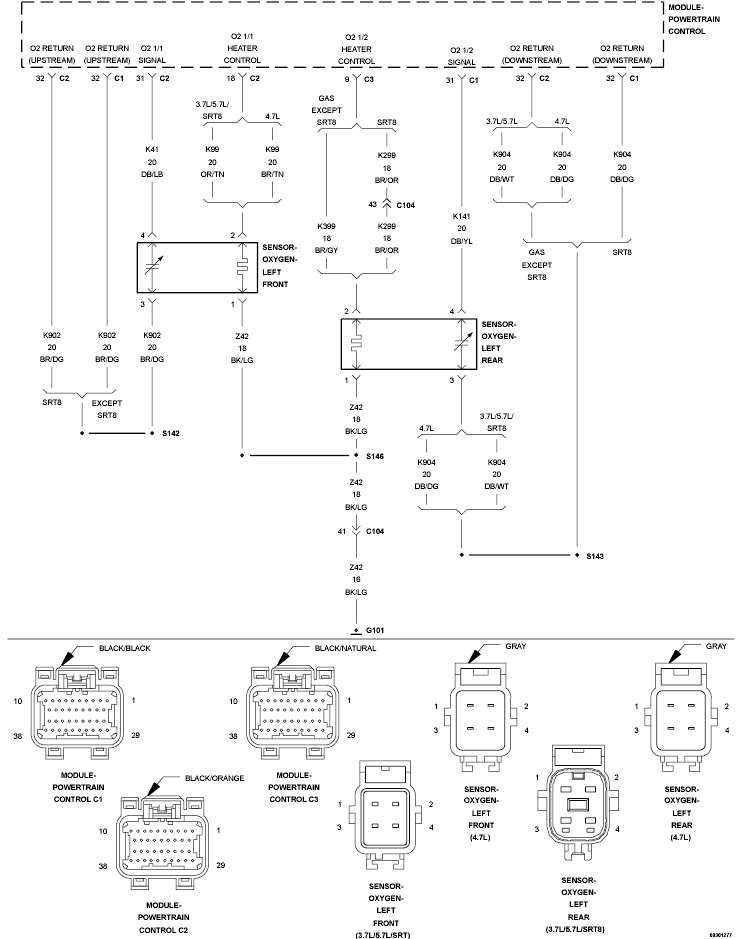

Fig 1: O2 Sensor Heater Circuit

GC0132680

Courtesy of CHRYSLER LLC
