Home › Jeep › 2009 › Commander Overland, RWD › Repair and Diagnosis › Engine Performance › System › DTCS P000B To P0123 - NGC › P0057-O2 Sensor 2/2 Heater Circuit Low › Notes

P0057-O2 Sensor 2/2 Heater Circuit Low: Notes

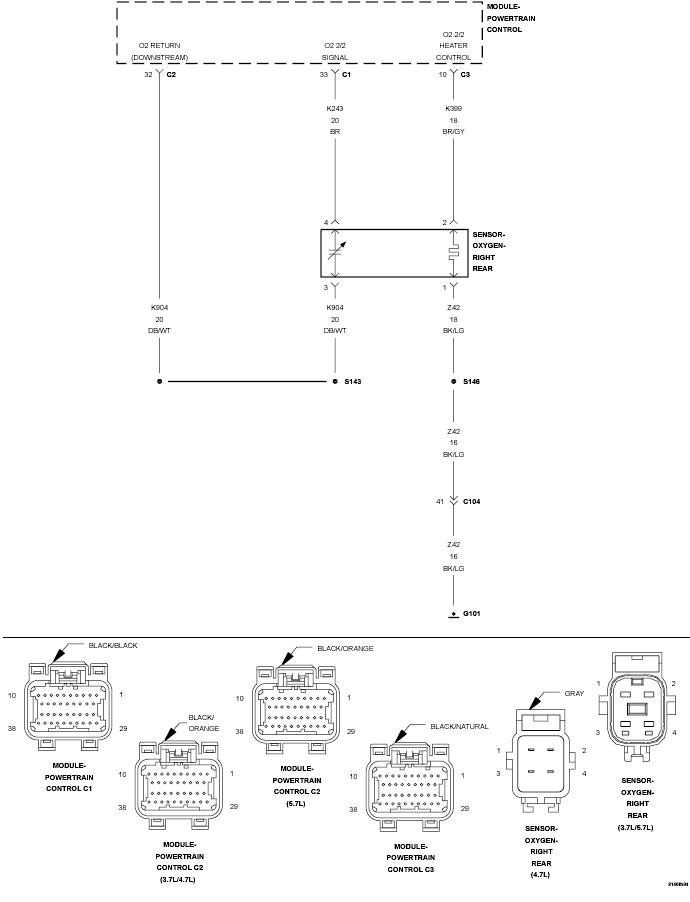

Fig 1: O2 Sensor Heater Circuit
GC0132695Courtesy of CHRYSLER LLC
