Home › Jeep › 2009 › Commander Overland, RWD › Repair and Diagnosis › Engine Performance › System › DTCS P000B To P0123 - NGC › P0121-Throttle Position Sensor 1 Performance › Notes

P0121-Throttle Position Sensor 1 Performance: Notes

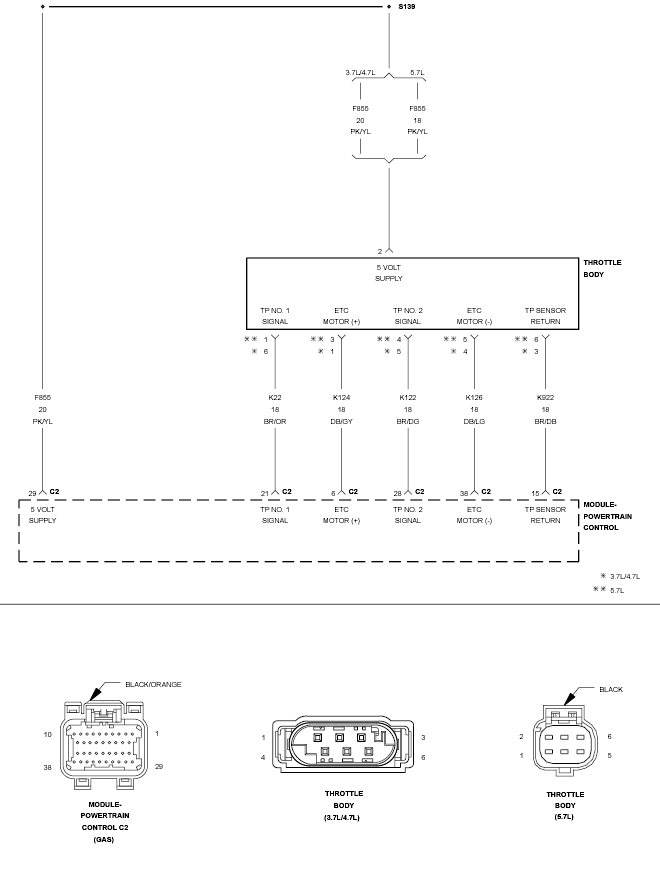

Fig 1: Throttle Position Sensor Circuit
GC0132700Courtesy of CHRYSLER LLC
