P0340-Camshaft Position Sensor Circuit: Notes

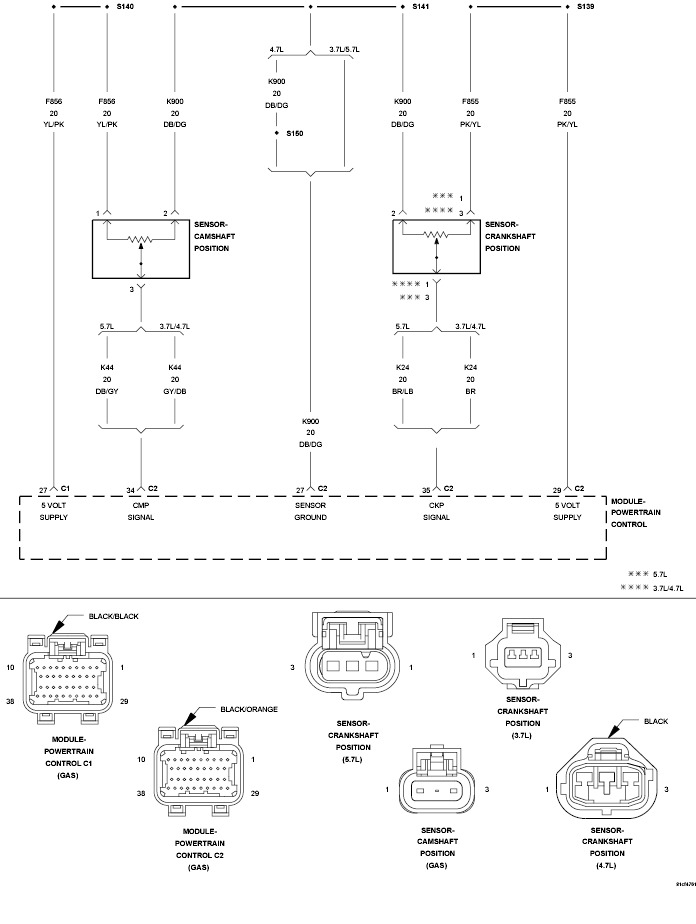

Fig 1: Crankshaft/Camshaft Sensor Circuit
GC0132679Courtesy of CHRYSLER LLC
