DTCS P3497 To U1418 - NGC
›
U0121-Lost Communication With Anti-Lock Brake Module
›
Circuit Schematic
Circuit Schematic

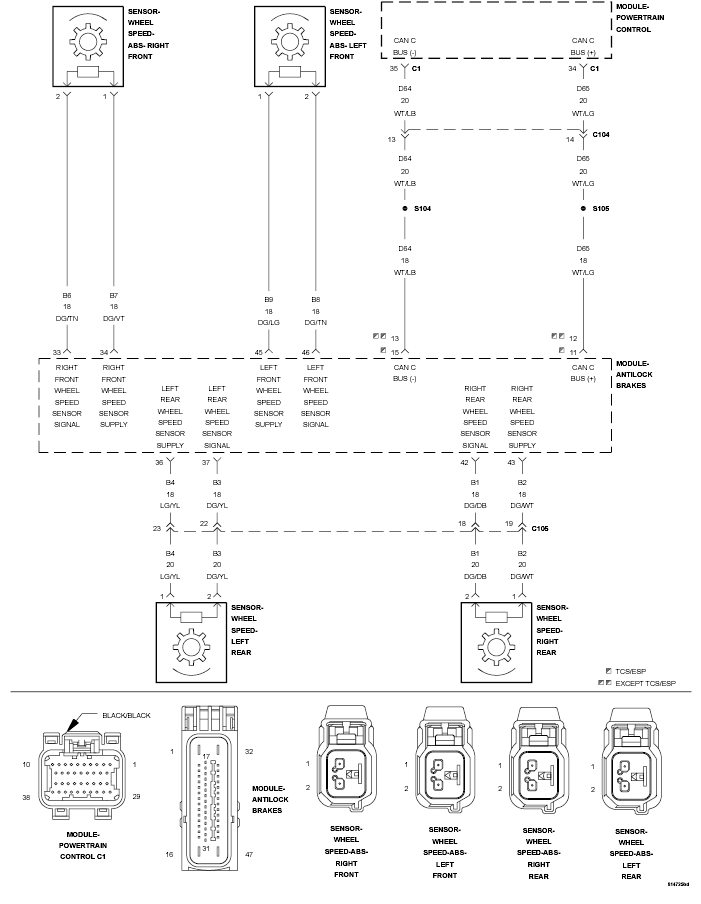

Fig 1: Anti-Lock Brake Module Schematic
Courtesy of CHRYSLER LLC
