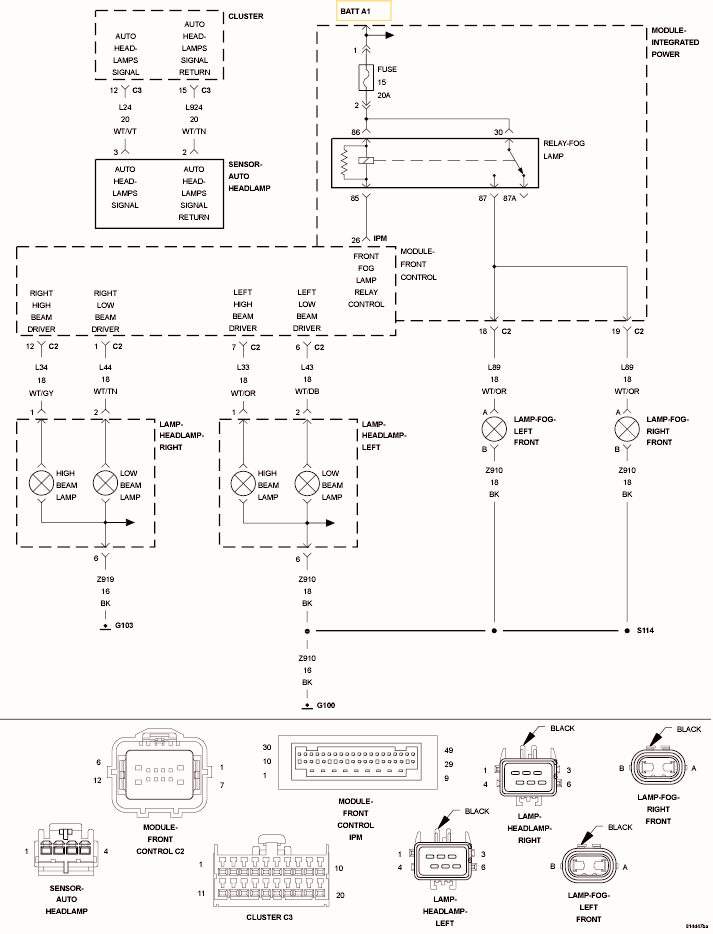

Home › Jeep › 2009 › Commander Overland, RWD › Repair and Diagnosis › Engine Performance › Tune-Up › Front Control Module (FCM) - Electrical Diagnostics › DTC Troubleshooting › B1633-Left Hi Beam Control Circuit Low › Circuit Schematic
