Left Side

NOTE: All torques should be done with vehicle on the ground with full vehicle weight.

Fig 1: Suspension Arms

Courtesy of CHRYSLER LLC

1 - NUT

2 - UPPER SUSPENSION ARM

3 - UPPER SPRING ISOLATOR

4 - JOUNCE BUMPER RETAINER

5 - BOLT

6 - JOUNCE BUMPER

7 - UPPER FLAG BOLT

8 - LOWER FLAG BOLT

9 - LOWER SUSPENSION ARM

Position the lower suspension arm (9) in the frame rail.
Install the frame rail bracket bolt (8) and nut (1) tighten to176 N.m (130 ft. lbs.).

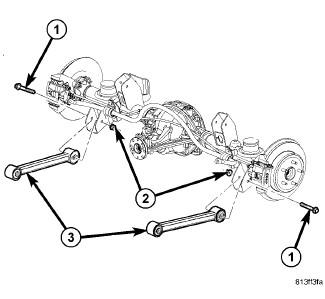

Fig 2: Lower Suspension Arm
Courtesy of CHRYSLER LLC

1 - BOLT

2 - NUT

3 - LOWER SUSPENSION ARM
Position the lower suspension arm (3) in the axle bracket.
Install the axle bracket bolt (1) and nut (2) Tighten to 210 N.m (155 ft. lbs.).
Install the fuel tank. Refer to Fuel System/Fuel Delivery/TANK, Fuel - Installation .
Remove the supports and lower the vehicle.
