Left Side

NOTE: All torques should be done with vehicle on the ground with full vehicle weight.

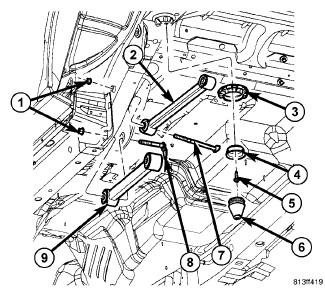

Fig 1: Suspension Arms

Courtesy of CHRYSLER LLC

1 - NUT

2 - UPPER SUSPENSION ARM

3 - UPPER SPRING ISOLATOR

4 - JOUNCE BUMPER RETAINER

5 - BOLT

6 - JOUNCE BUMPER

7 - UPPER FLAG BOLT

8 - LOWER FLAG BOLT

9 - LOWER SUSPENSION ARM

Install the mounting bolt (7) and nut (1) tighten to 129 N.m (95 ft. lbs.).

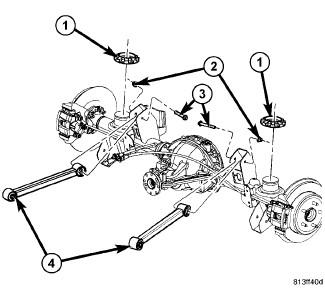

Fig 2: Upper Suspension Arm

Courtesy of CHRYSLER LLC

1 - ISOLATOR

2 - NUT

3 - BOLT

4 - UPPER SUSPENSION ARM

Position the upper suspension arm (4) in the axle bracket.
Install the mounting bolt (3) and nut (2) tighten to 136 N.m (100 ft. lbs.).
Raise the fuel tank back into place and secure. Refer to Fuel System/Fuel Delivery/TANK, Fuel - Installation .
Remove the supports and lower the vehicle.
