3.7L Engine

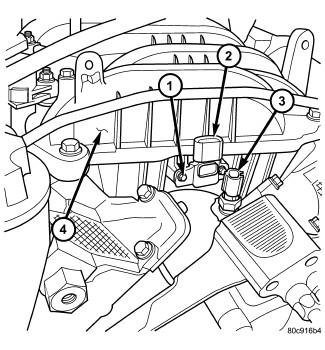

Fig 1: MAP SENSOR / Engine Coolant TemperatureSENSOR - 3.7L
GC0104063Courtesy of CHRYSLER LLC
  1. Partially drain the cooling system. See Cooling - Standard Procedure .
  2. Disconnect the electrical connector from the sensor (3).
  3. Remove the sensor from the intake manifold.
