P1593-Speed Control Switch 1/2 Stuck: Notes

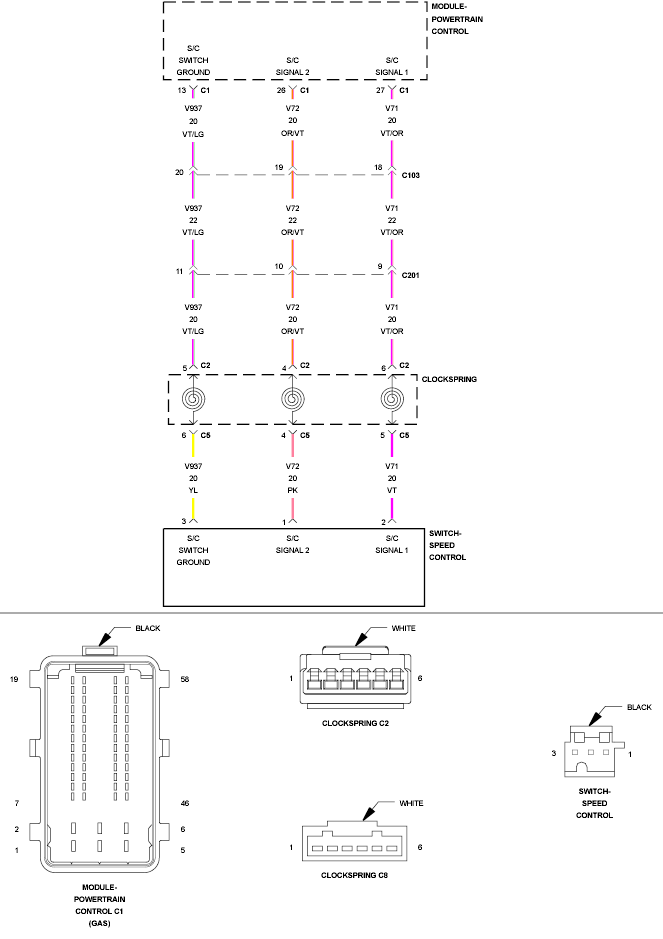

Fig 1: Speed Control Switch Circuit
GC0099970Courtesy of CHRYSLER LLC
