P0346-Camshaft Position Sensor Circuit Performance-Bank 1 Sensor 1: Notes

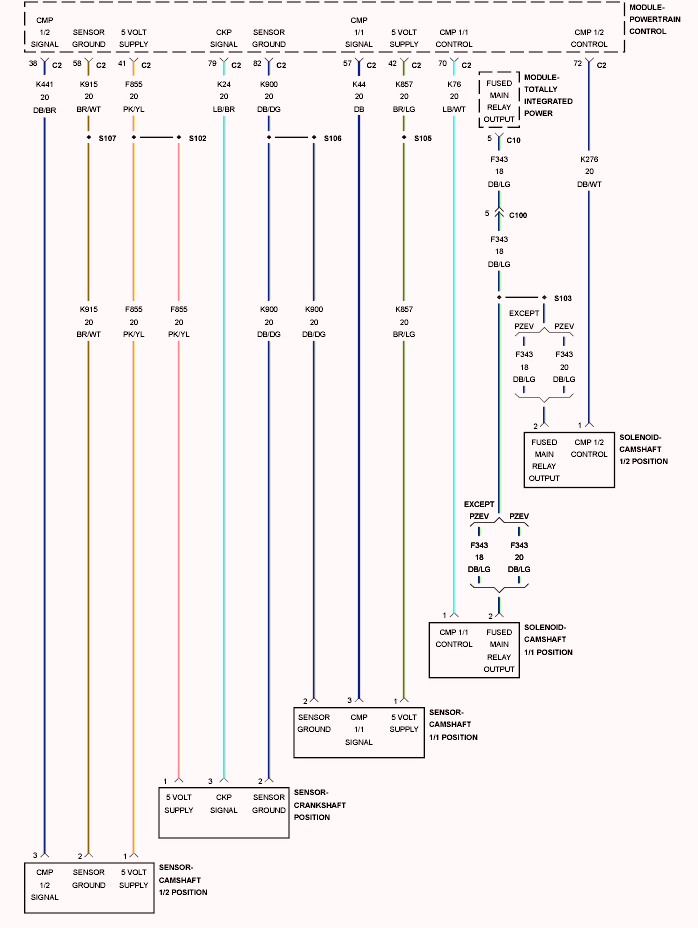

Fig 1: CMP Sensor Circuit
GC0099712Courtesy of CHRYSLER LLC
