P1501-Vehicle Speed Sensor 1/2 Correlation - Drive Wheels: Notes

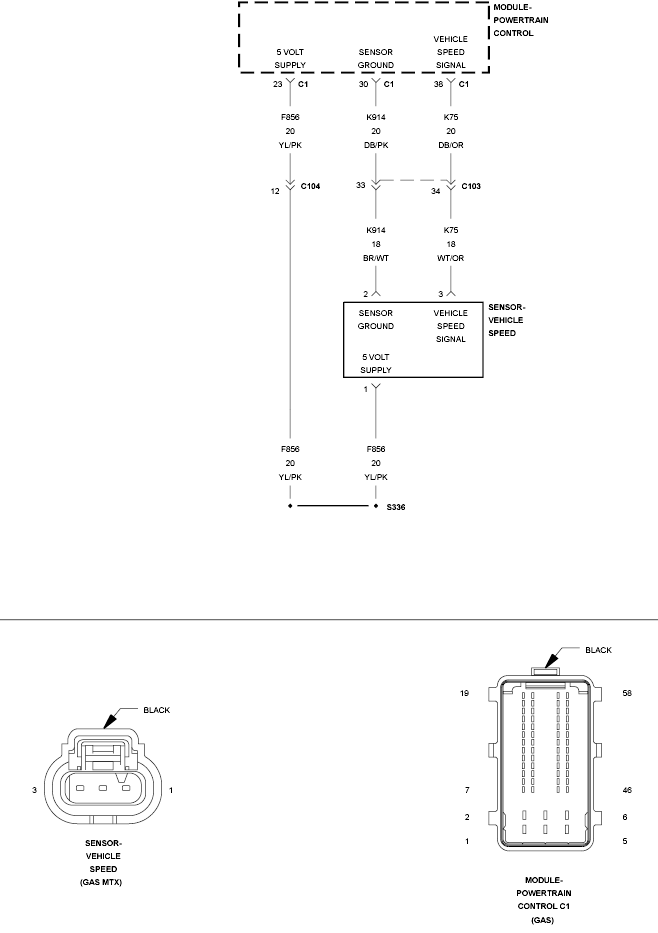

Fig 1: Vehicle Speed Sensor Circuit
GC0099931Courtesy of CHRYSLER LLC
