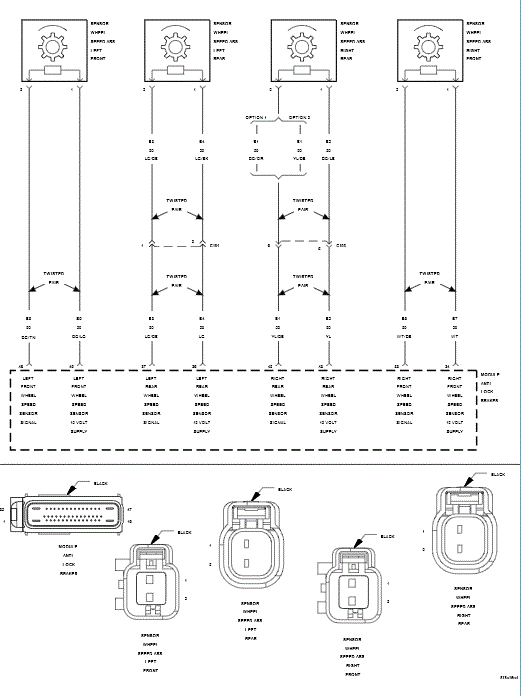

Home › Jeep › 2009 › Compass Limited, EDG, Standard › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System - Electrical Diagnostics › DTC Troubleshooting › C1039-Rear Wheel Speed Sensor Circuit High › Circuit Schematic
