Valve Timing Verification

CAUTION: Painted or colored chain links are used during initial engine assembly and can not be relied upon for valve timing verification. These markings are in different locations for early production, late production and service parts. Only use TDC marks, cylinder head cover sealing surface and camshaft sprocket marks to verify valve timing or engine damage may result.

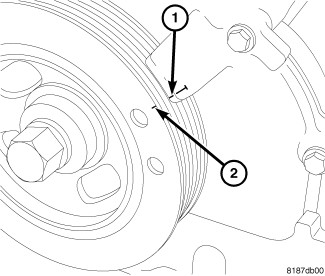

Fig 1: TDC
GC0084131Courtesy of CHRYSLER LLC
  1. Remove engine cover.
  2. Remove cylinder head cover. See Engine/Cylinder Head/COVER(S), Cylinder Head - Removal .
  3. Set engine to TDC (1, 2).

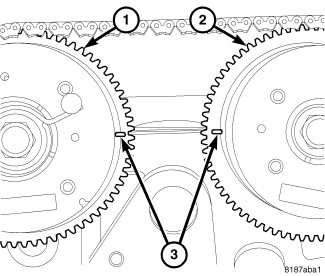

    Fig 2: Camshaft Timing
    GC0084080Courtesy of CHRYSLER LLC
  4. The marks on the camshaft sprockets (3) should be in line with the cylinder head cover sealing surface.
  5. Install cylinder head cover. See Engine/Cylinder Head/COVER(S), Cylinder Head - Installation .
  6. Install the engine cover.
