P0202-Fuel Injector 2 Circuit/Open: Notes

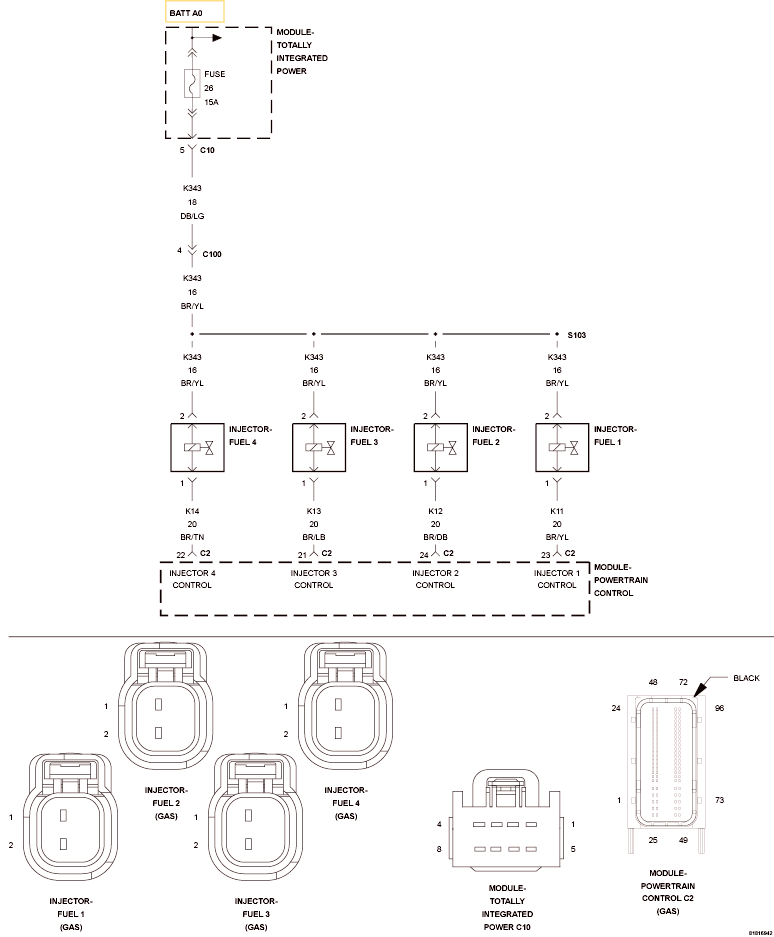

Fig 1: Fuel Injector Circuit
GC0099808Courtesy of CHRYSLER LLC
