P0615-Starter Control Circuit-Open: Notes

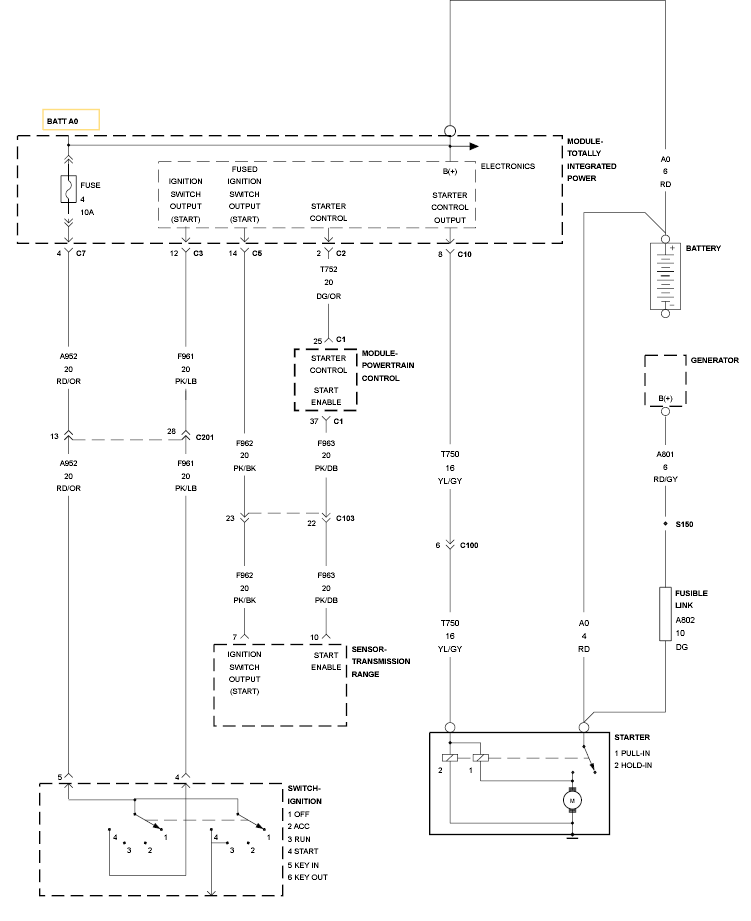

Fig 1: Starter Control Circuit 2
GC0099978Courtesy of CHRYSLER LLC
