B212C-Ignition Run/Start Input Circuit Open: Notes

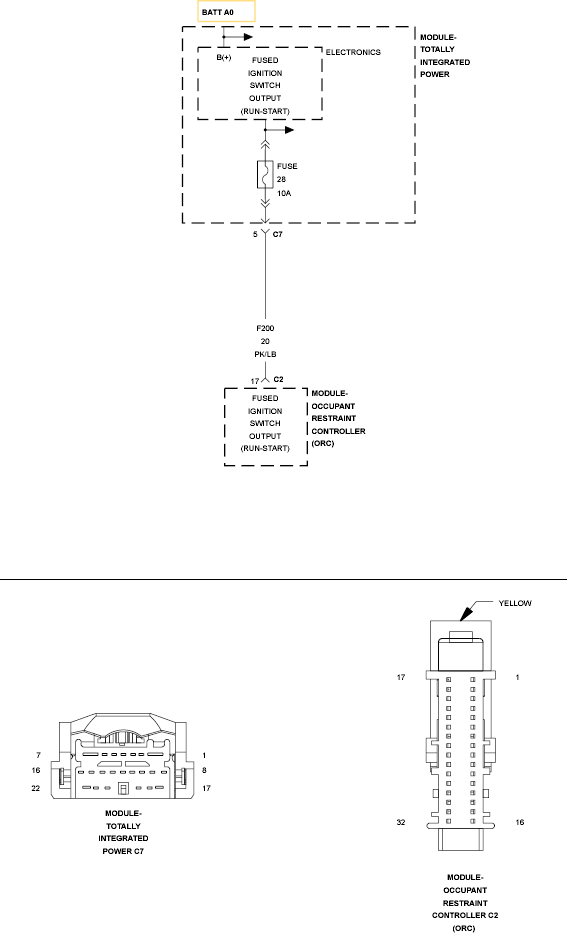

Fig 1: Ignition Run/Start Input Circuit
GC0099302Courtesy of CHRYSLER LLC
