B212D-Ignition Run Only Input Circuit Open: Notes

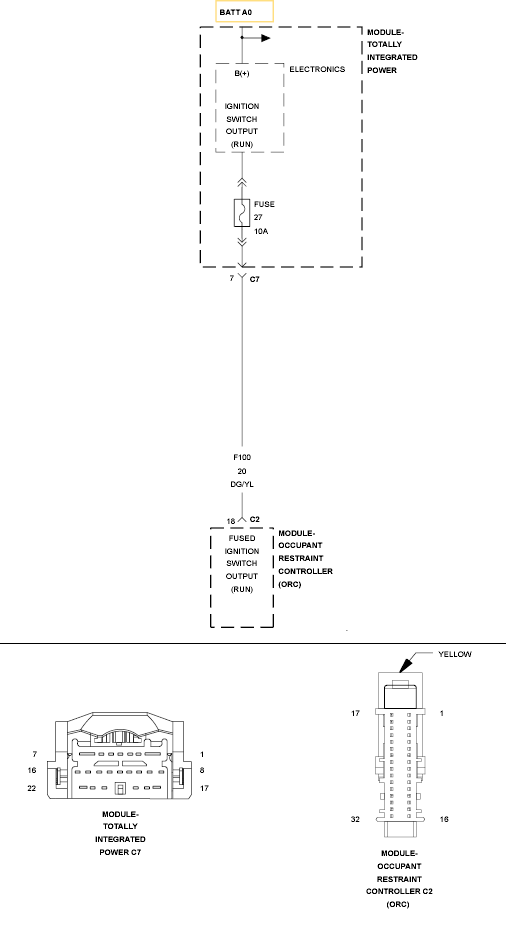

Fig 1: Ignition Run Only Input Circuit
GC0099303Courtesy of CHRYSLER LLC
