Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

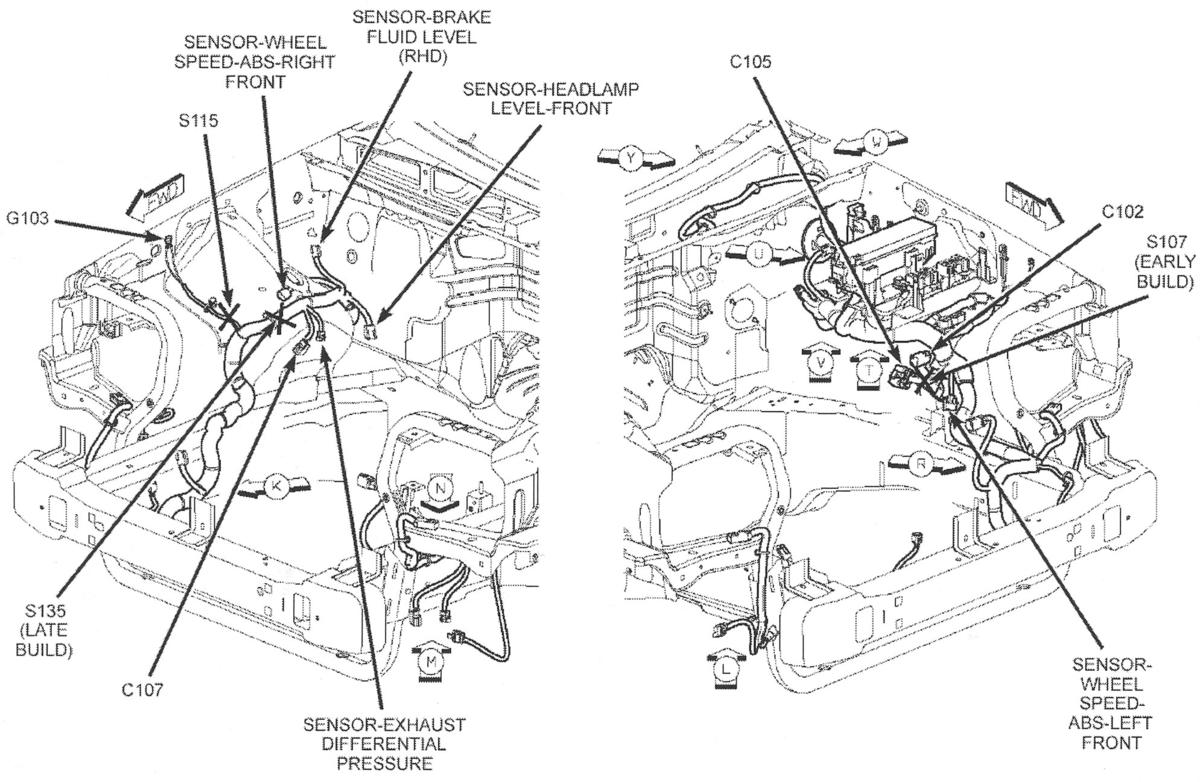

Fig 1: Left/Right Side Of Engine Compartment

G00467403

Courtesy of CHRYSLER LLC

Fig 2: Left Side Of Dash

G00447419

Courtesy of CHRYSLER LLC

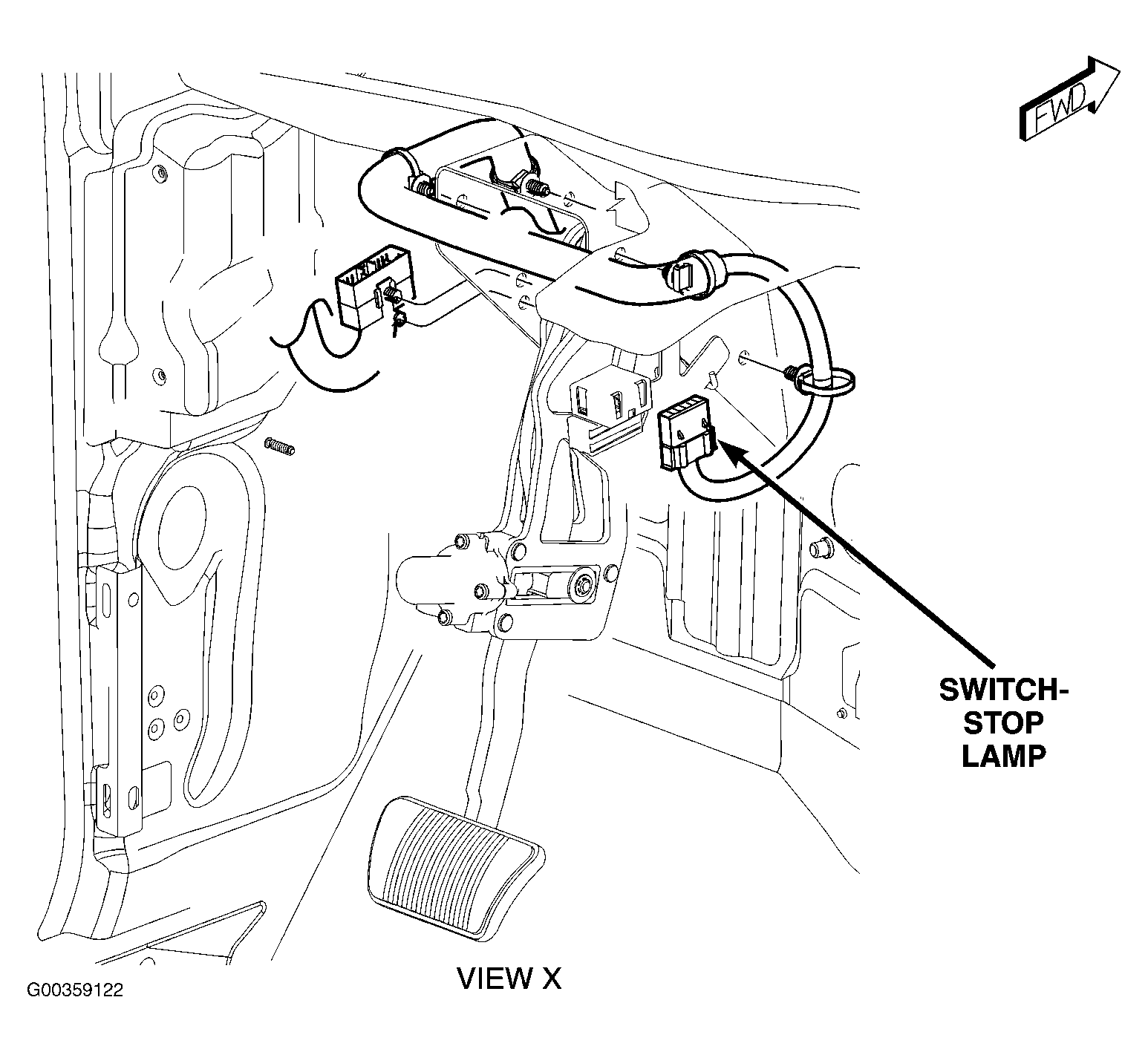

Fig 3: Lower Left Side Of Dash (3.7L & 4.7L)

G00359122

Courtesy of CHRYSLER LLC

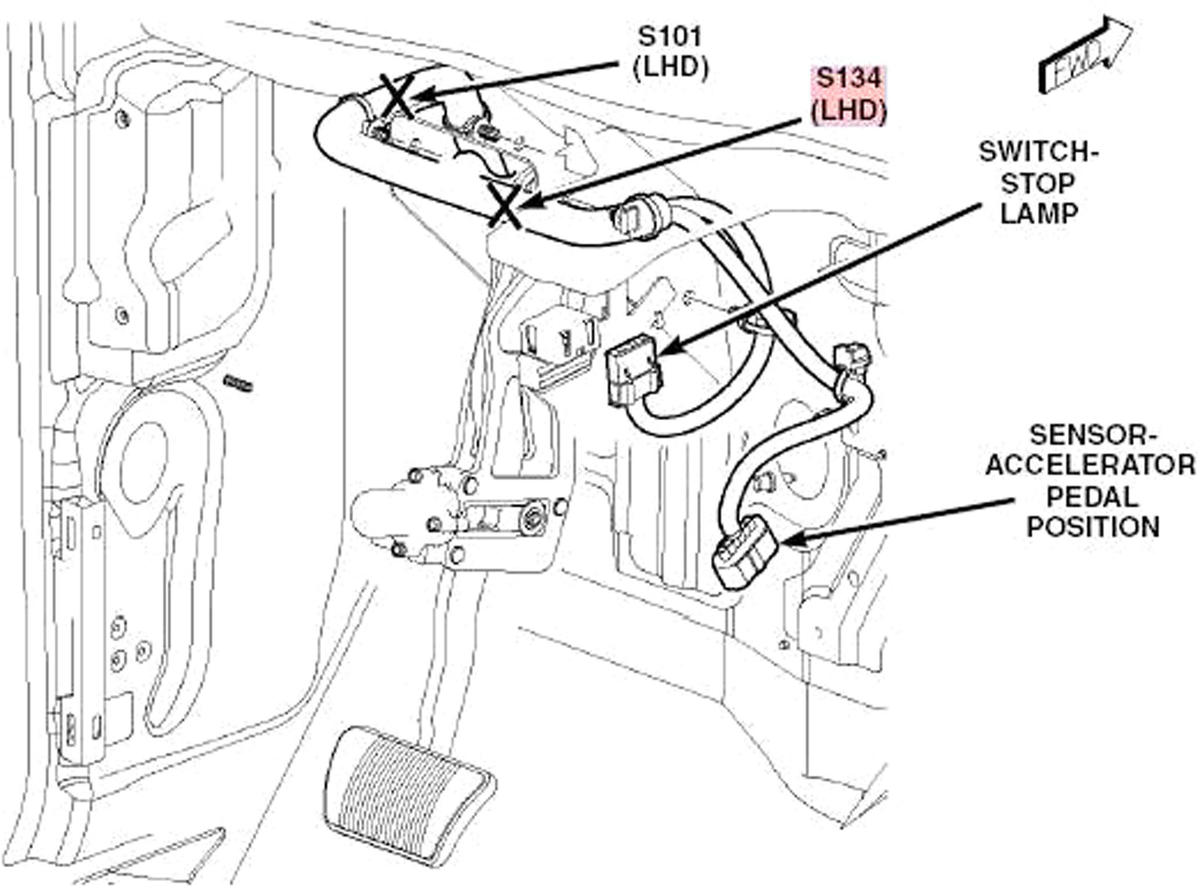

Fig 4: Lower Left Side Of Dash

G00467406

Courtesy of CHRYSLER LLC

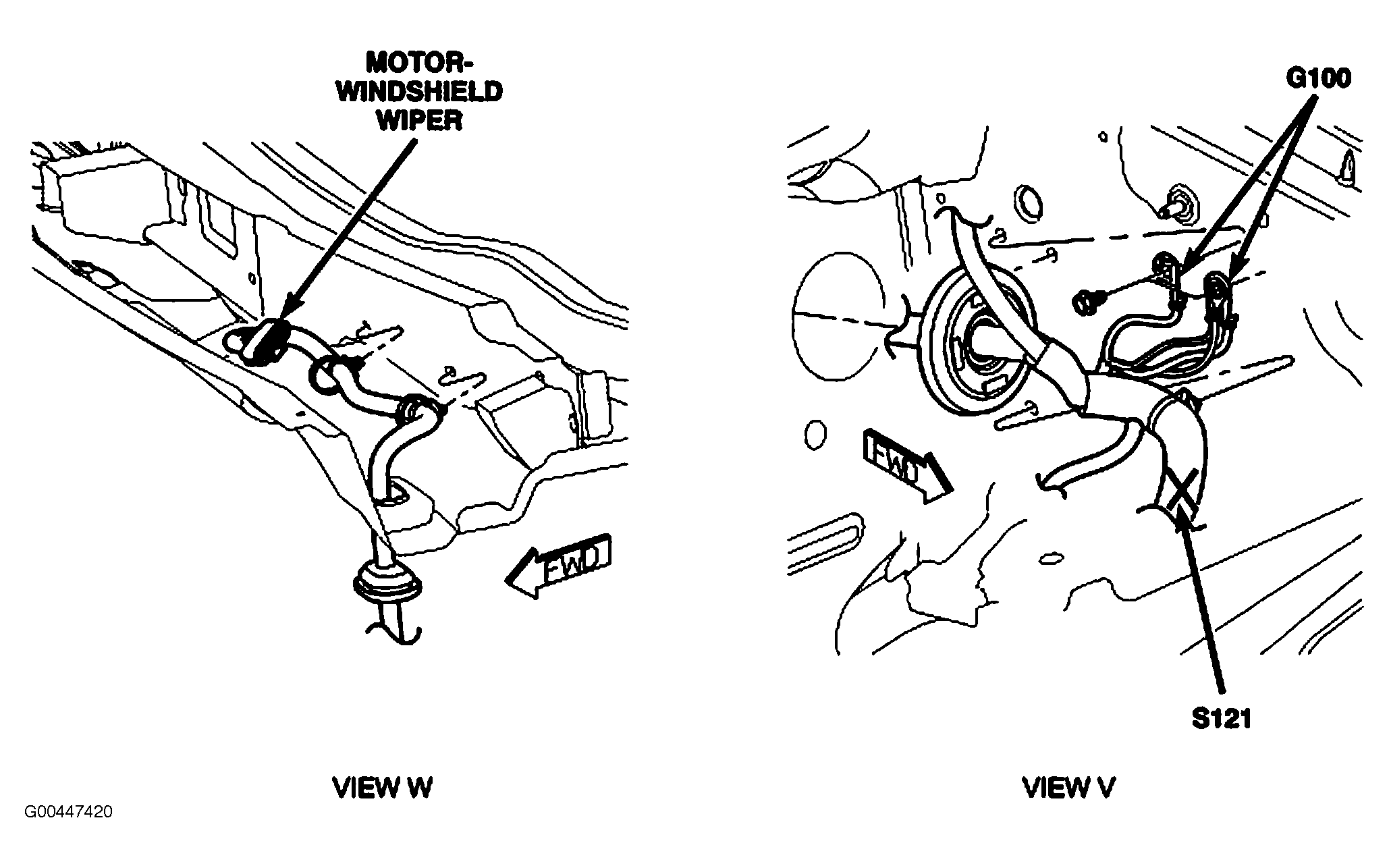

Fig 5: Left Rear Of Engine Compartment

G00447420

Courtesy of CHRYSLER LLC

Fig 6: Left Side Of Engine Compartment

G00467405

Courtesy of CHRYSLER LLC

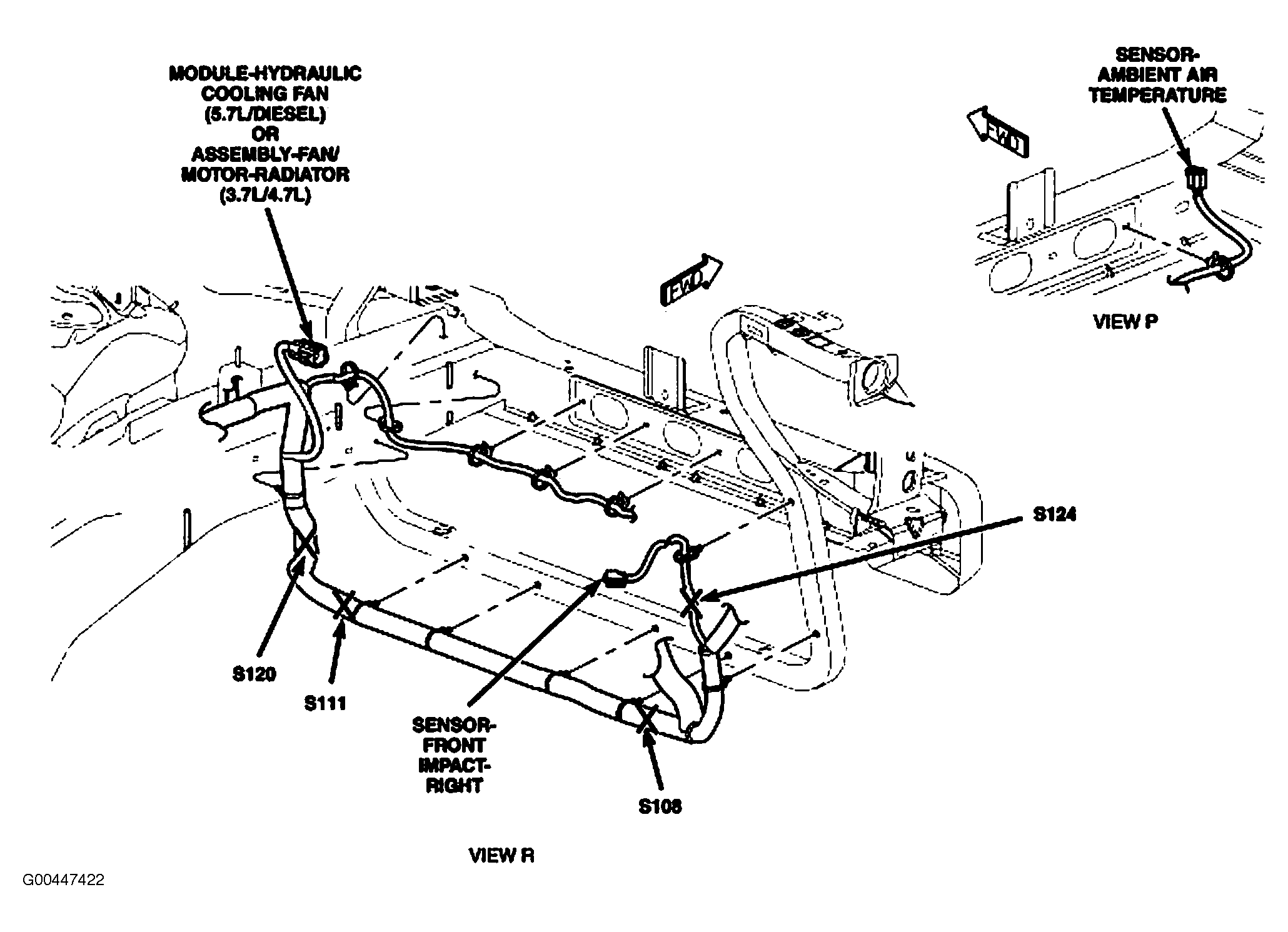

Fig 7: Front Of Engine Compartment

G00447422

Courtesy of CHRYSLER LLC

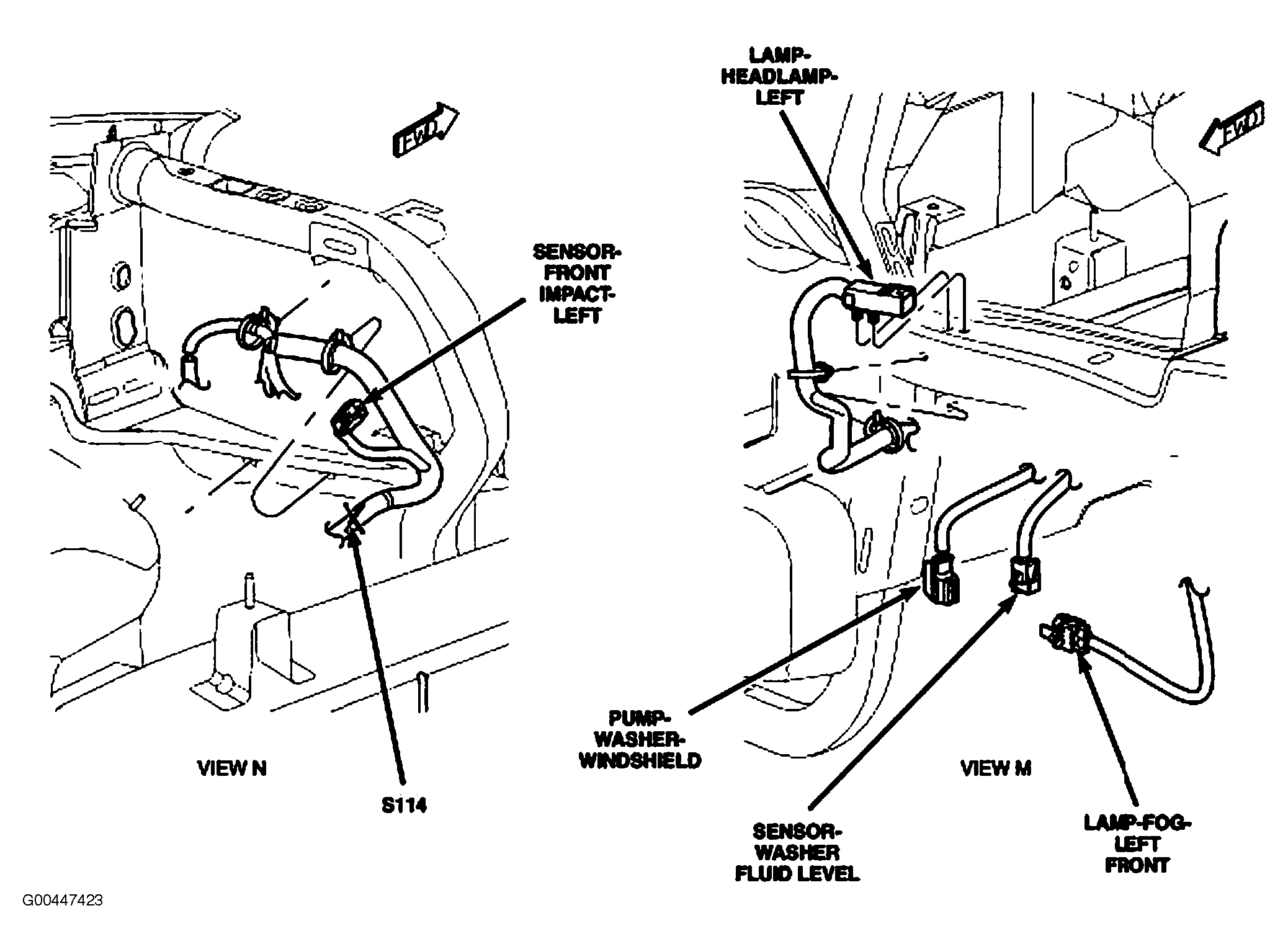

Fig 8: Left Front Of Engine Compartment

G00447423

Courtesy of CHRYSLER LLC

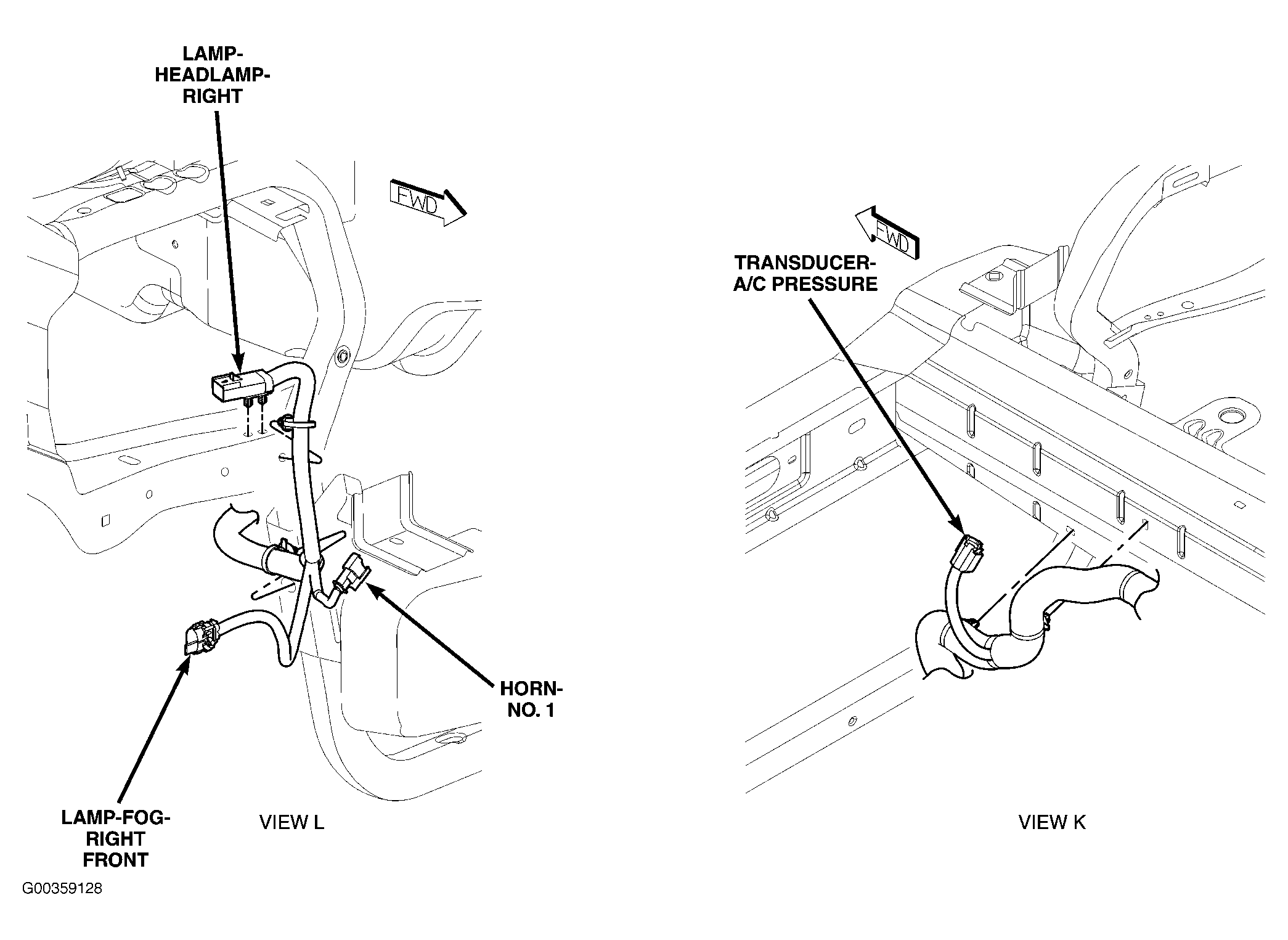

Fig 9: Right Front Of Engine Compartment

G00359128

Courtesy of CHRYSLER LLC

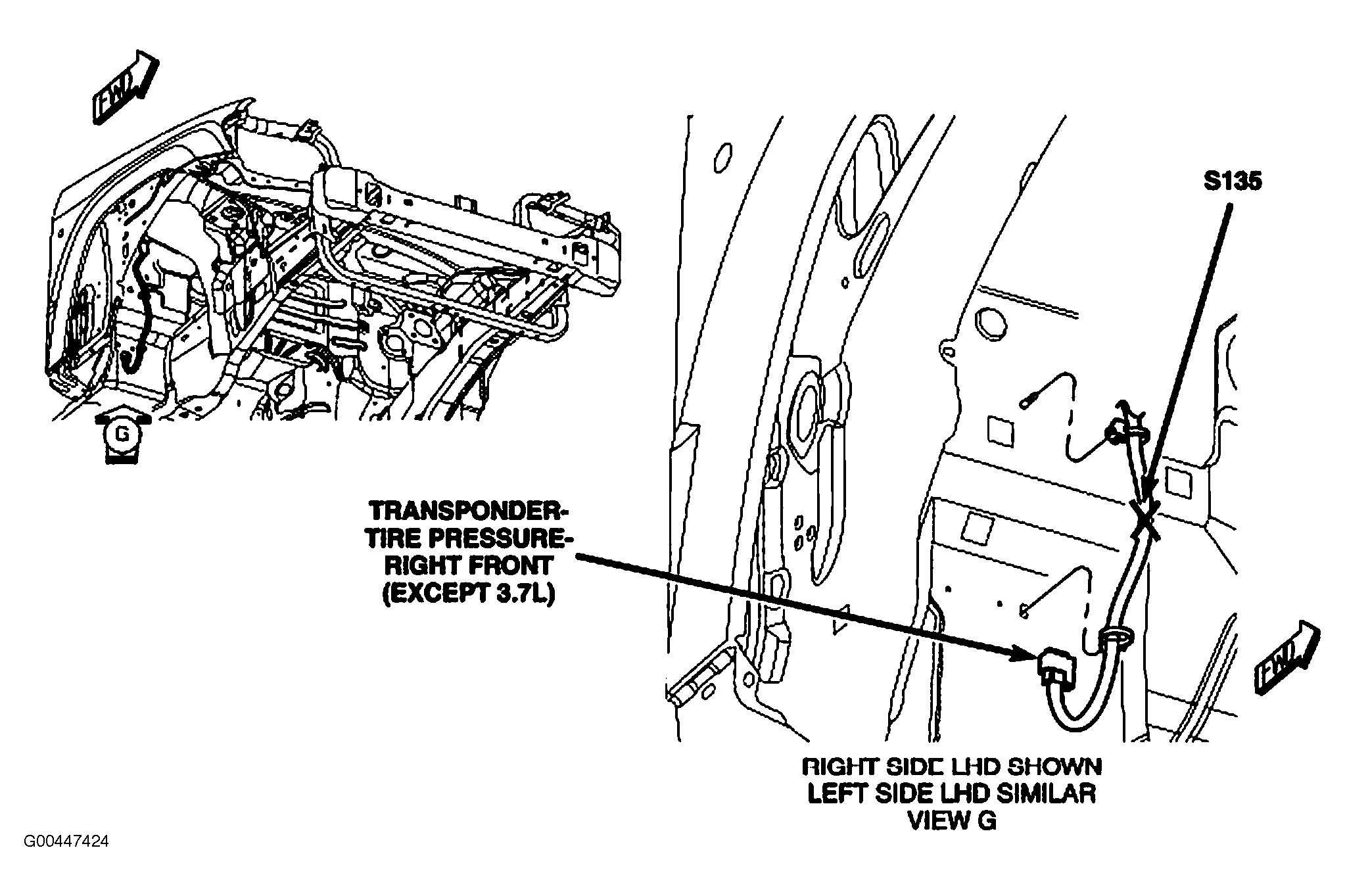

Fig 10: Right Front Wheelwell

G00447424

Courtesy of CHRYSLER LLC

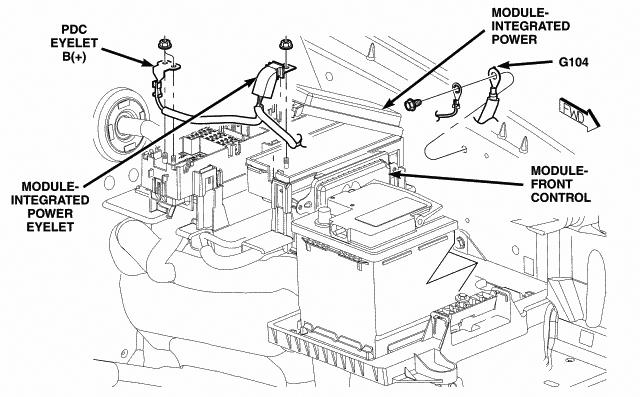

Fig 11: Left Side Of Engine Compartment

G00458727

Courtesy of CHRYSLER LLC

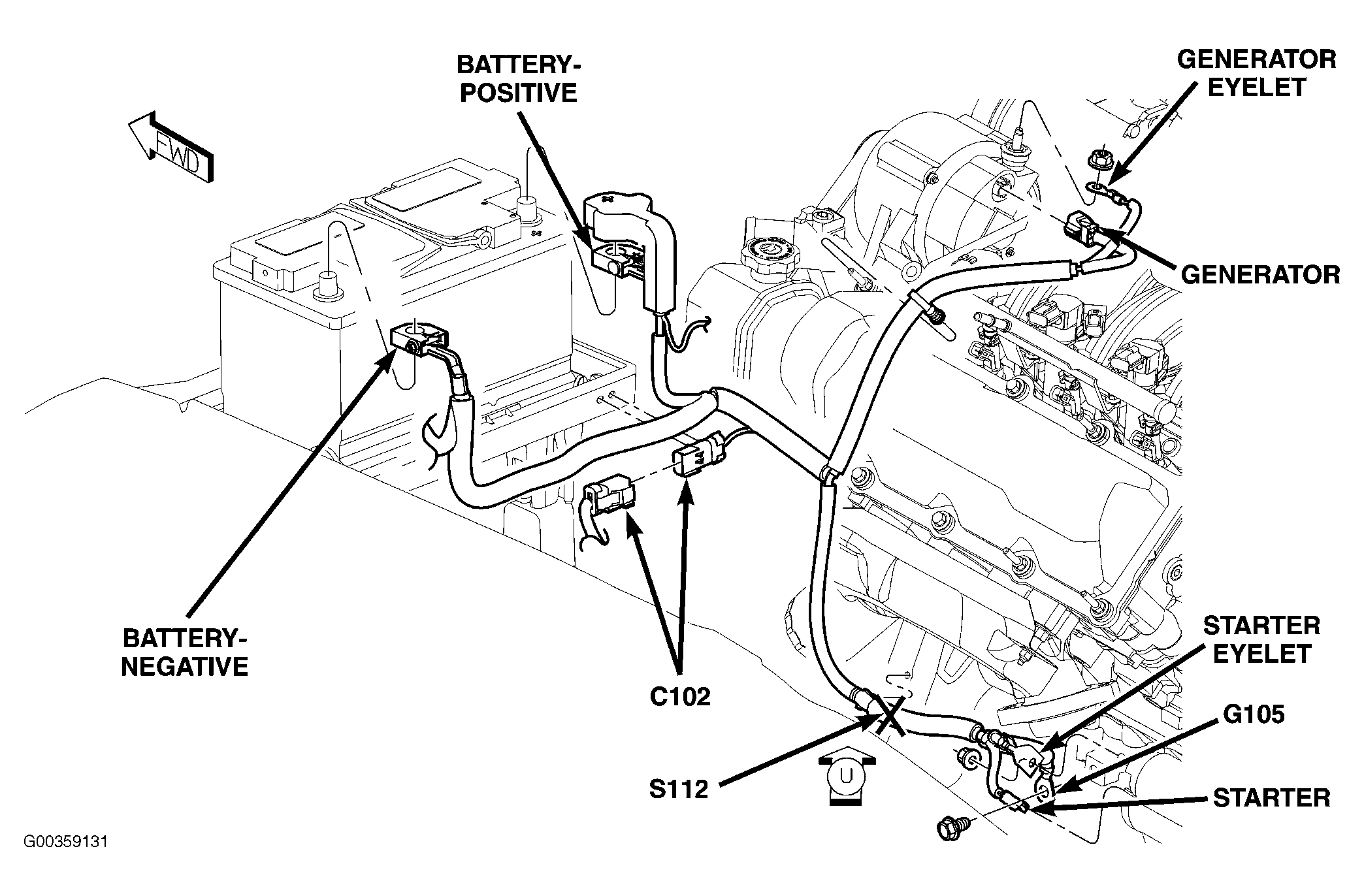

Fig 12: Left Side Of Engine Compartment (3.7L & 4.7L)

G00359131

Courtesy of CHRYSLER LLC

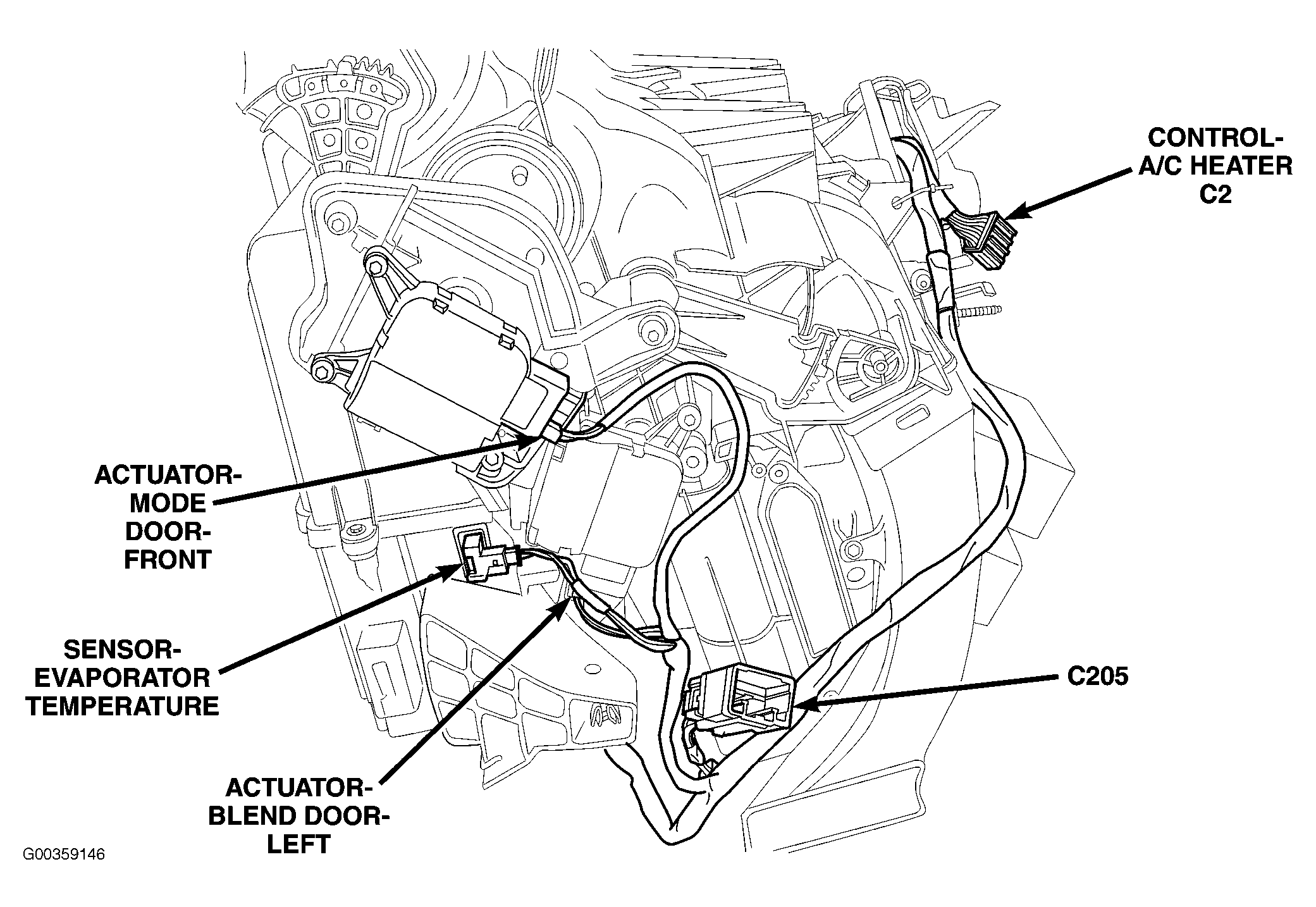

Fig 13: Left Side Of HVAC Unit

G00359146

Courtesy of CHRYSLER LLC

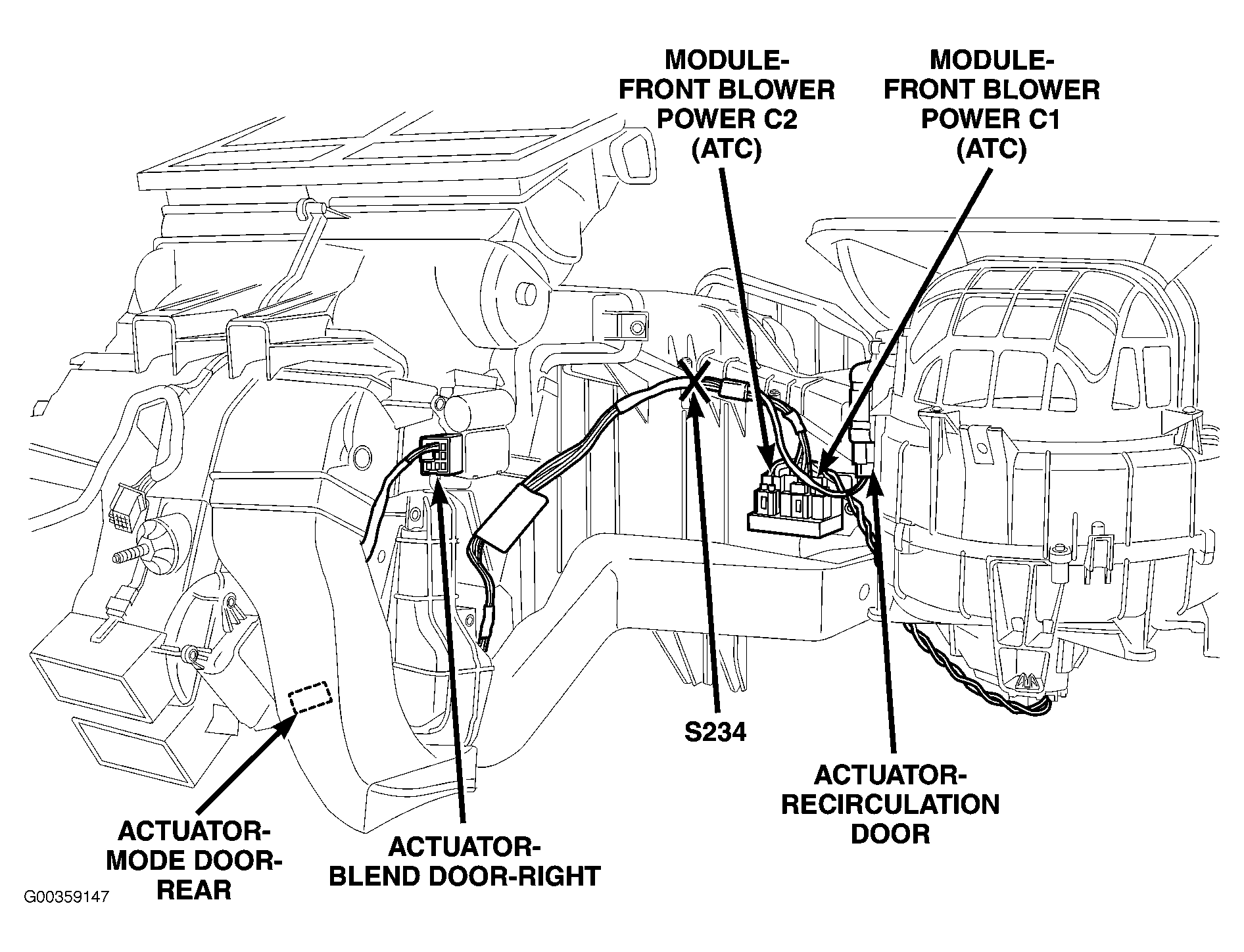

Fig 14: Right Side Of HVAC Unit

G00359147

Courtesy of CHRYSLER LLC

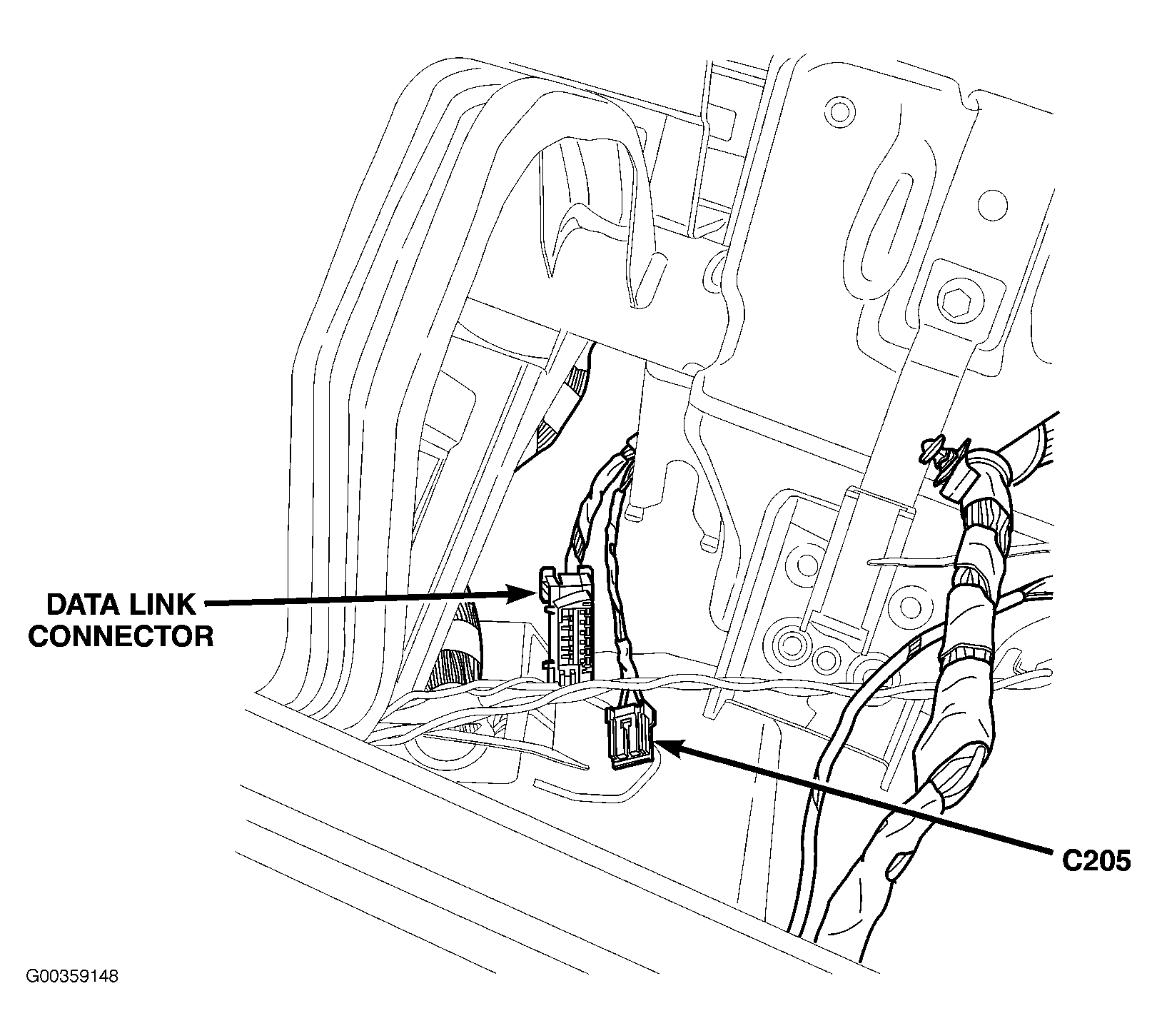

Fig 15: Lower Left Side Of Dash

G00359148

Courtesy of CHRYSLER LLC

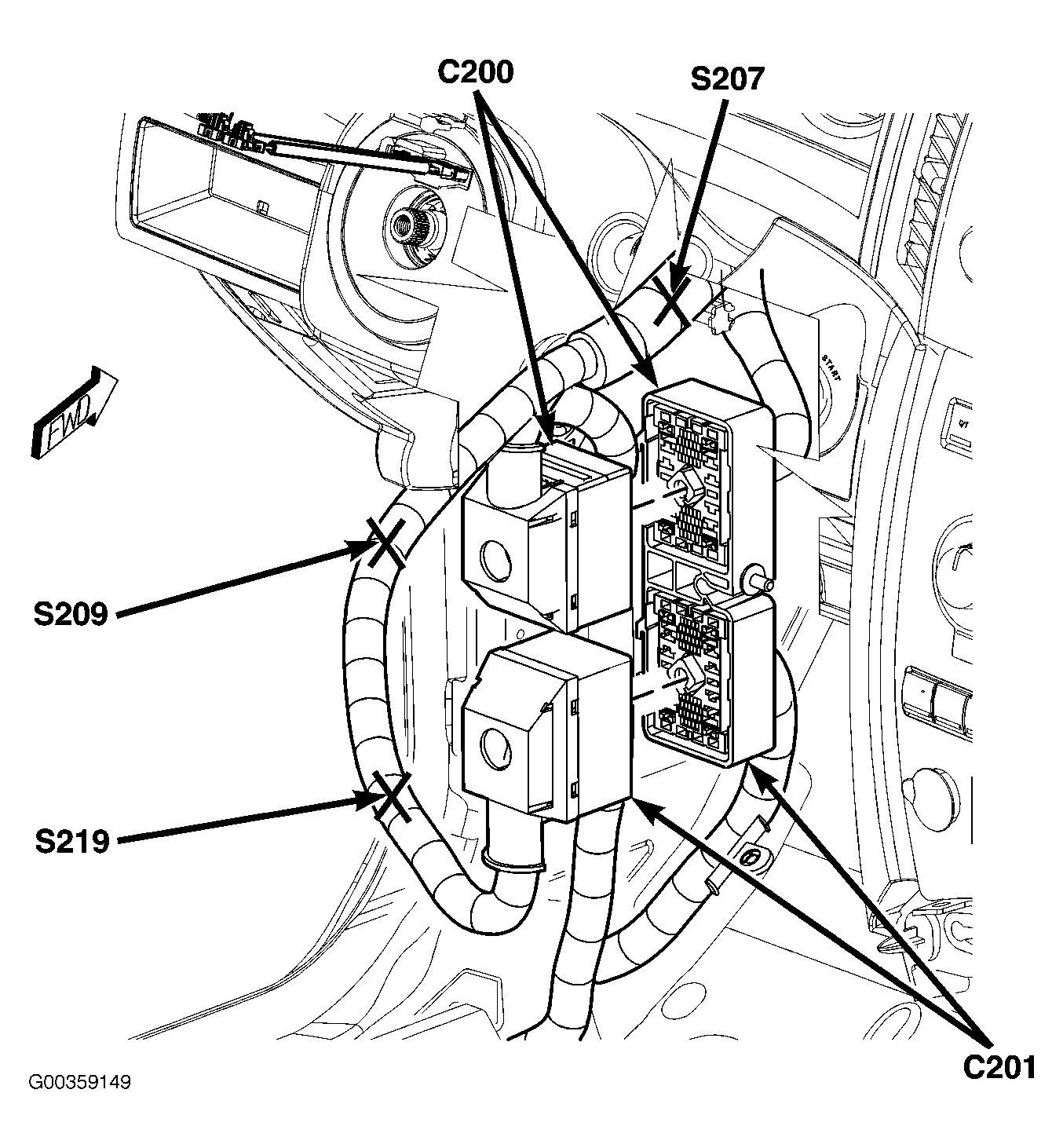

Fig 16: Left Kick Panel

G00359149

Courtesy of CHRYSLER LLC

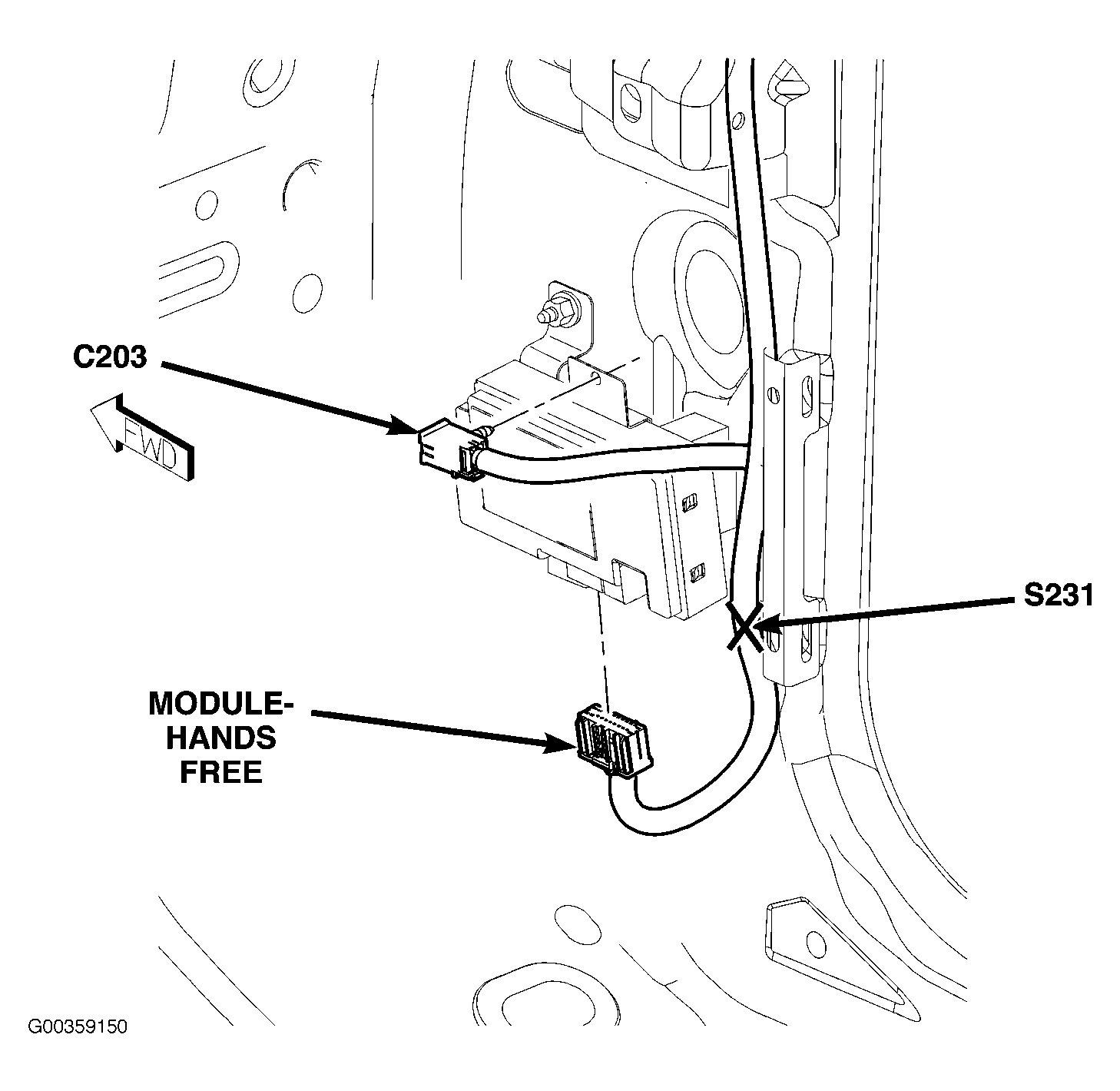

Fig 17: Right Kick Panel

G00359150

Courtesy of CHRYSLER LLC

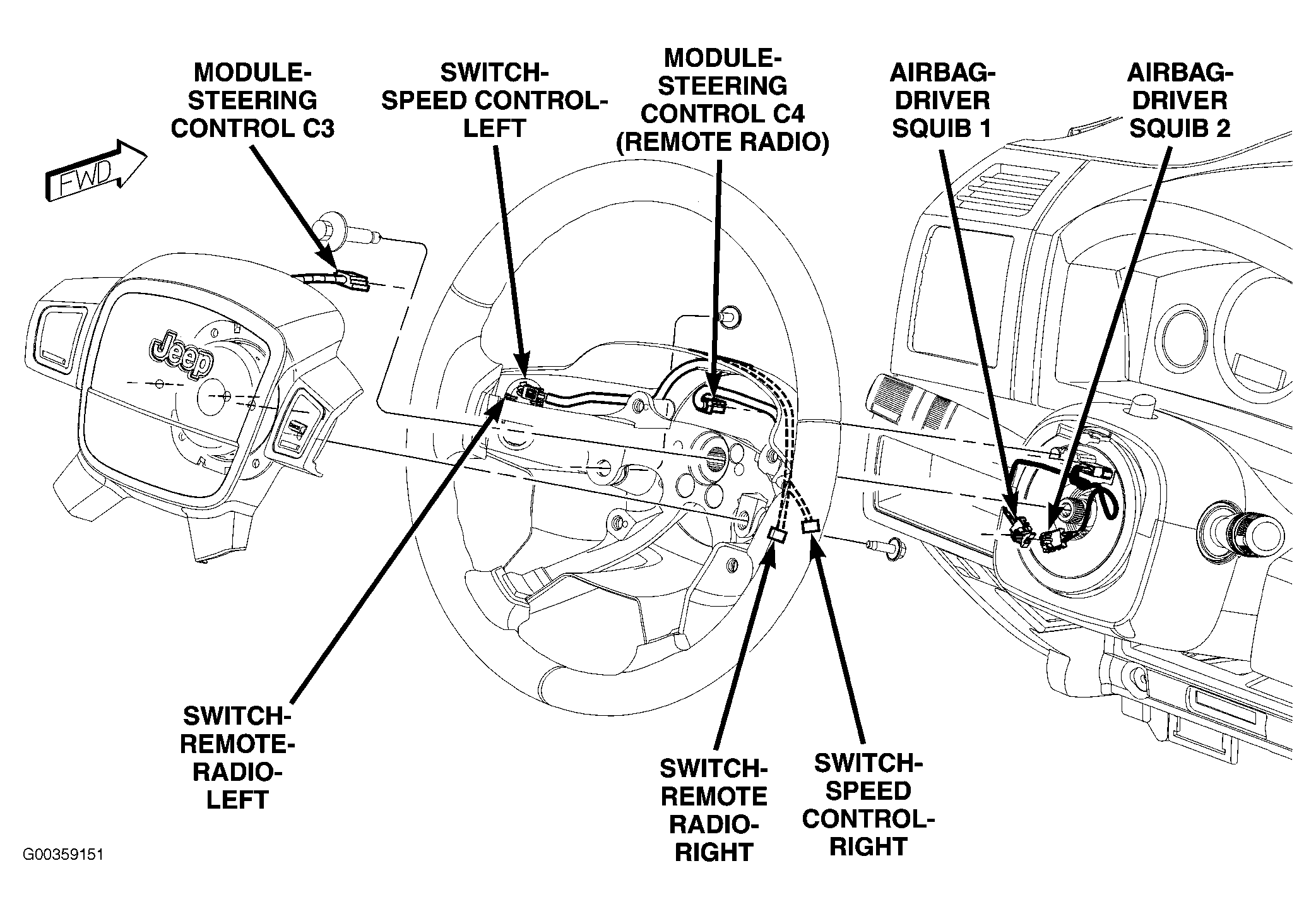

Fig 18: Steering Wheel

G00359151

Courtesy of CHRYSLER LLC

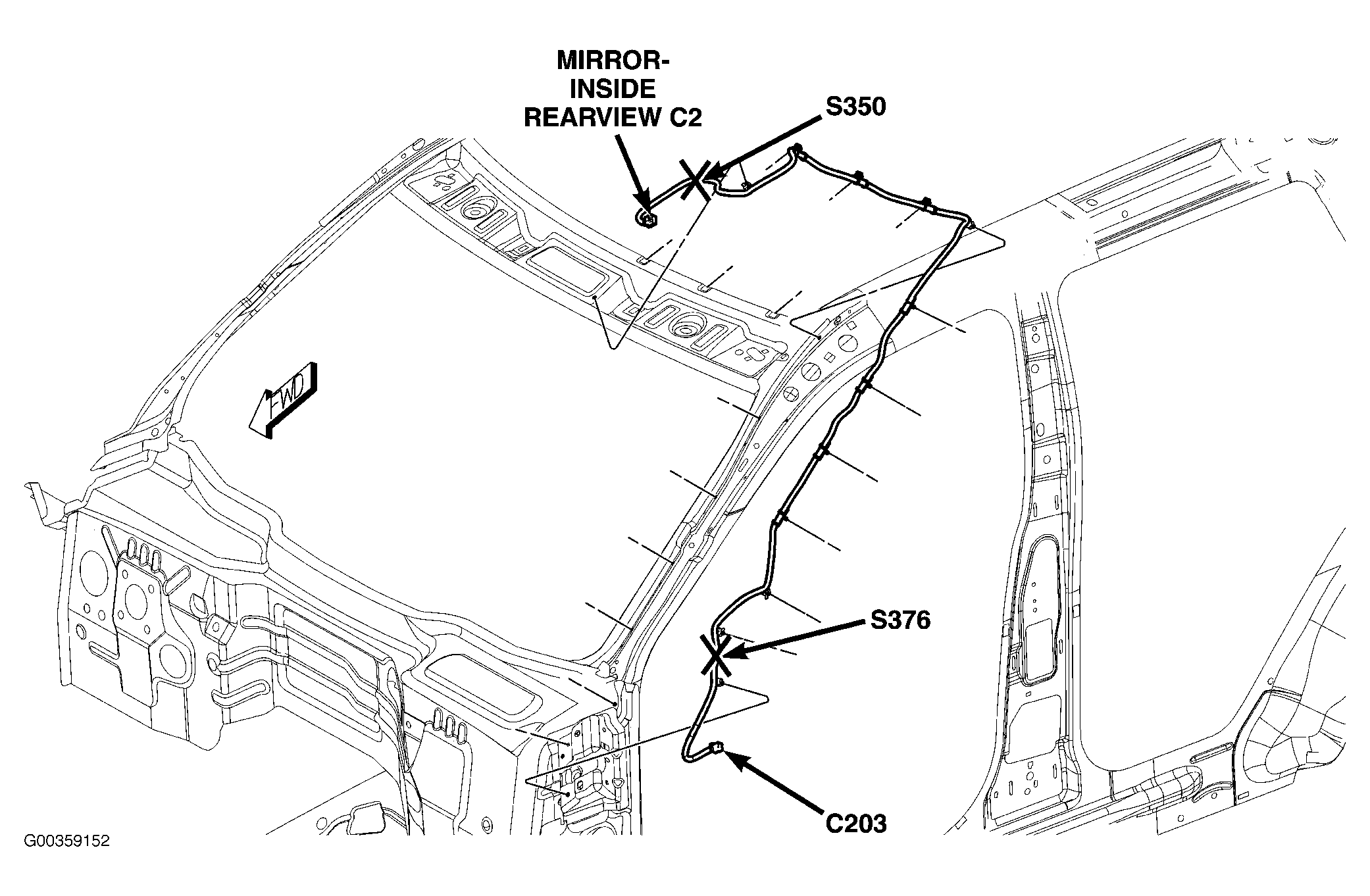

Fig 19: Left "A" Pillar

G00359152

Courtesy of CHRYSLER LLC

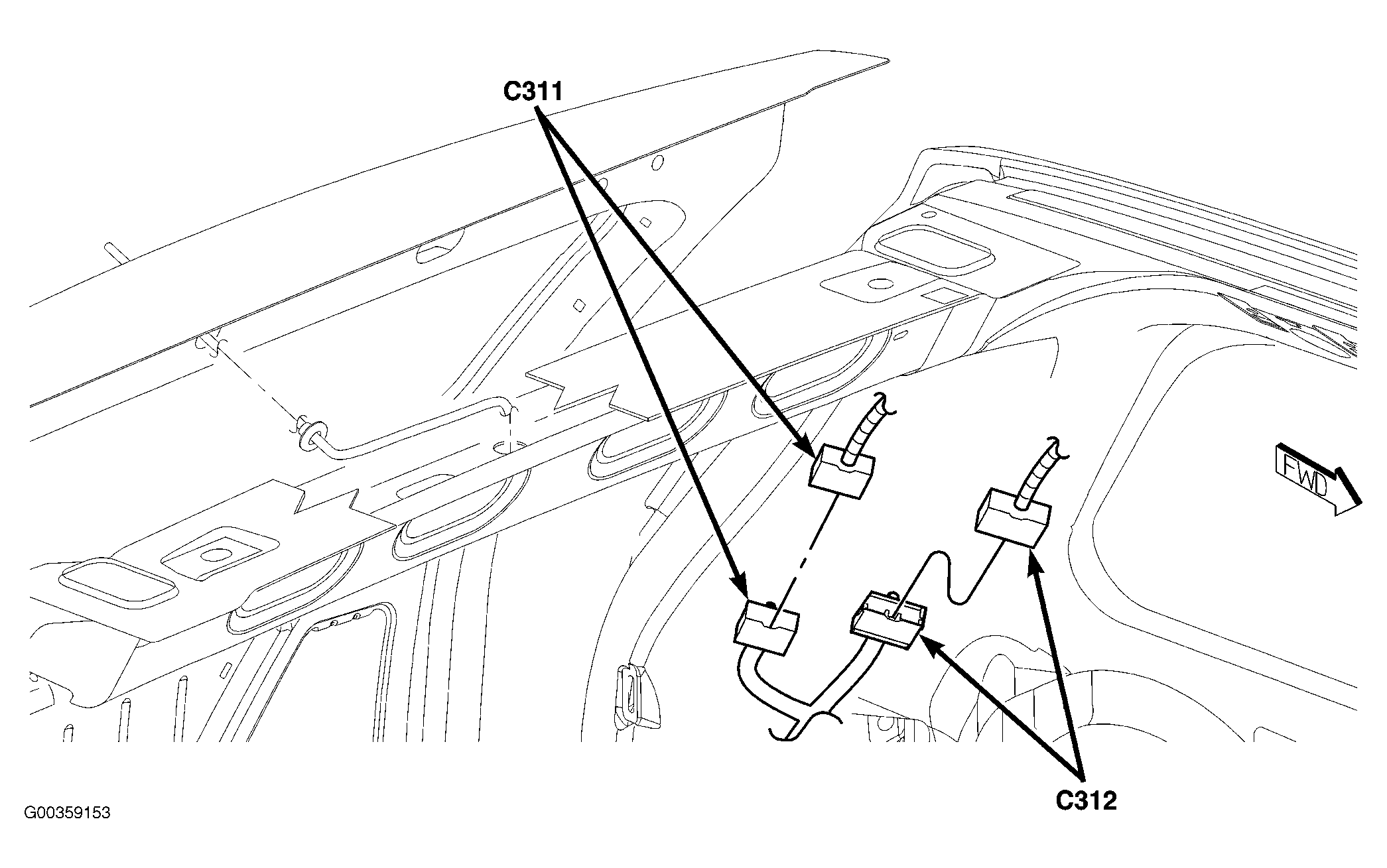

Fig 20: Left Rear Of Headliner

G00359153

Courtesy of CHRYSLER LLC

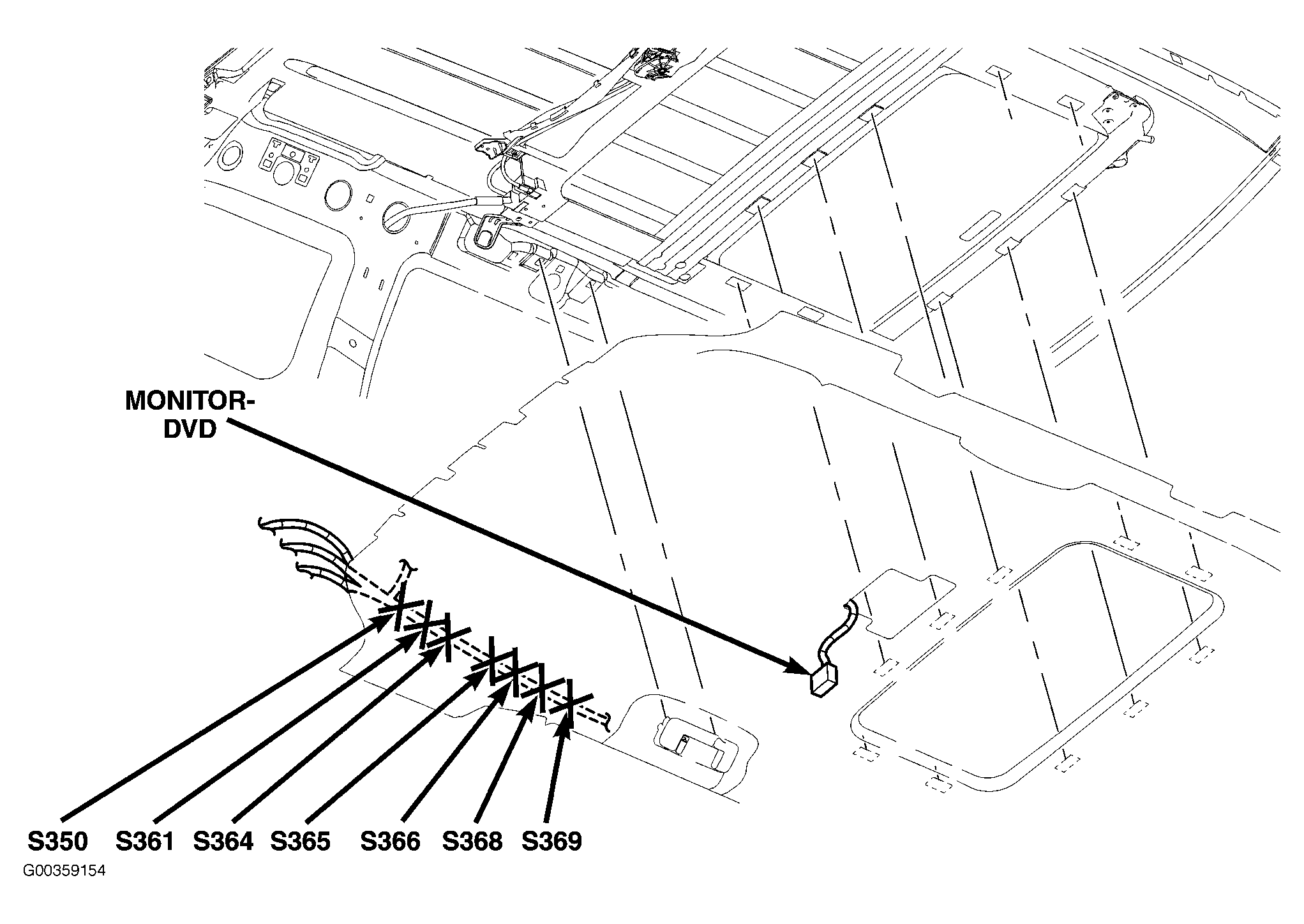

Fig 21: Rear Of Headliner

G00359154

Courtesy of CHRYSLER LLC

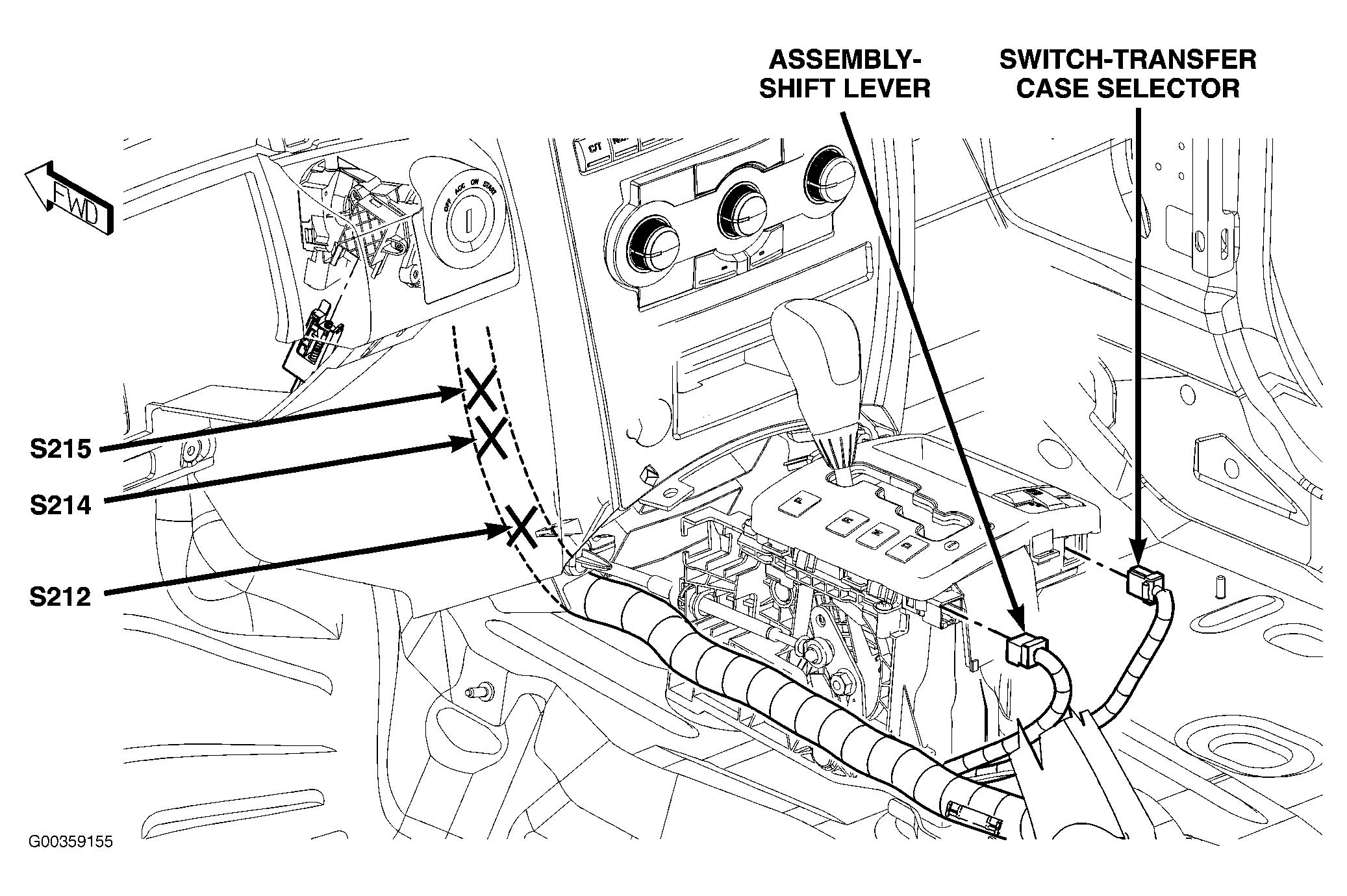

Fig 22: Shift Assembly

G00359155

Courtesy of CHRYSLER LLC

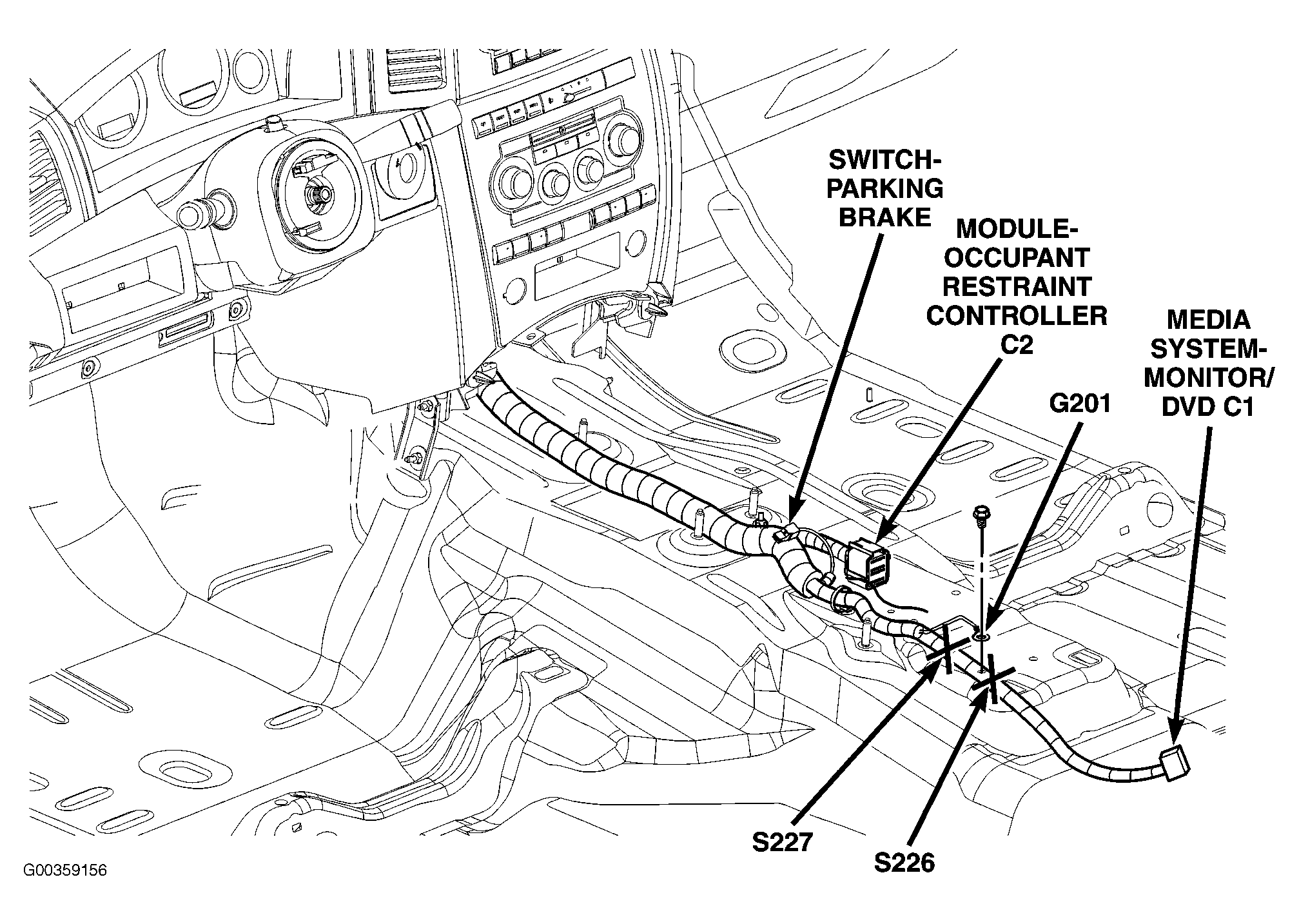

Fig 23: Center Console

G00359156

Courtesy of CHRYSLER LLC

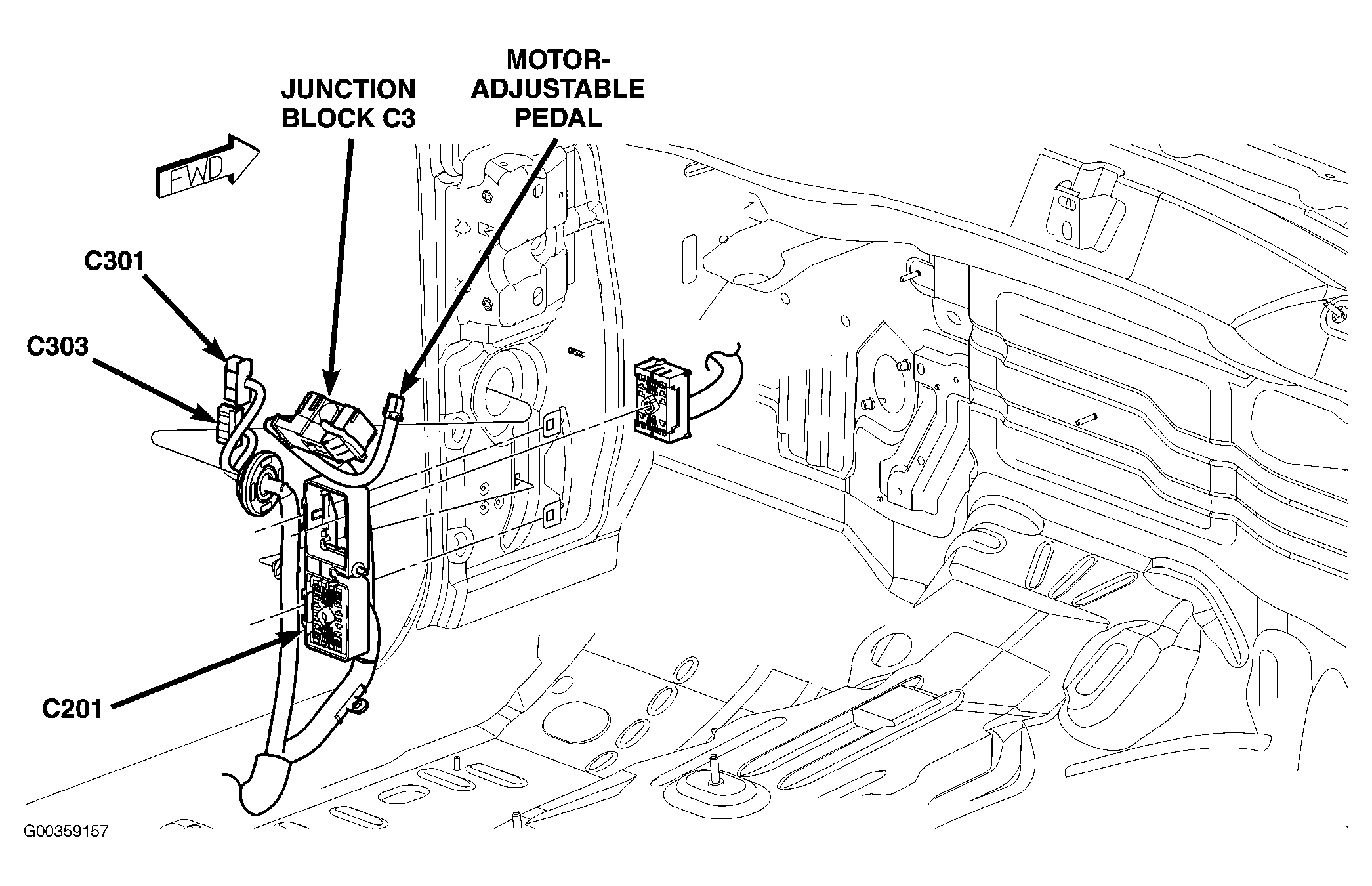

Fig 24: Left Front Of Passenger Compartment

G00359157

Courtesy of CHRYSLER LLC

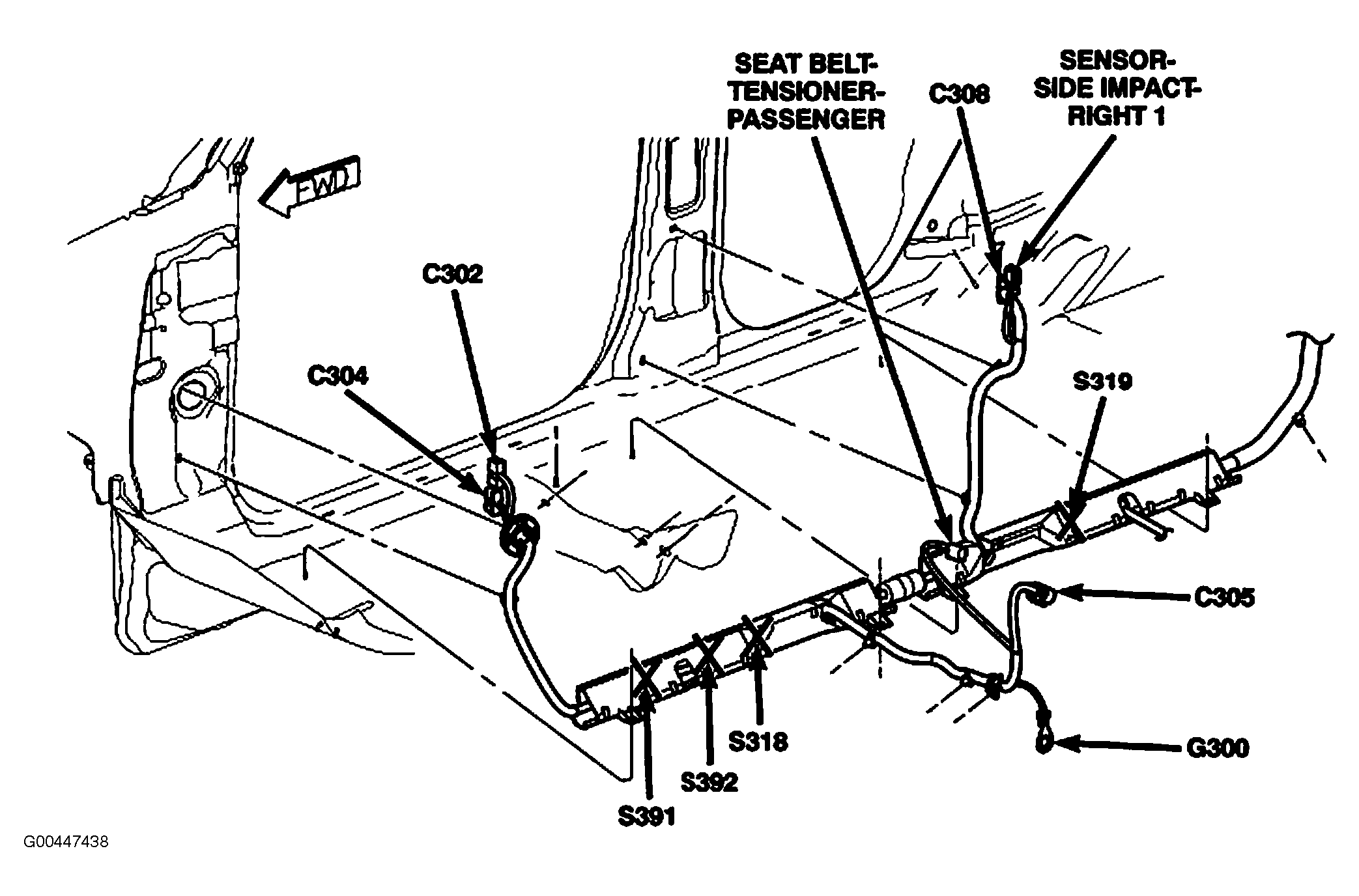

Fig 25: Right Side Of Passenger Compartment

G00447438

Courtesy of CHRYSLER LLC

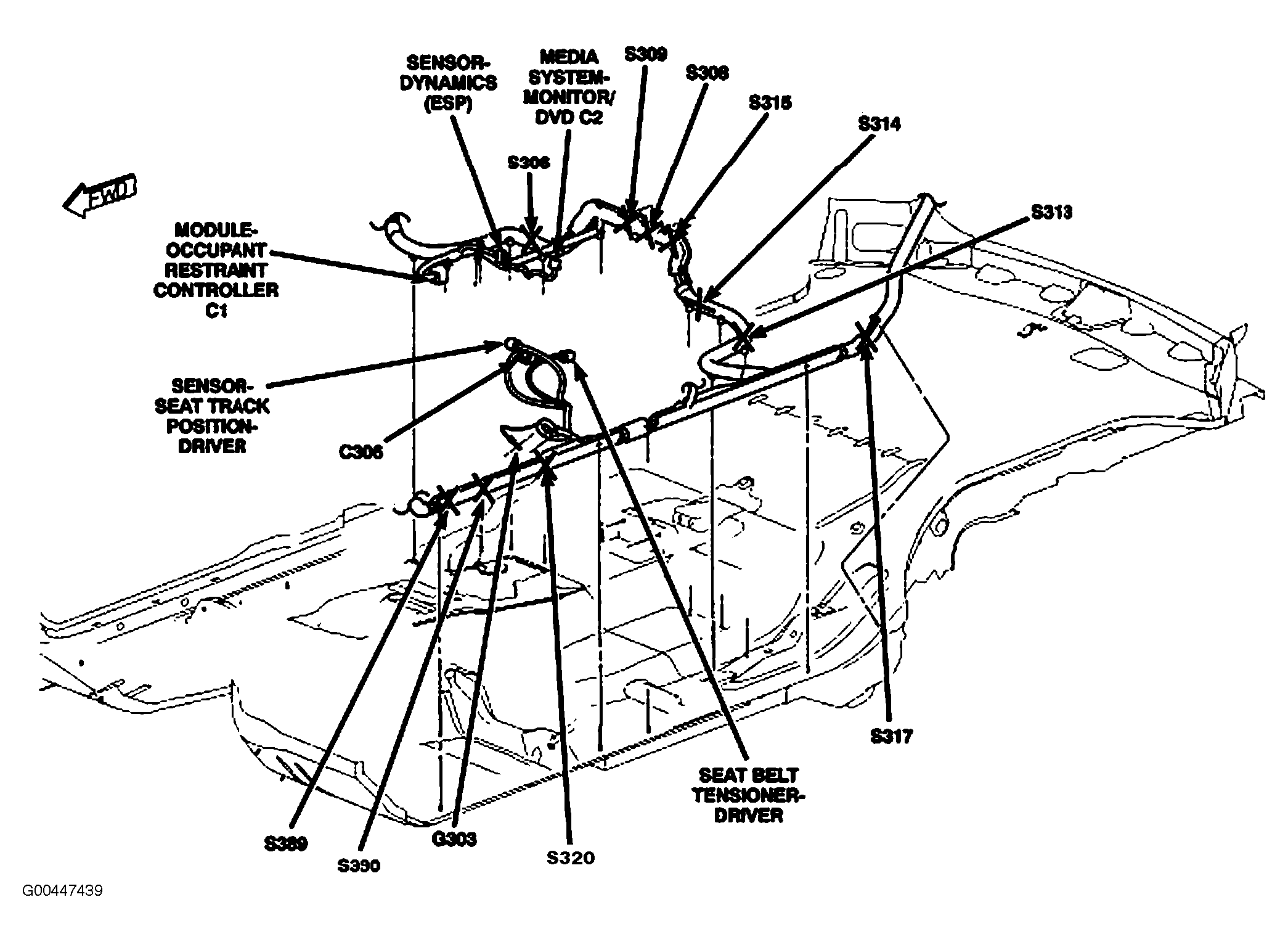

Fig 26: Left Side Of Passenger Compartment

G00447439

Courtesy of CHRYSLER LLC

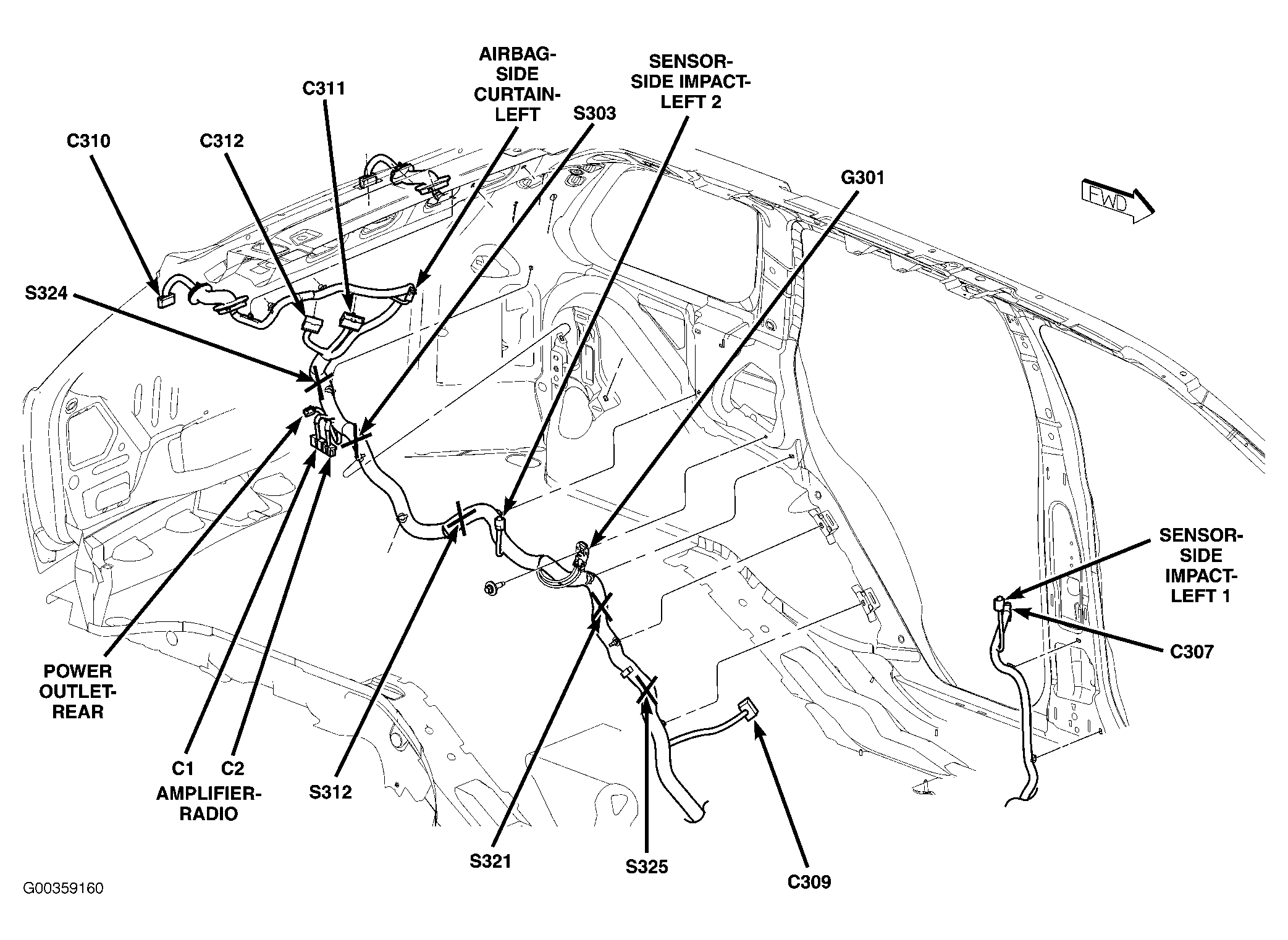

Fig 27: Left Rear Of Passenger Compartment

G00359160

Courtesy of CHRYSLER LLC

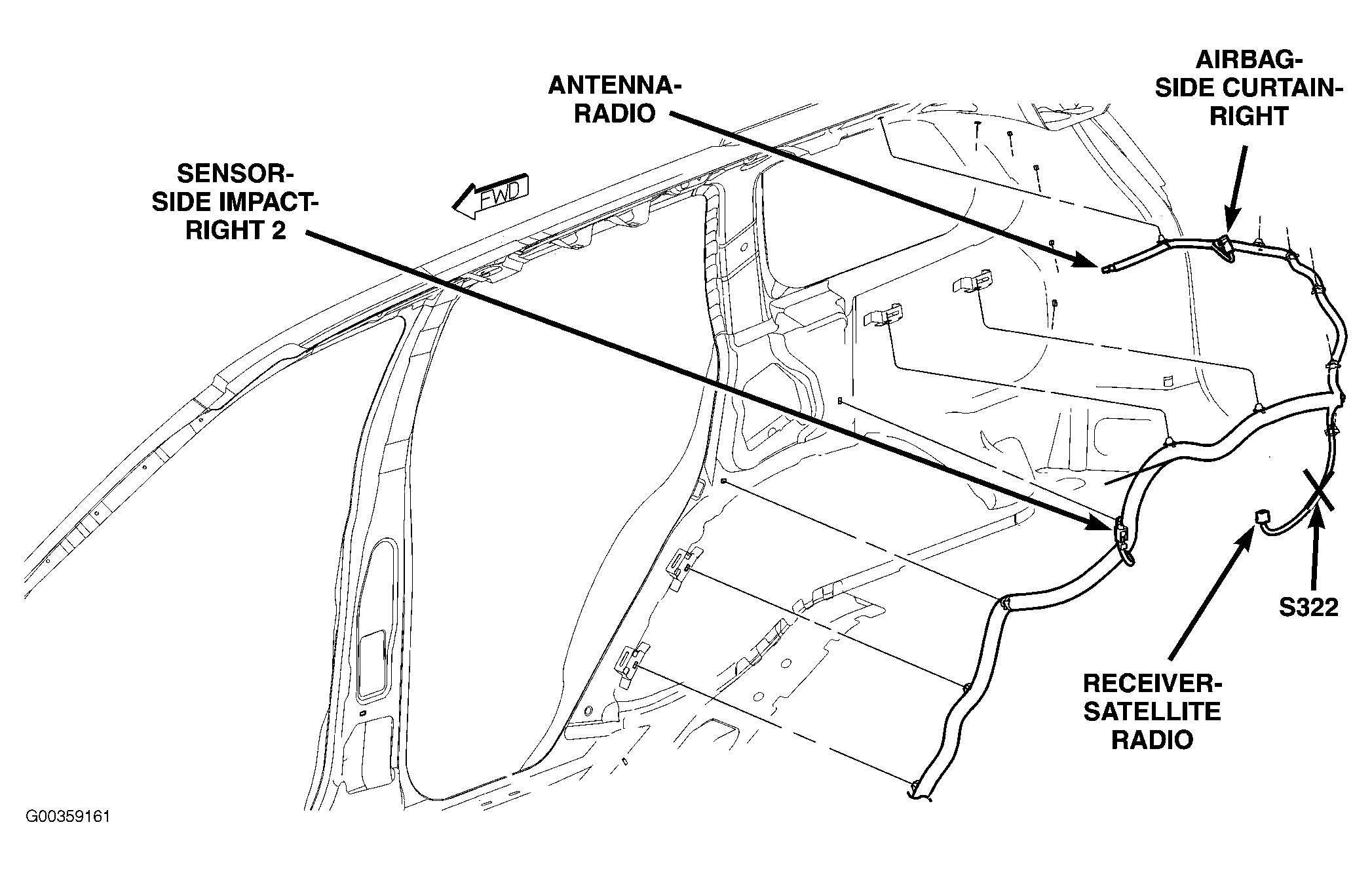

Fig 28: Right Rear Of Passenger Compartment

G00359161

Courtesy of CHRYSLER LLC

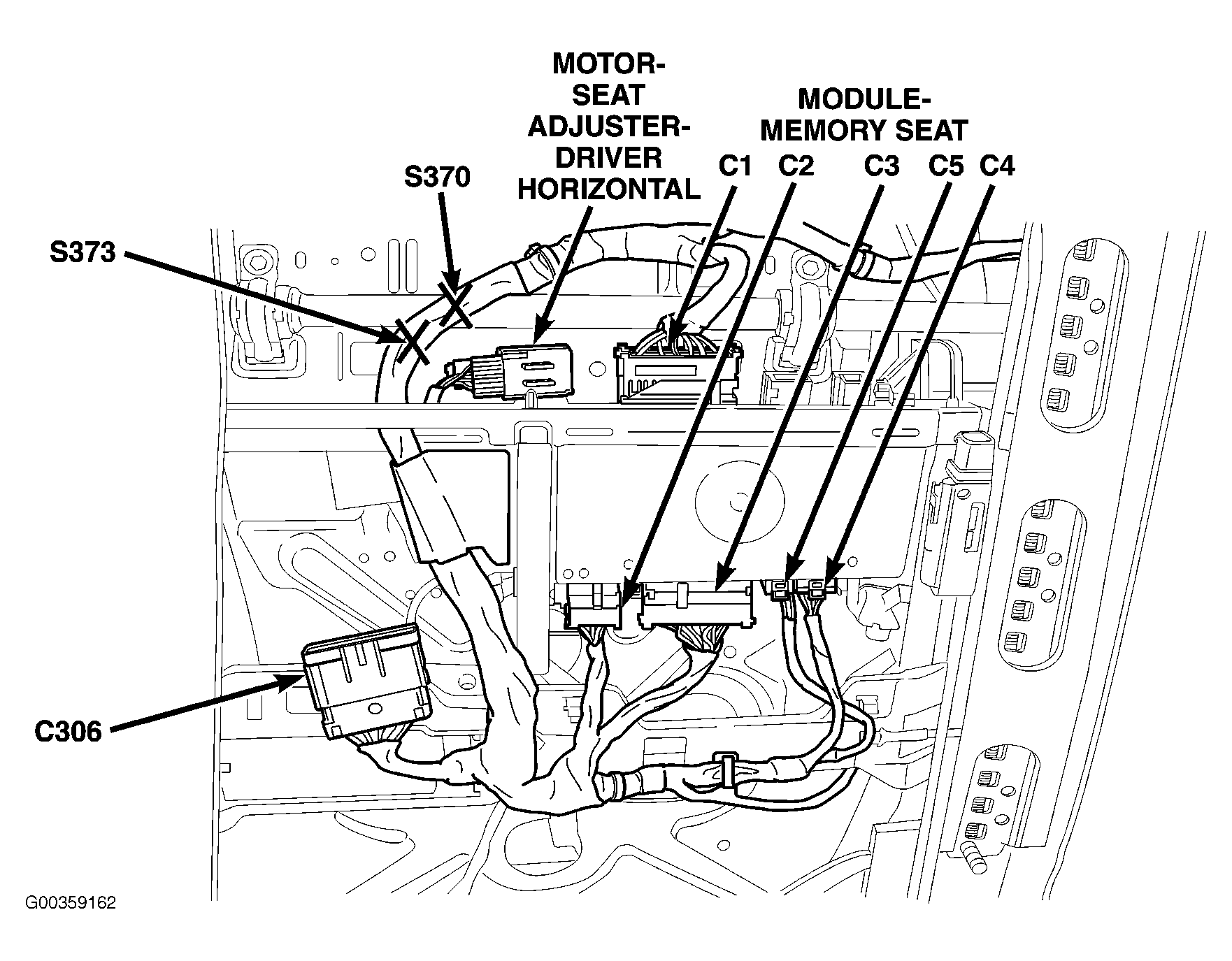

Fig 29: Driver Seat

G00359162

Courtesy of CHRYSLER LLC

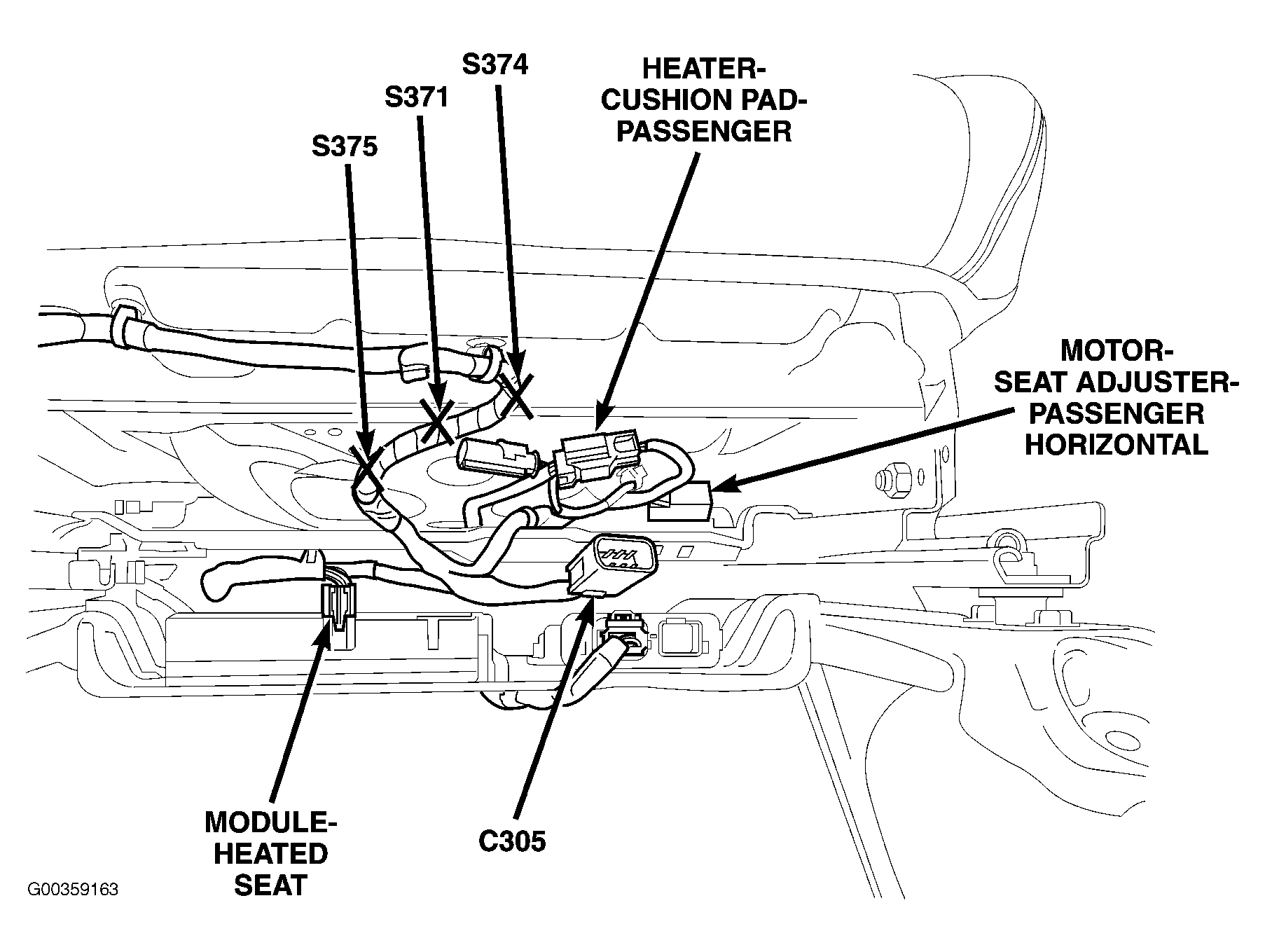

Fig 30: Passenger Seat

G00359163

Courtesy of CHRYSLER LLC

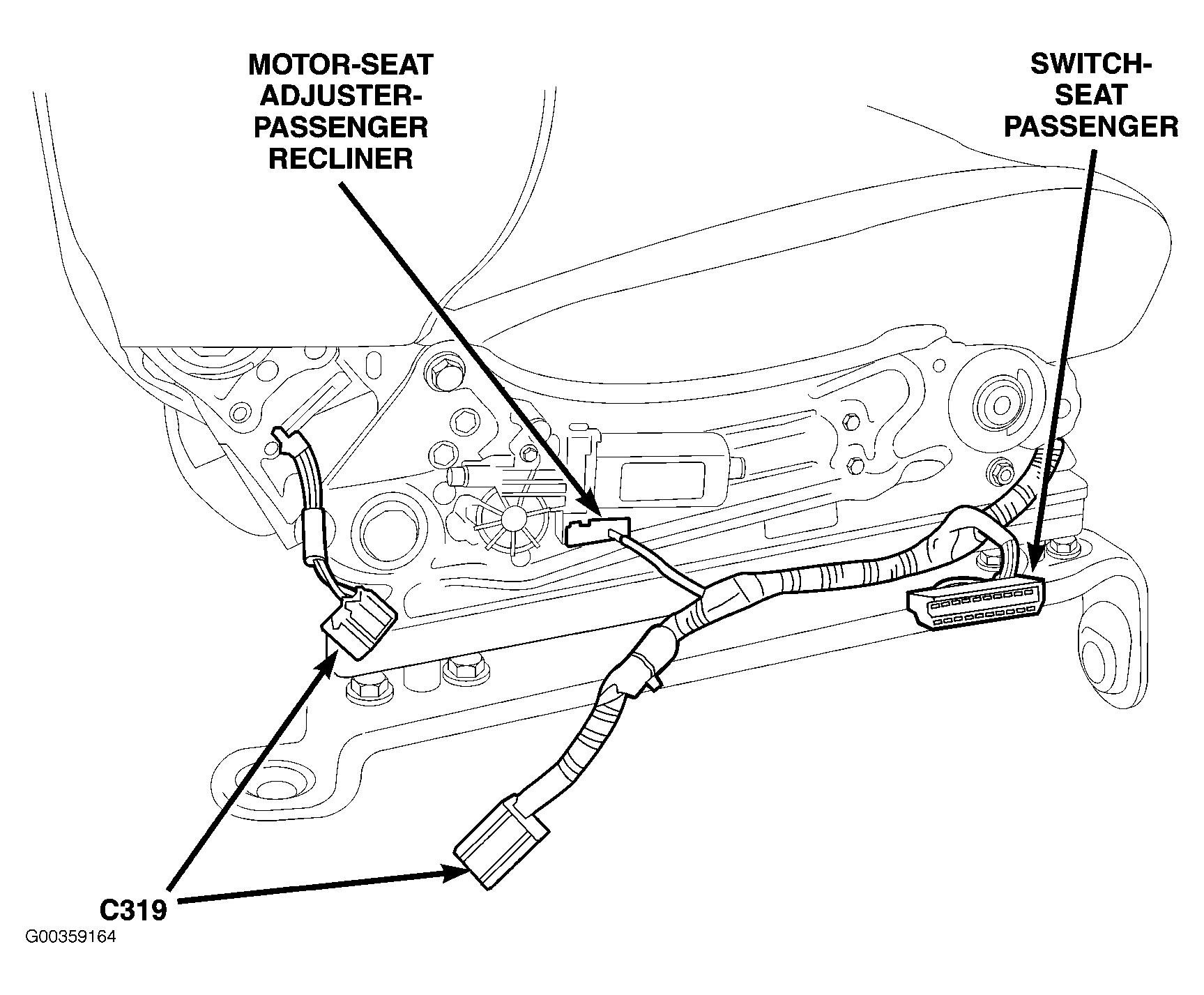

Fig 31: Passenger Seat

G00359164

Courtesy of CHRYSLER LLC

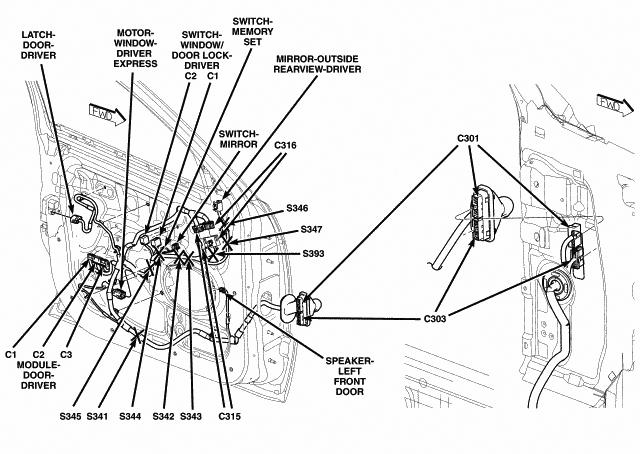

Fig 32: Driver's Door

G00458746

Courtesy of CHRYSLER LLC

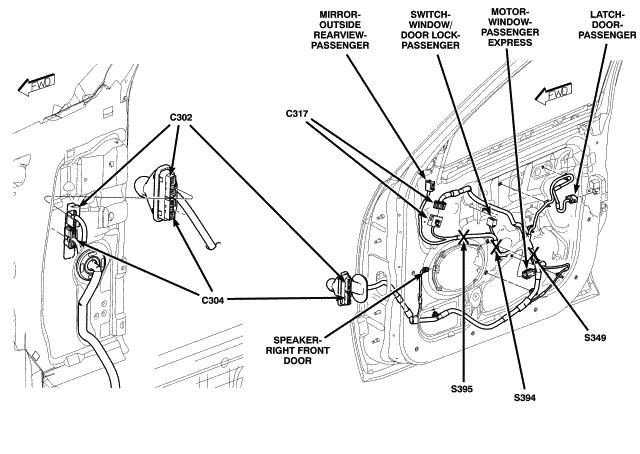

Fig 33: Passenger's Door

G00458747

Courtesy of CHRYSLER LLC

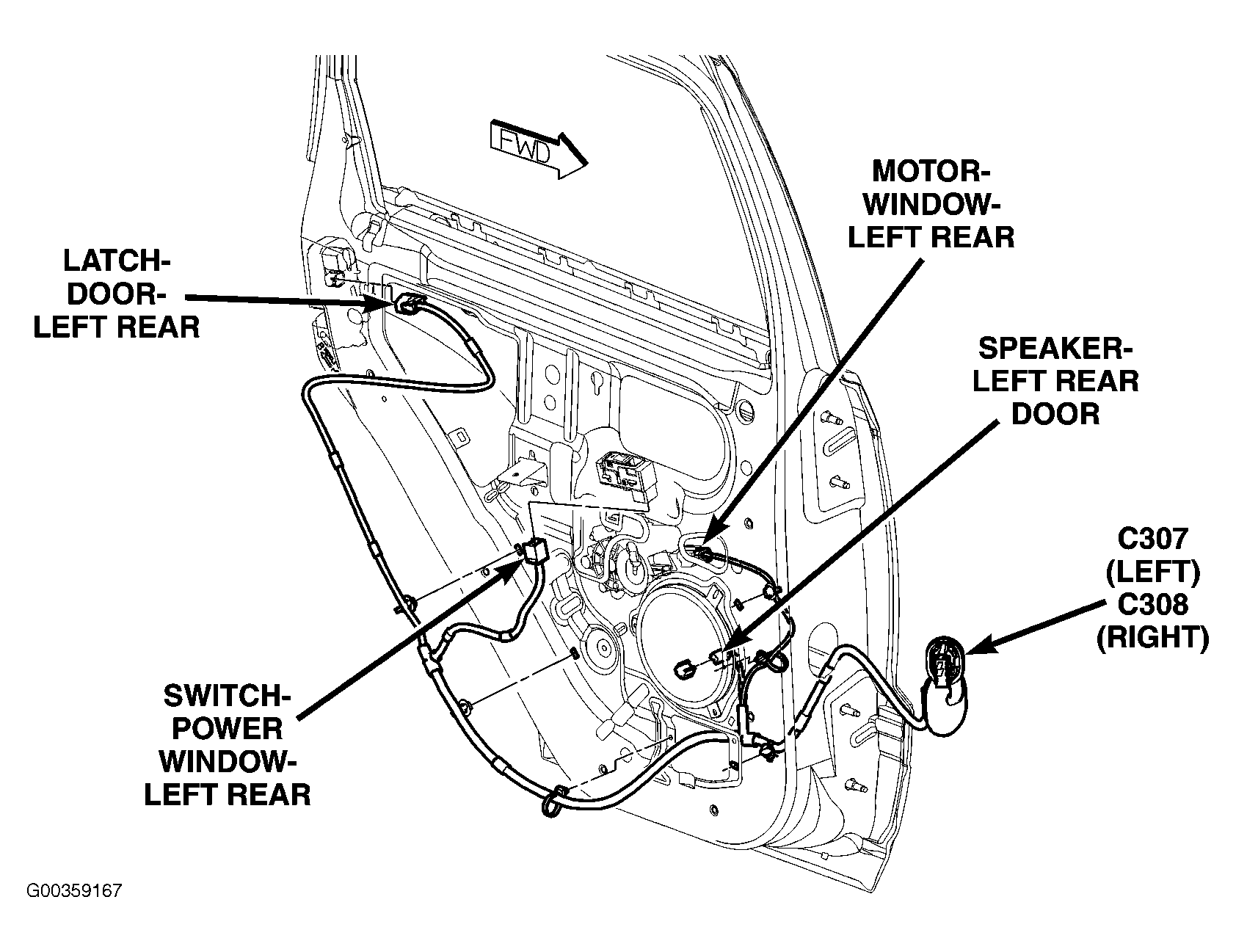

Fig 34: Rear Door

G00359167

Courtesy of CHRYSLER LLC

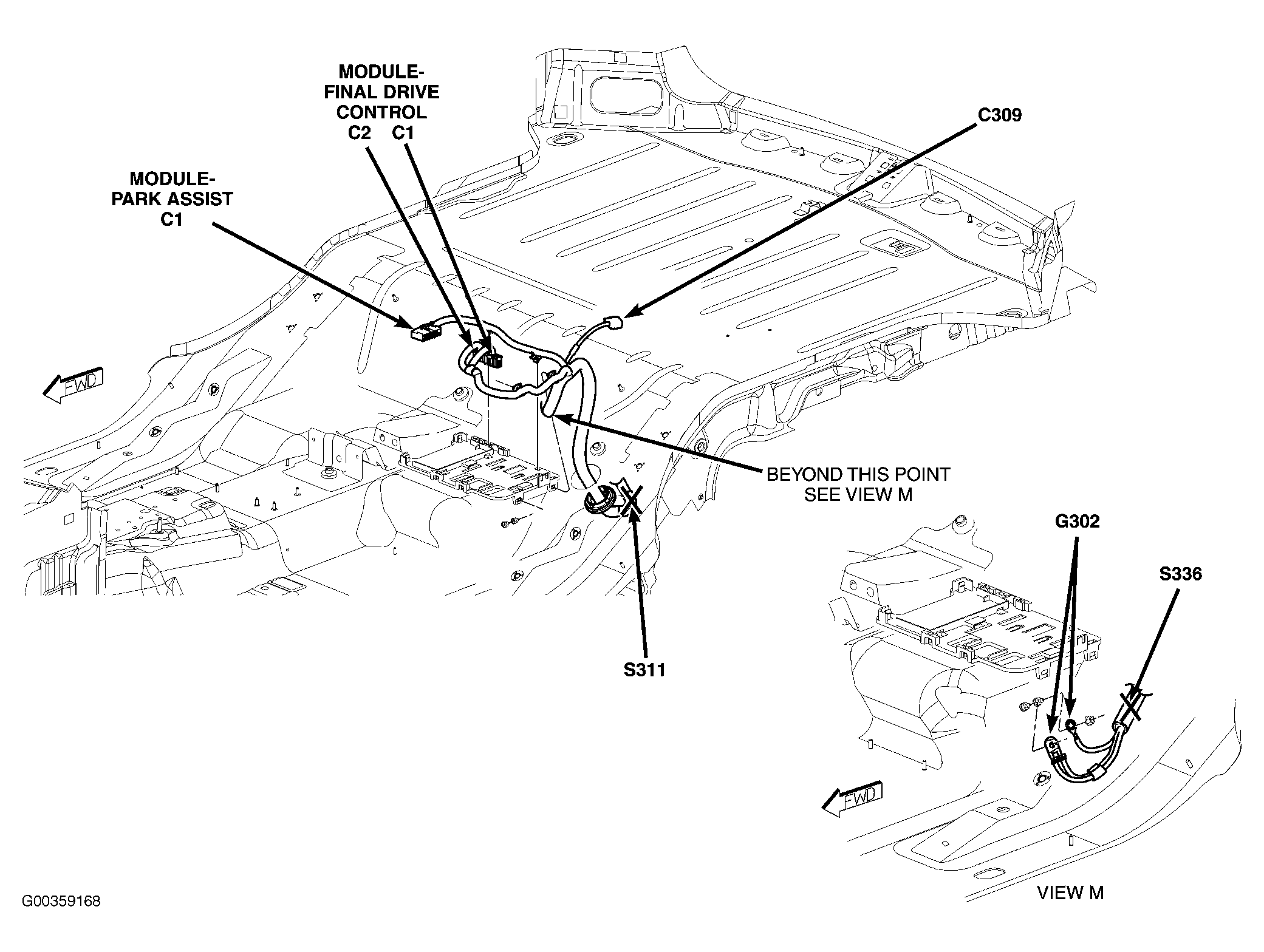

Fig 35: Center Of Vehicle

G00359168

Courtesy of CHRYSLER LLC

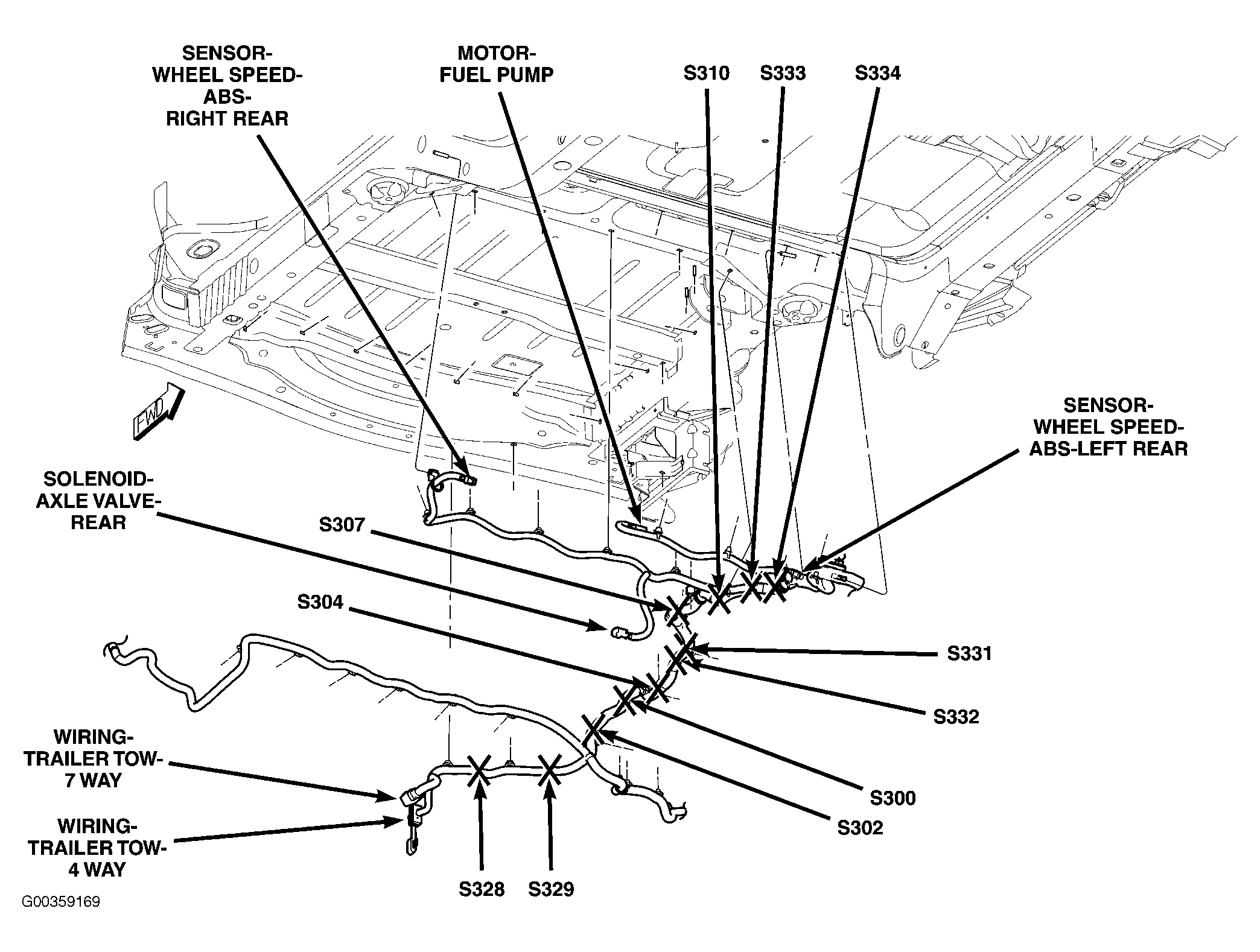

Fig 36: Rear Of Vehicle

G00359169

Courtesy of CHRYSLER LLC

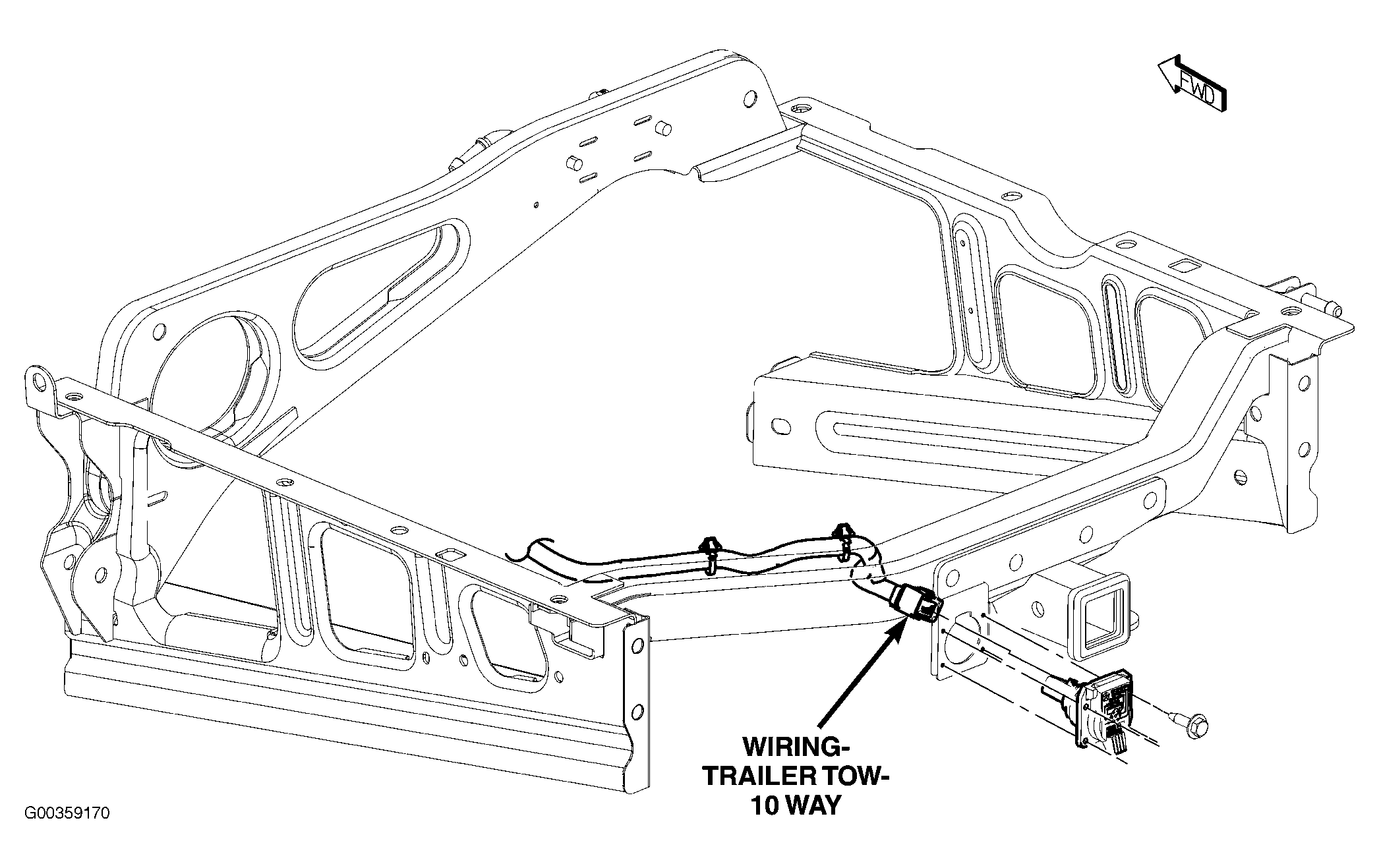

Fig 37: Rear Of Chassis

G00359170

Courtesy of CHRYSLER LLC

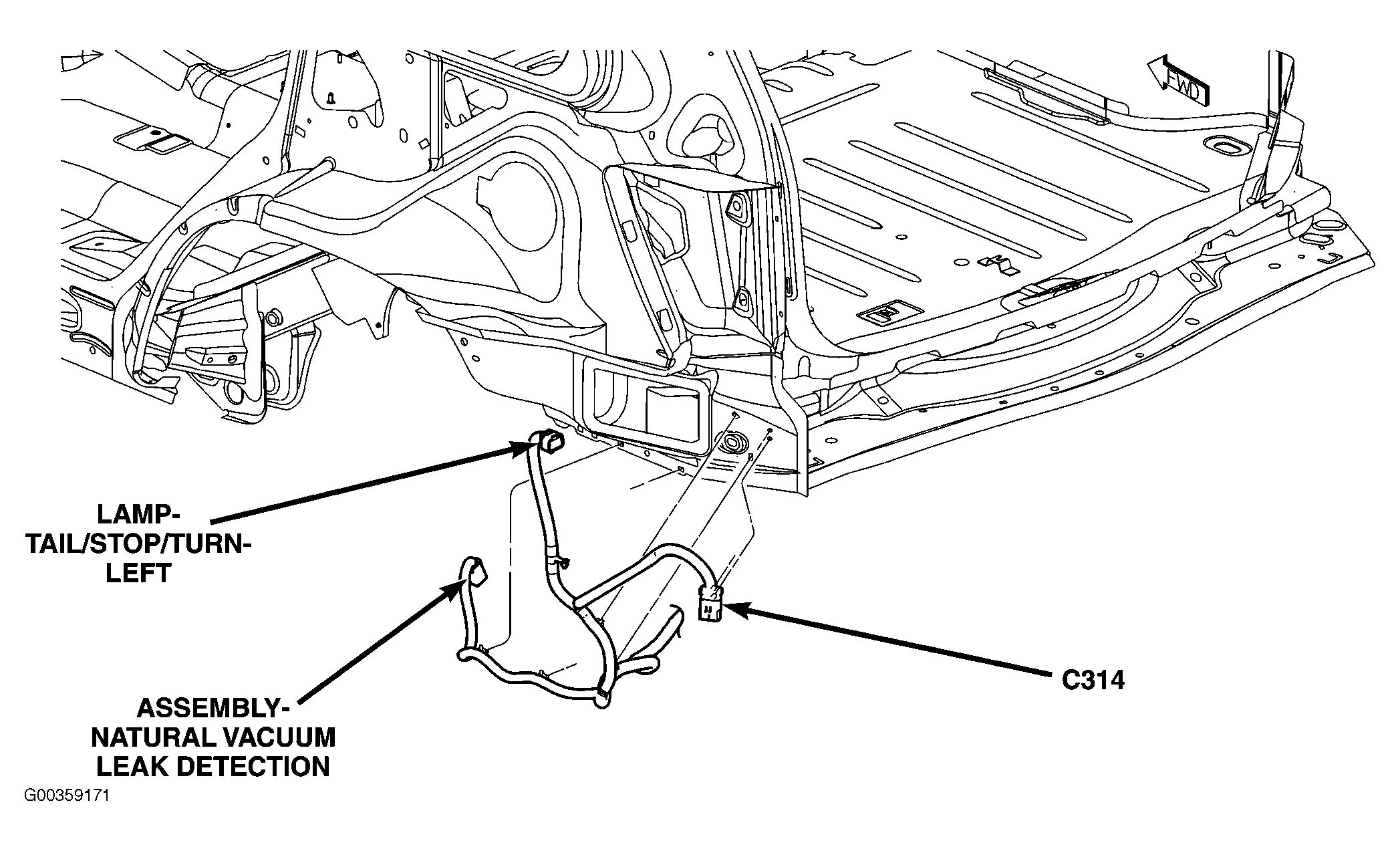

Fig 38: Left Rear Of Vehicle

G00359171

Courtesy of CHRYSLER LLC

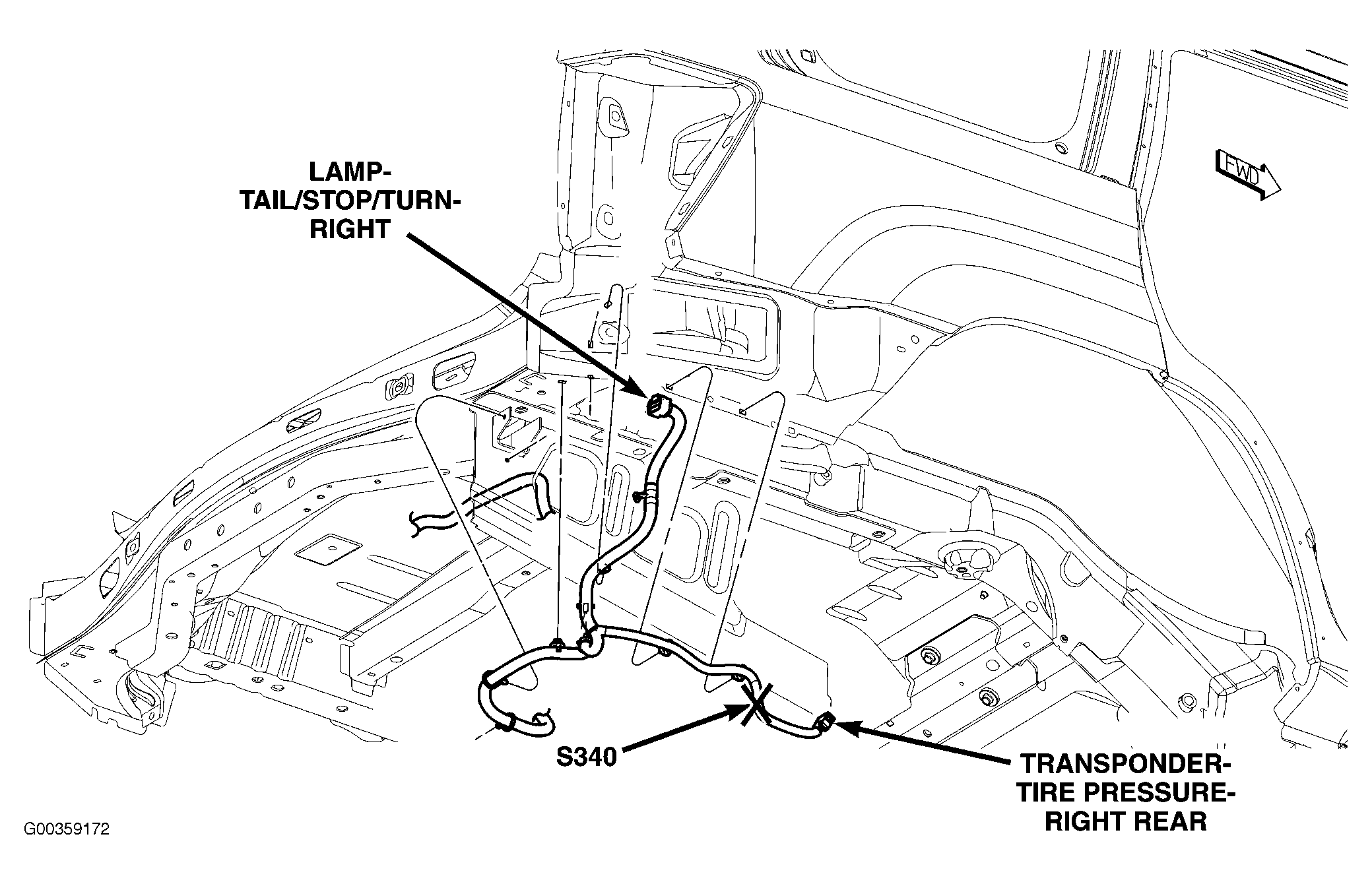

Fig 39: Right Rear Of Vehicle

G00359172

Courtesy of CHRYSLER LLC

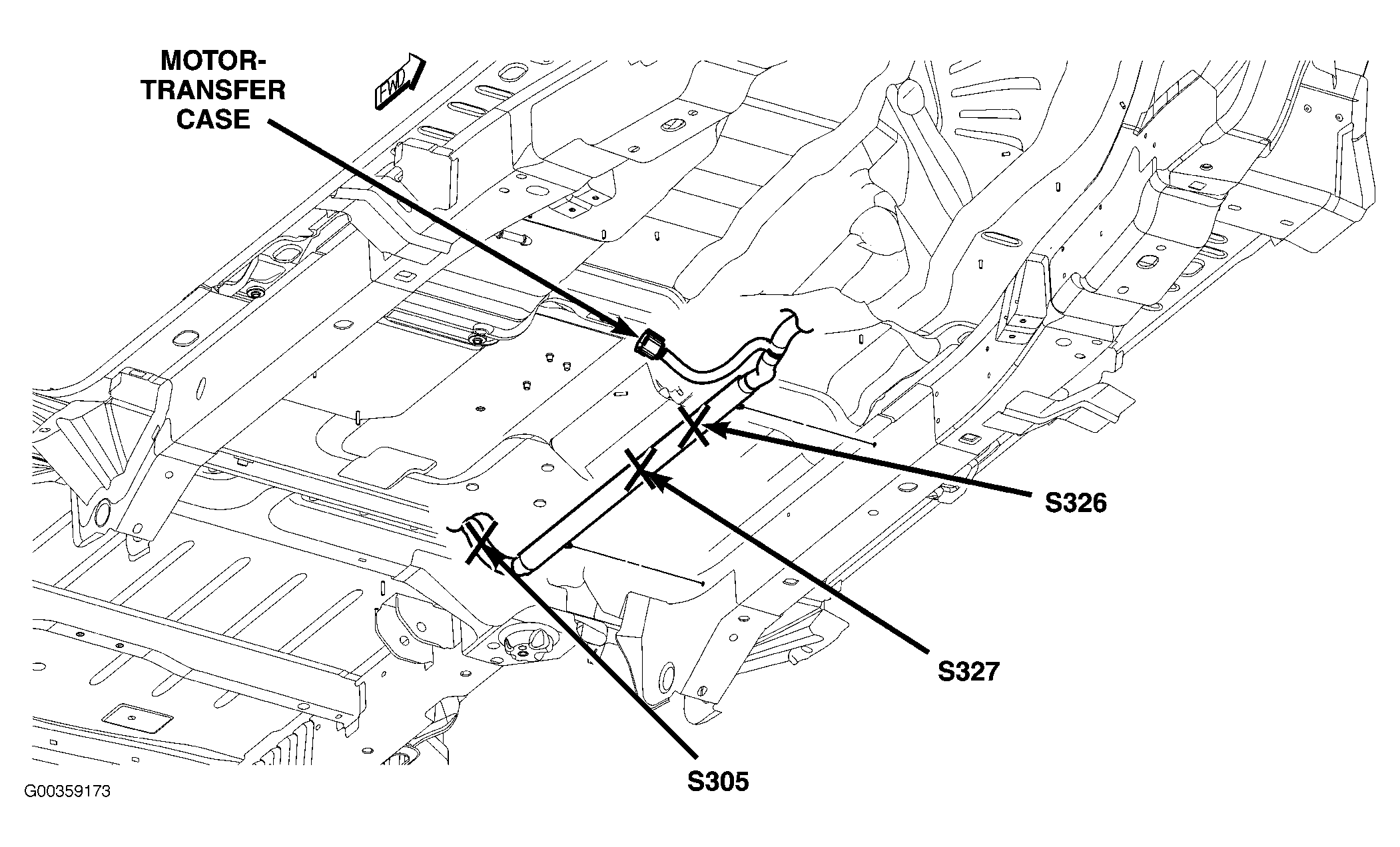

Fig 40: Center Of Vehicle

G00359173

Courtesy of CHRYSLER LLC

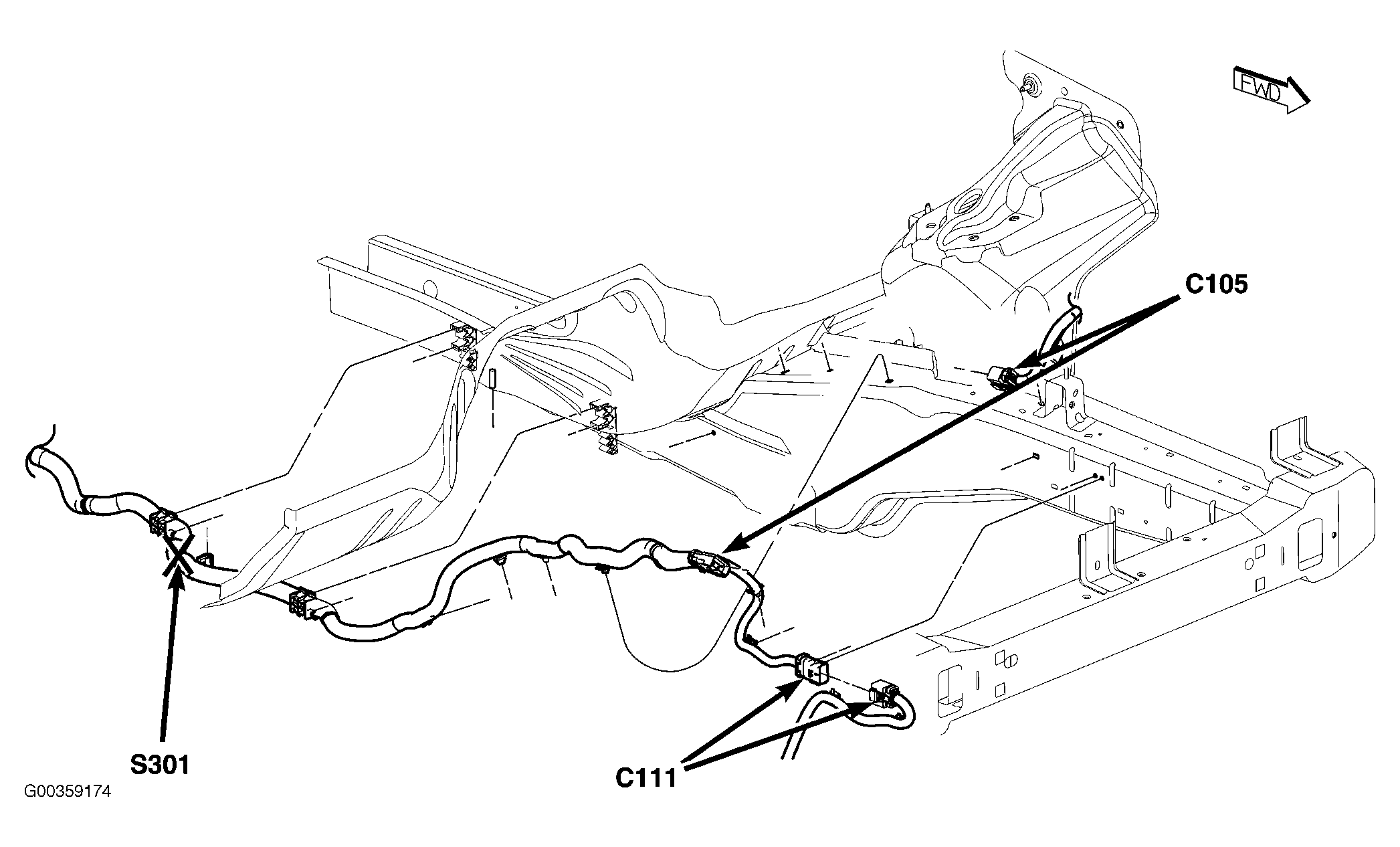

Fig 41: Left Front Of Vehicle

G00359174

Courtesy of CHRYSLER LLC

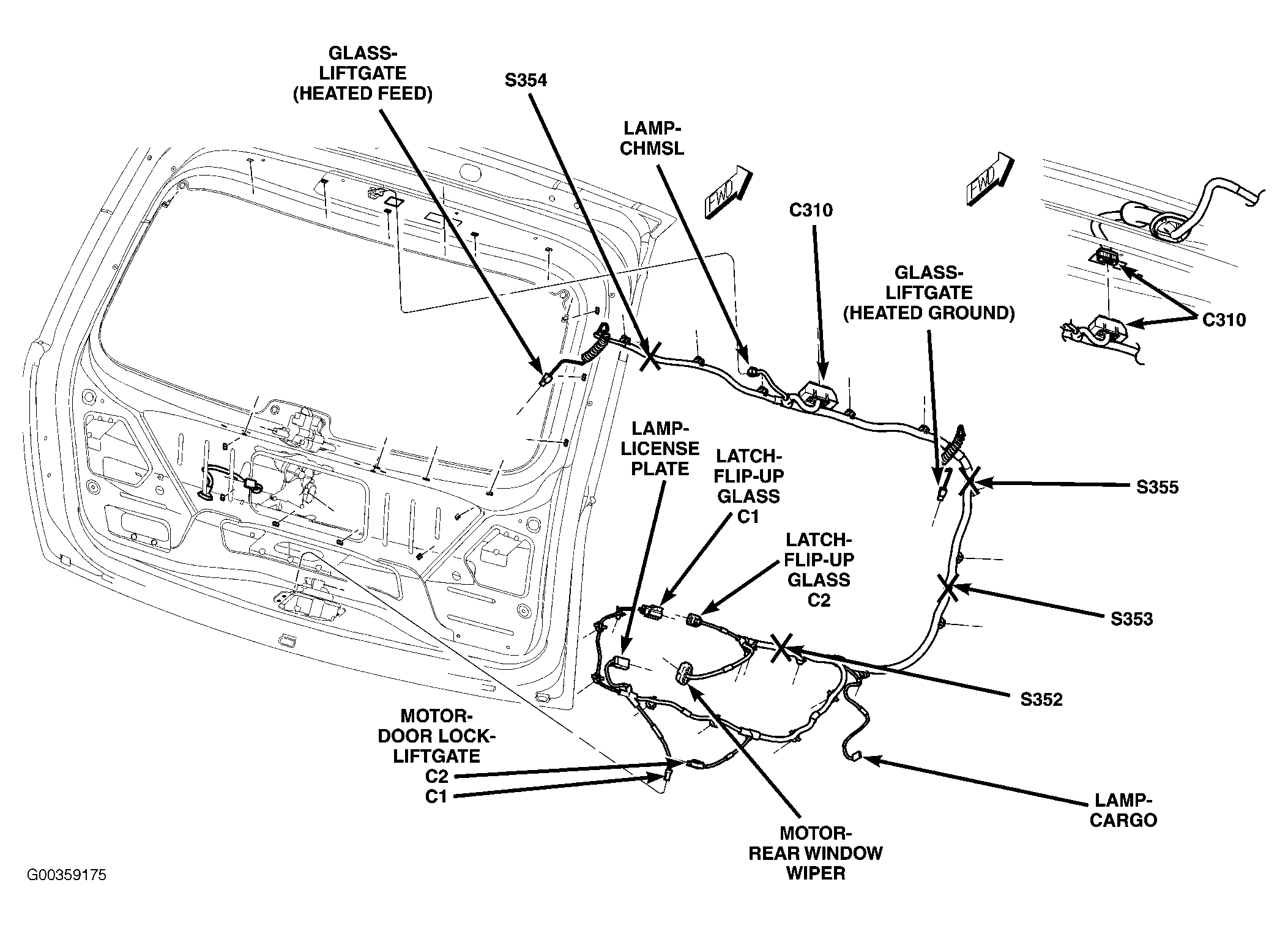

Fig 42: Liftgate

G00359175

Courtesy of CHRYSLER LLC

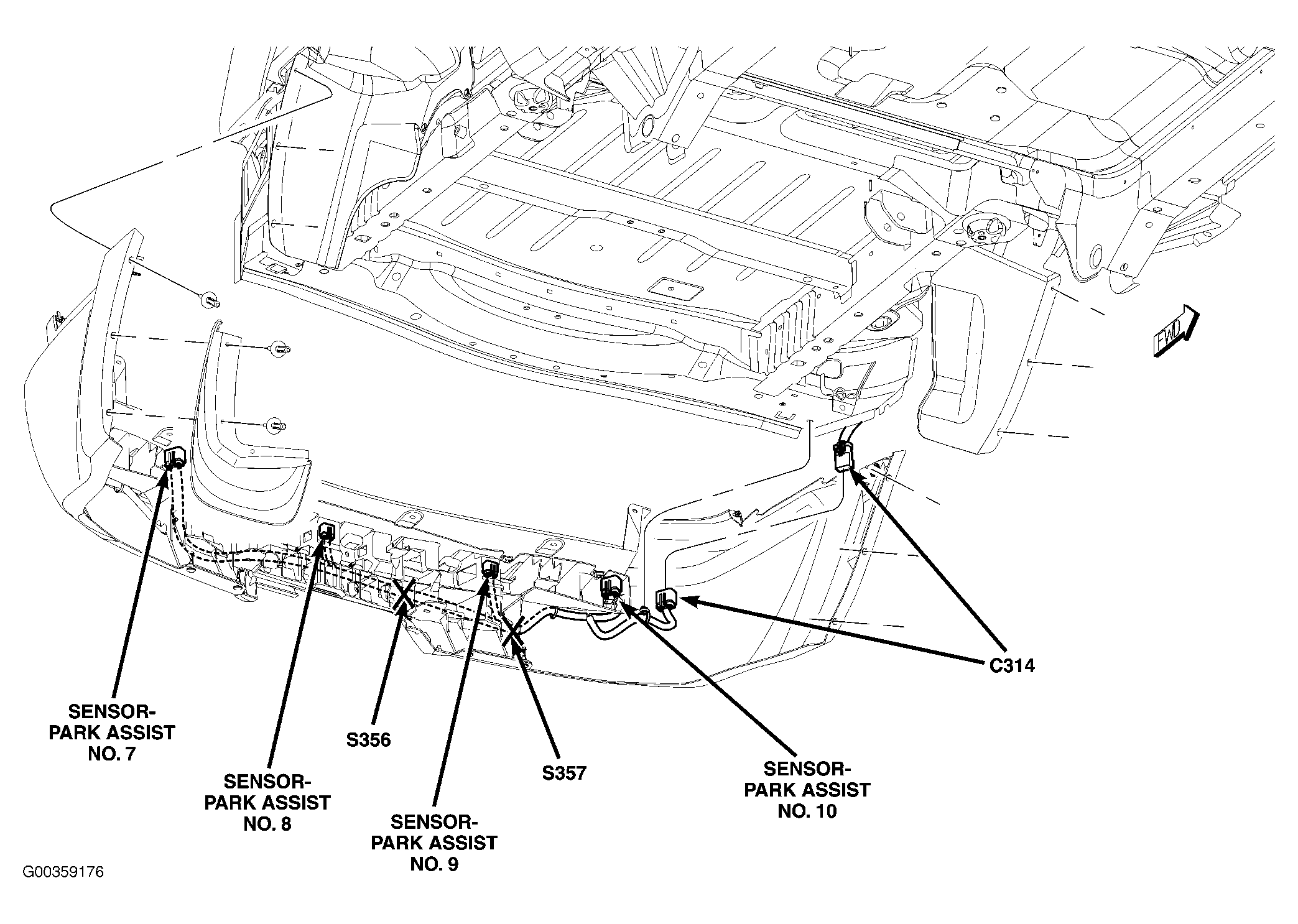

Fig 43: Rear Bumper

G00359176

Courtesy of CHRYSLER LLC

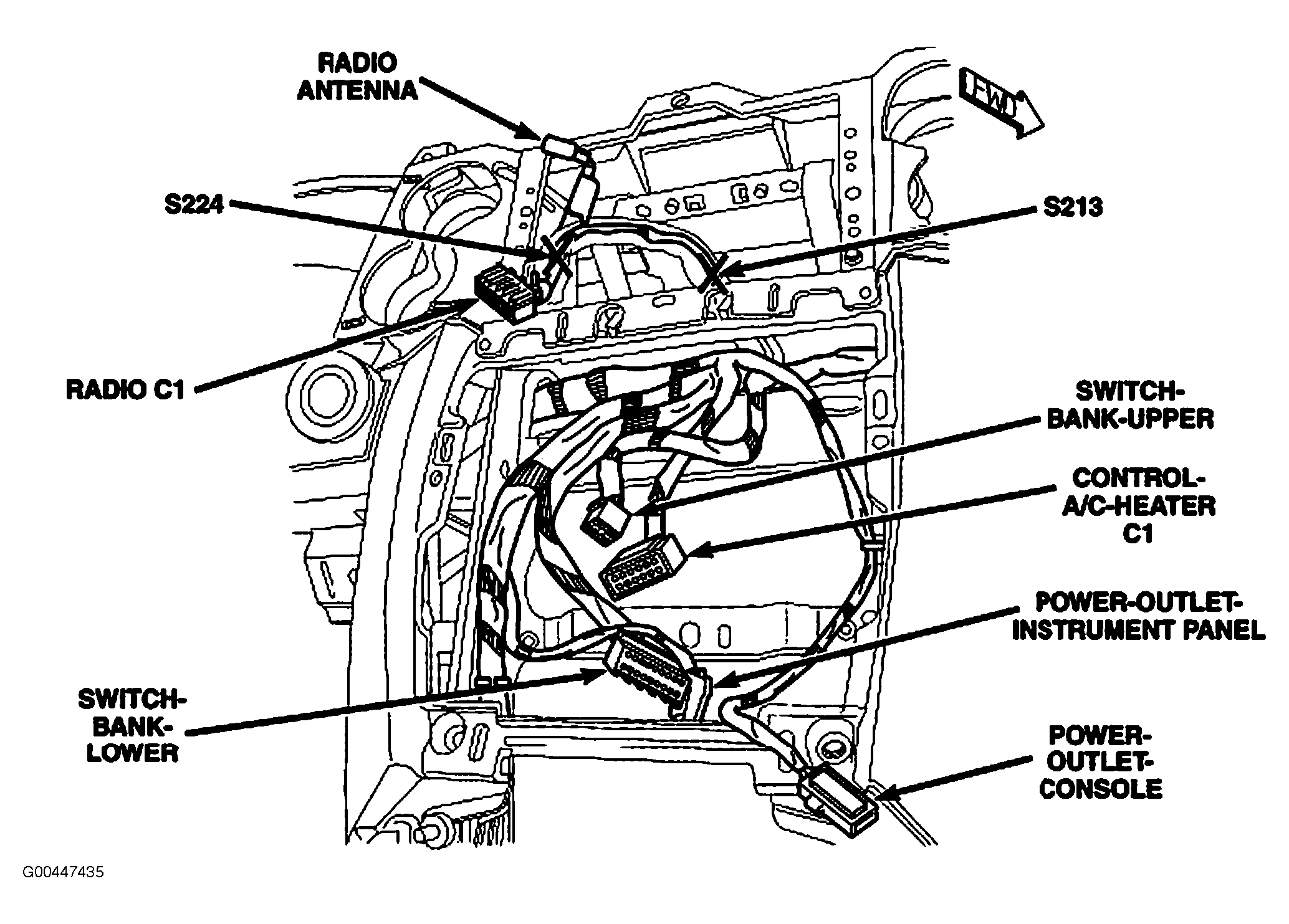

Fig 44: Behind Center Of Dash

G00447435

Courtesy of CHRYSLER LLC

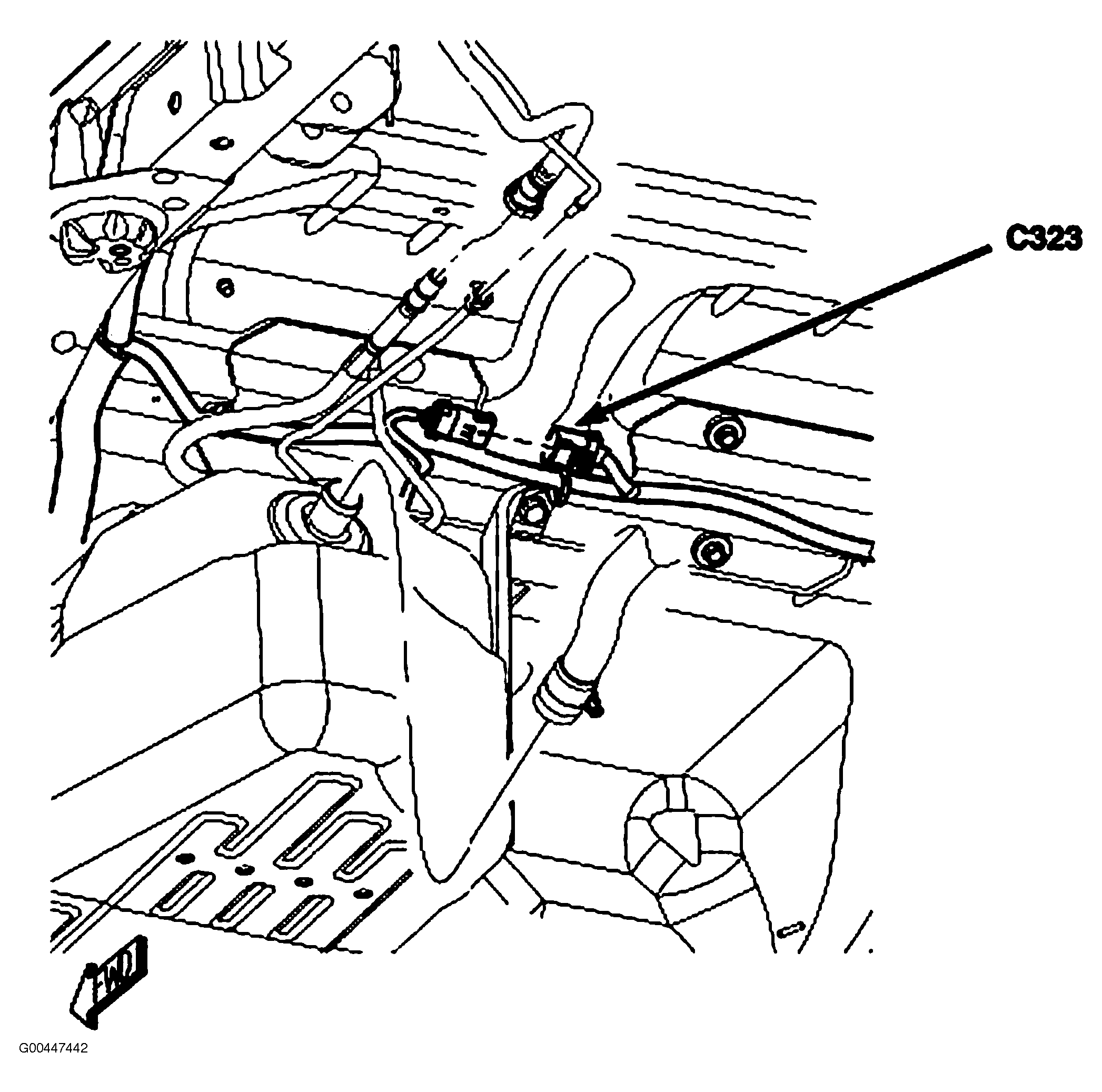

Fig 45: Rear Of Fuel Tank

G00447442

Courtesy of CHRYSLER LLC

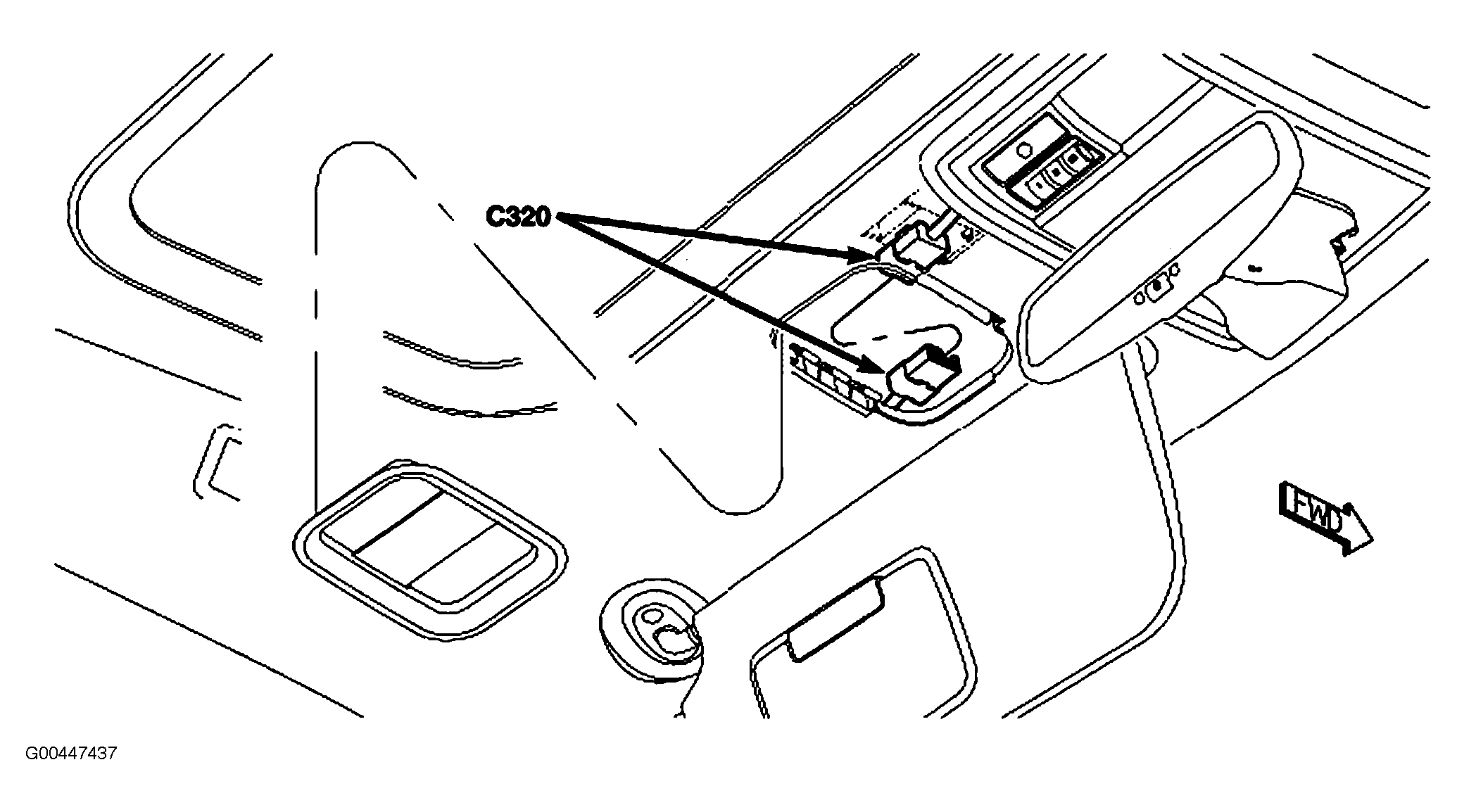

Fig 46: Front Of Headliner

G00447437

Courtesy of CHRYSLER LLC

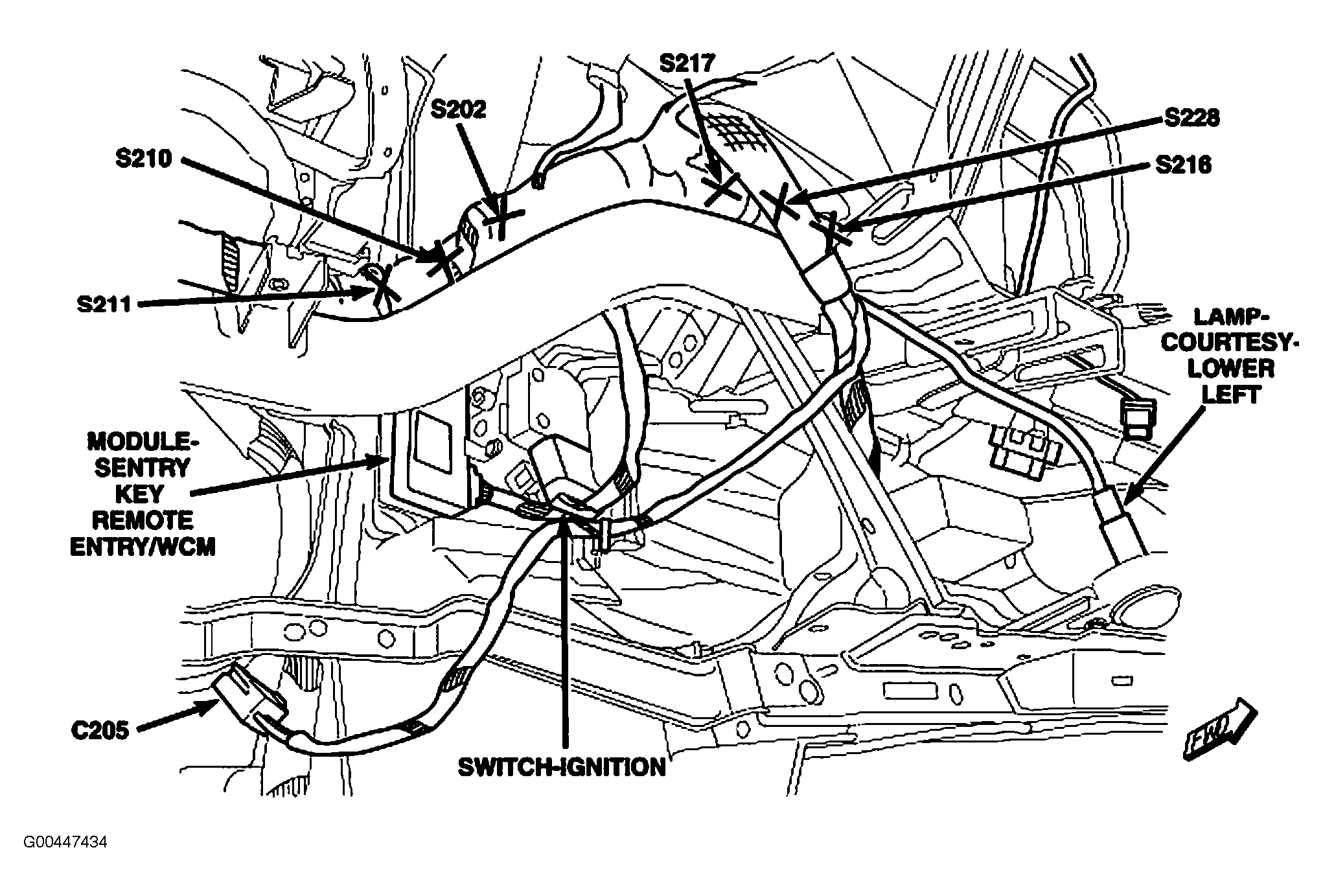

Fig 47: Behind Left Center Of Dash

G00447434

Courtesy of CHRYSLER LLC

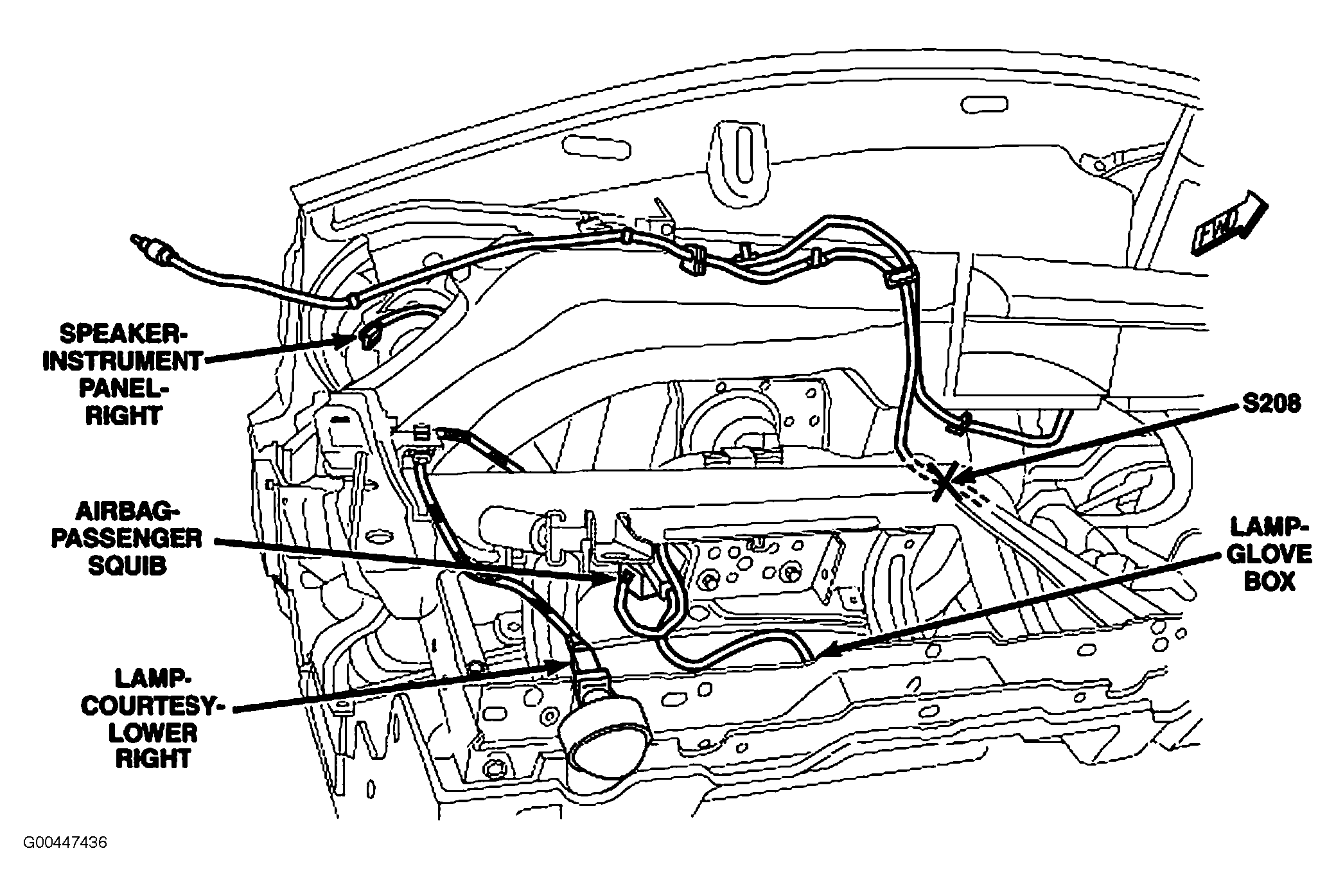

Fig 48: Behind Right Side Of Dash

G00447436

Courtesy of CHRYSLER LLC

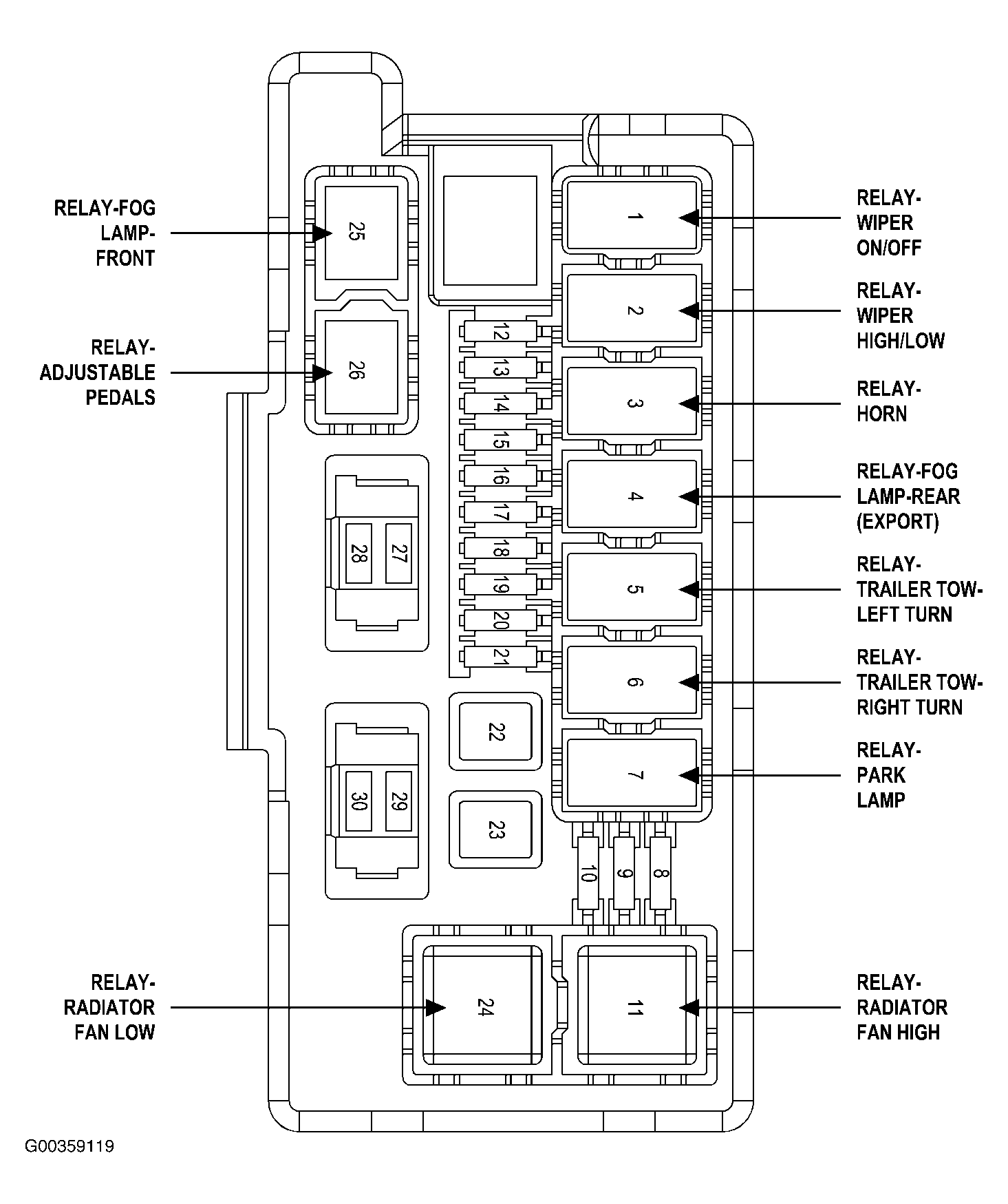

Fig 49: Integrated Power Module

G00359119

Courtesy of CHRYSLER LLC

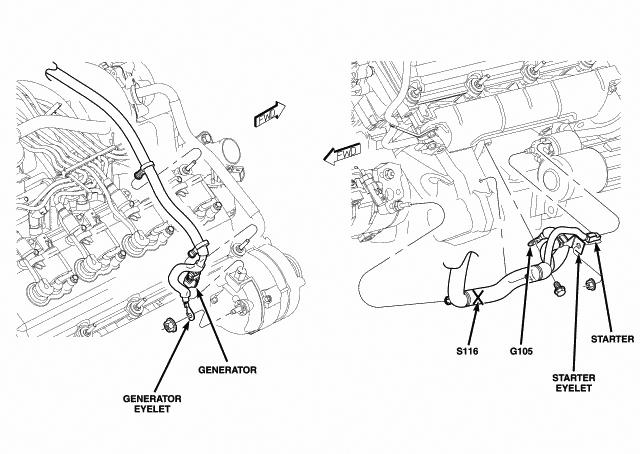

Fig 50: Engine (5.7L & 6.1L)

G00458728

Courtesy of CHRYSLER LLC

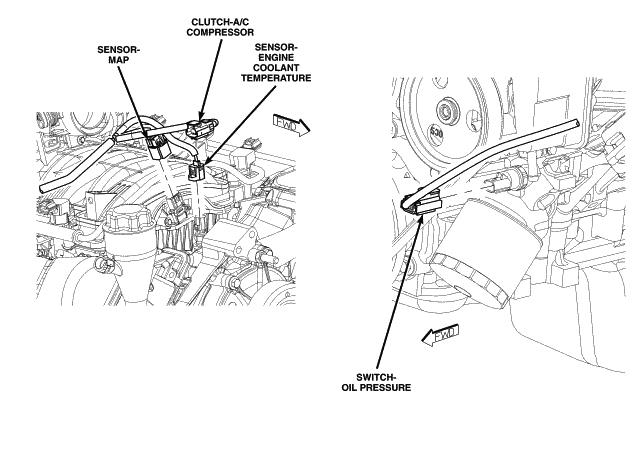

Fig 51: Front Of Engine (3.7L & 4.7L)

G00458729

Courtesy of CHRYSLER LLC

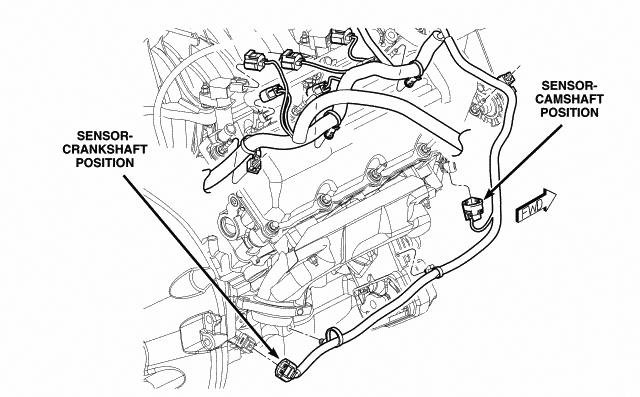

Fig 52: Lower Right Side Of Engine (4.7L)

G00458730

Courtesy of CHRYSLER LLC

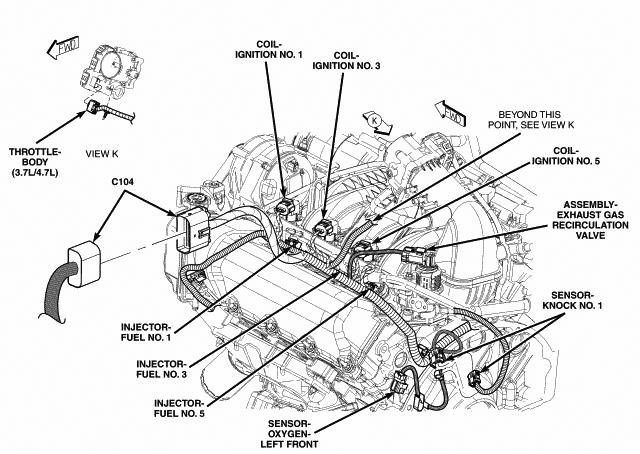

Fig 53: Top Of Engine (3.7L & 4.7L)

G00458731

Courtesy of CHRYSLER LLC

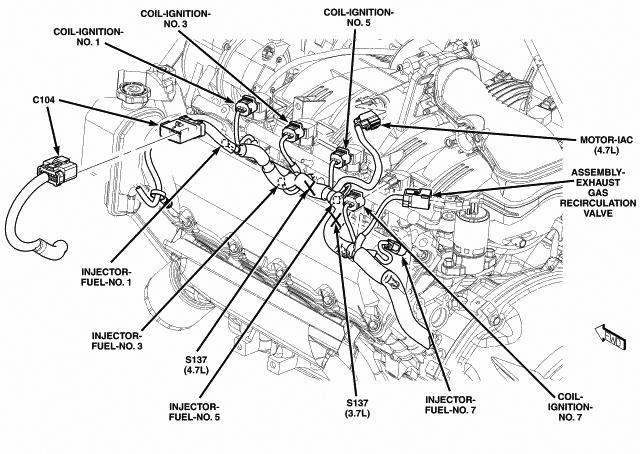

Fig 54: Top Left Side Of Engine (4.7L)

G00458732

Courtesy of CHRYSLER LLC

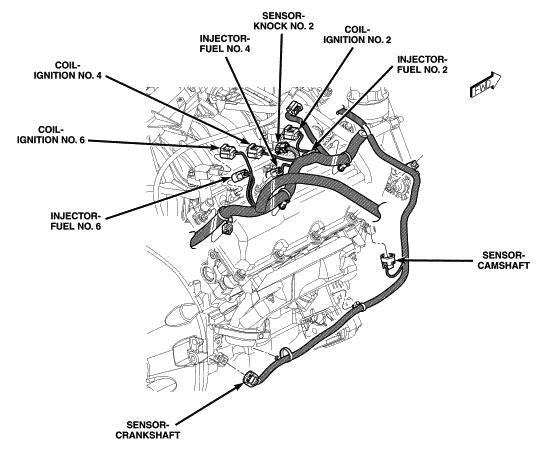

Fig 55: Top Right Side Of Engine (3.7L)

G00458733

Courtesy of CHRYSLER LLC

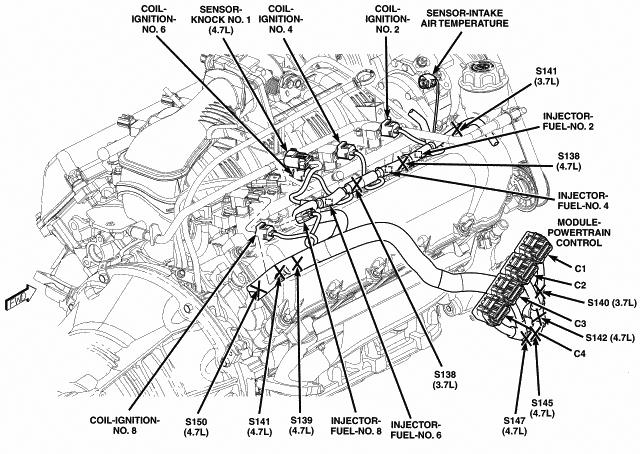

Fig 56: Top Right Side Of Engine (3.7L & 4.7L)

G00458734

Courtesy of CHRYSLER LLC

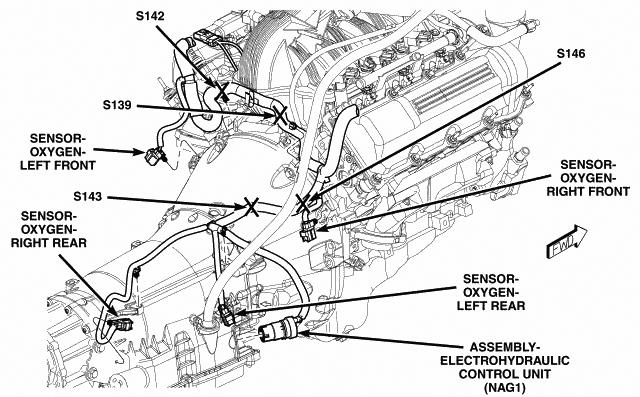

Fig 57: Right Side Of Transmission (3.7L)

G00458735

Courtesy of CHRYSLER LLC

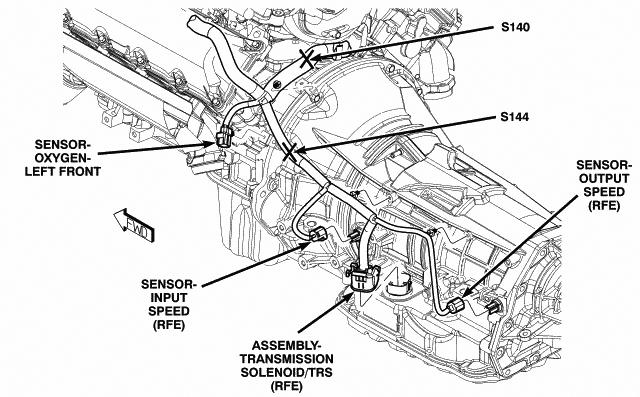

Fig 58: Left Side Of Transmission (4.7L)

G00458736

Courtesy of CHRYSLER LLC

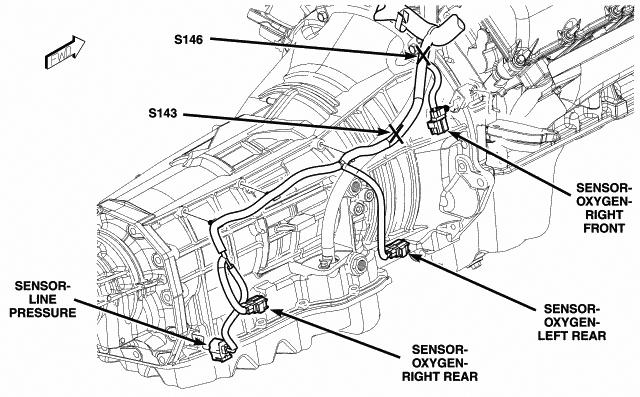

Fig 59: Right Side Of Transmission (4.7L)

G00458737

Courtesy of CHRYSLER LLC

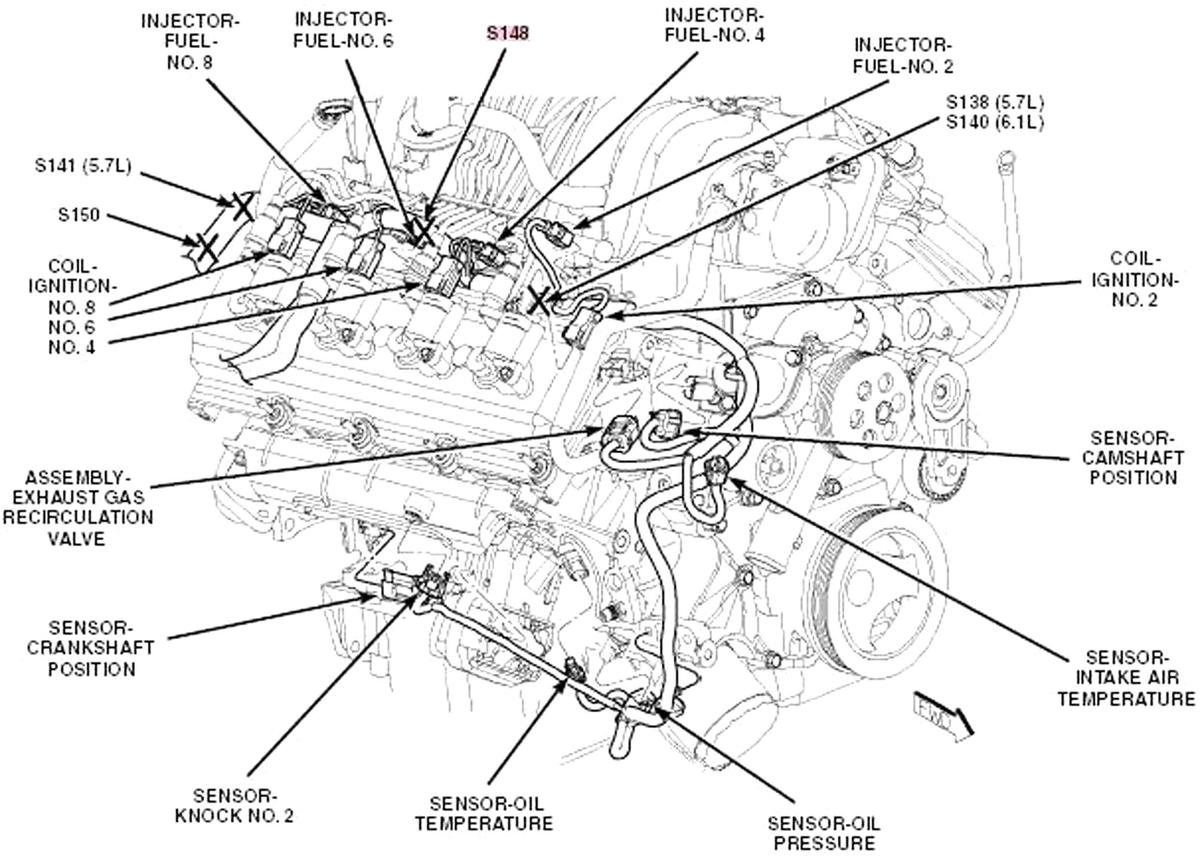

Fig 60: Right Side Of Engine (5.7L & 6.1L)

G00467411

Courtesy of CHRYSLER LLC

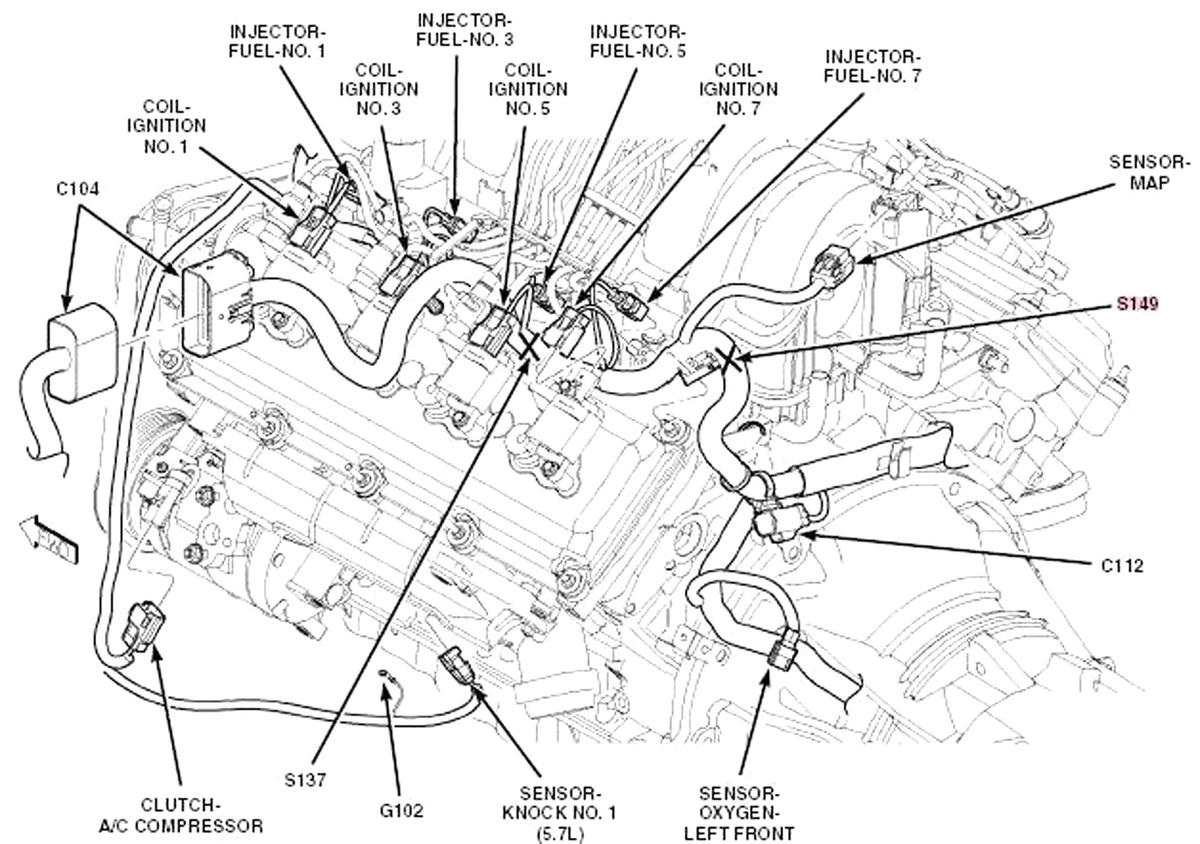

Fig 61: Top Left Side Of Engine (5.7L & 6.1L)

G00467413

Courtesy of CHRYSLER LLC

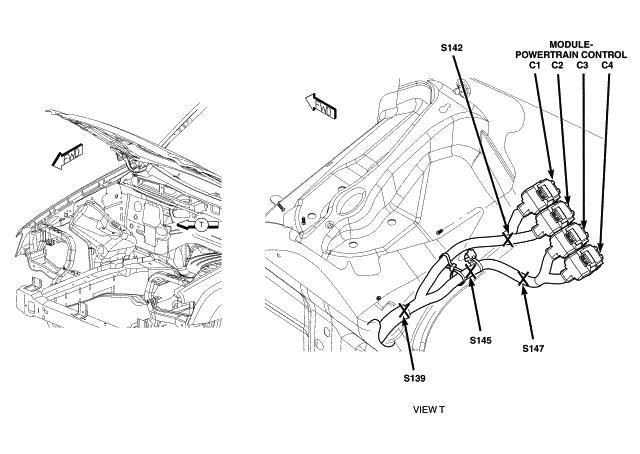

Fig 62: Right Side Of Engine Compartment (5.7L & 6.1L)

G00458740

Courtesy of CHRYSLER LLC

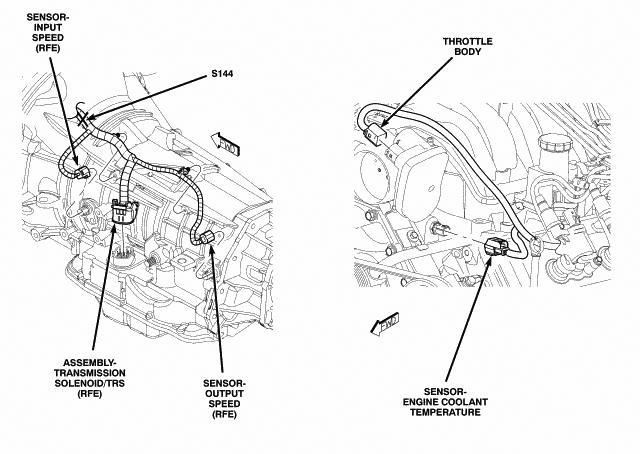

Fig 63: Left Side Of Engine & Transmission (5.7L & 6.1L)

G00458741

Courtesy of CHRYSLER LLC

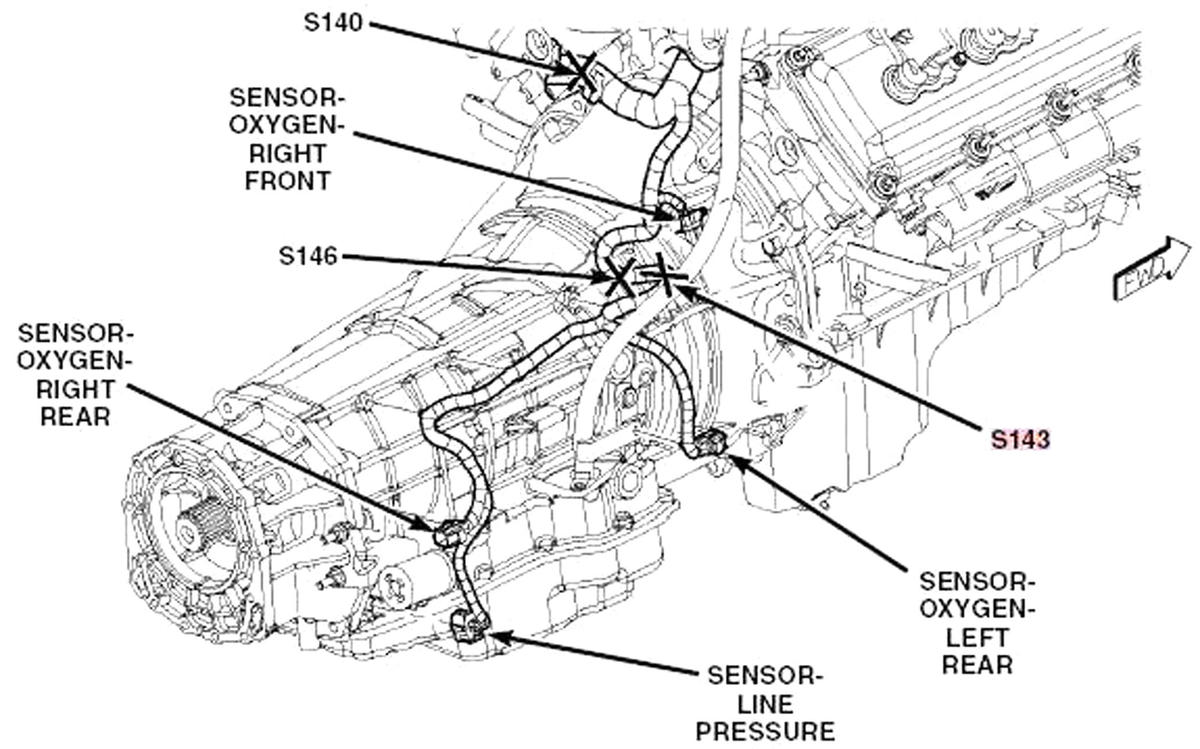

Fig 64: Right Side Of Transmission (5.7L & 6.1L)

G00467410

Courtesy of CHRYSLER LLC

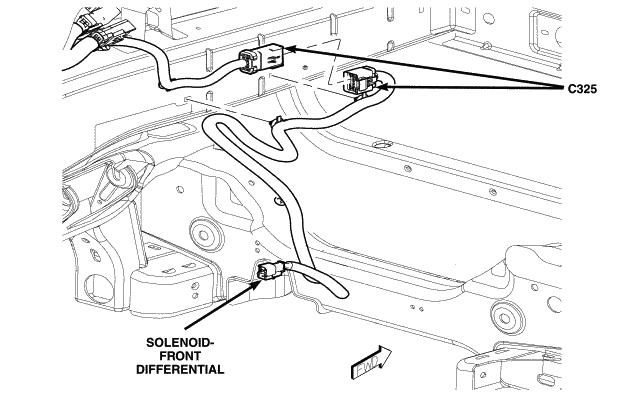

Fig 65: Front Cradle

G00458743

Courtesy of CHRYSLER LLC

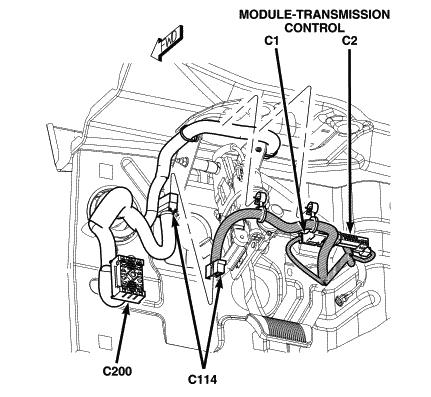

Fig 66: Under Left End Of Dash

G00458744

Courtesy of CHRYSLER LLC

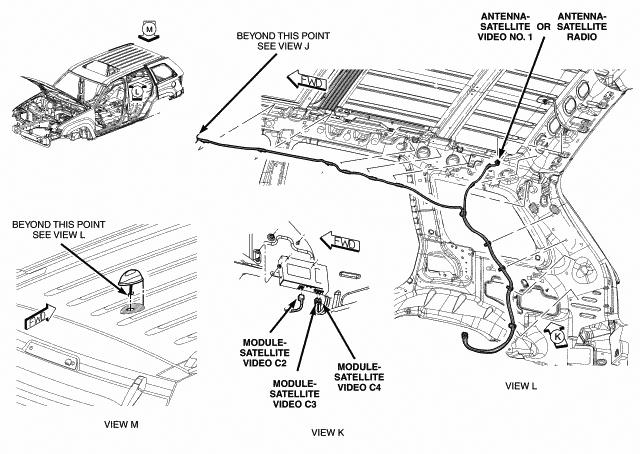

Fig 67: Right Rear Of Vehicle

G00458745

Courtesy of CHRYSLER LLC

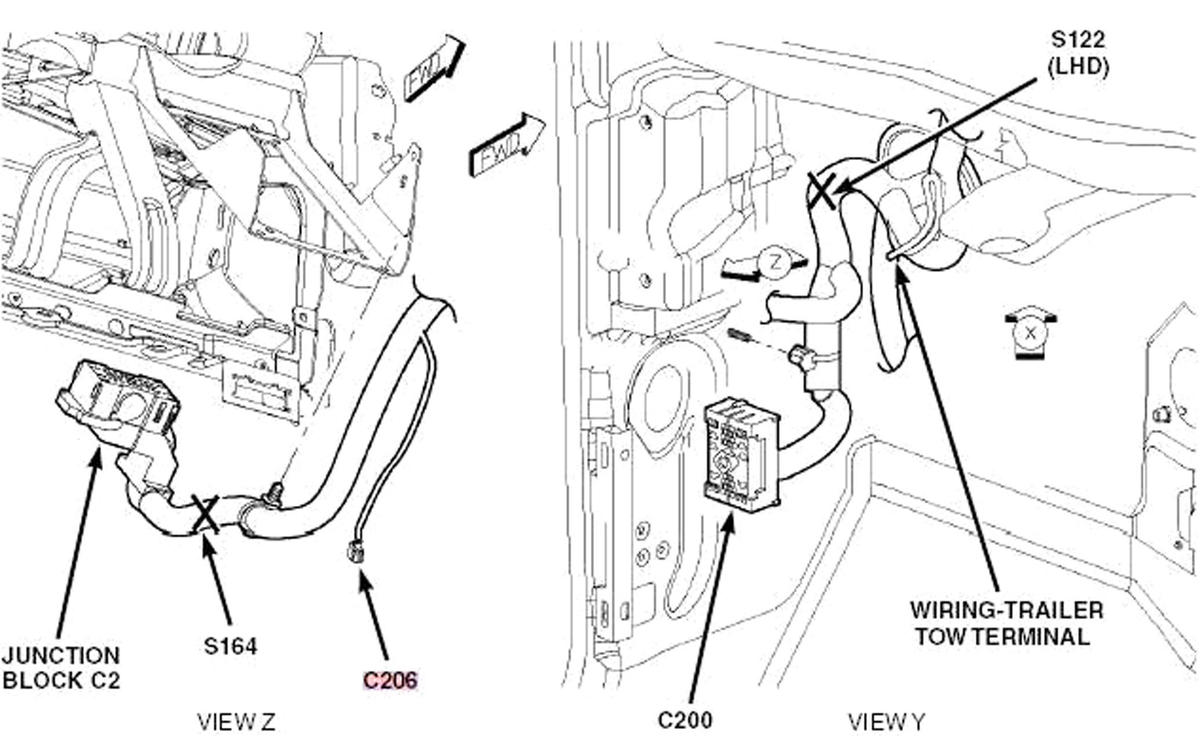

Fig 68: Left Side Of Dash

G00467404

Courtesy of CHRYSLER LLC

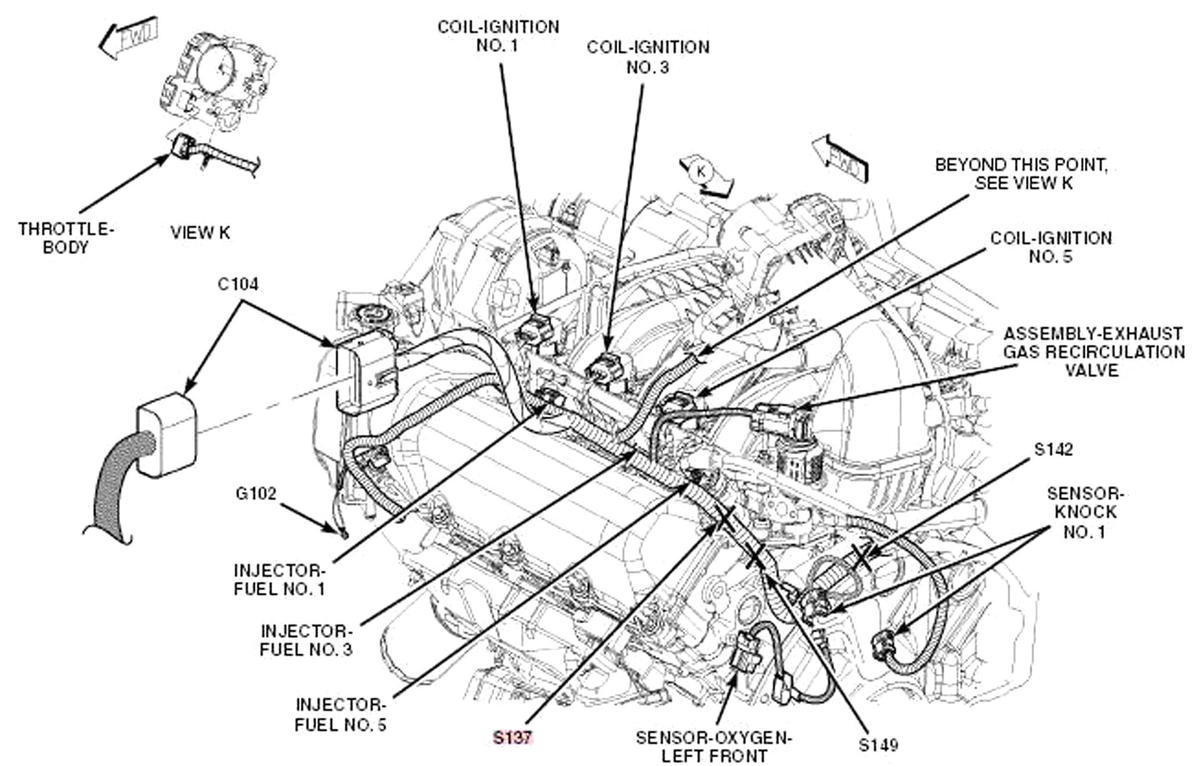

Fig 69: Top Left Side Of Engine (3.7L)

G00467407

Courtesy of CHRYSLER LLC

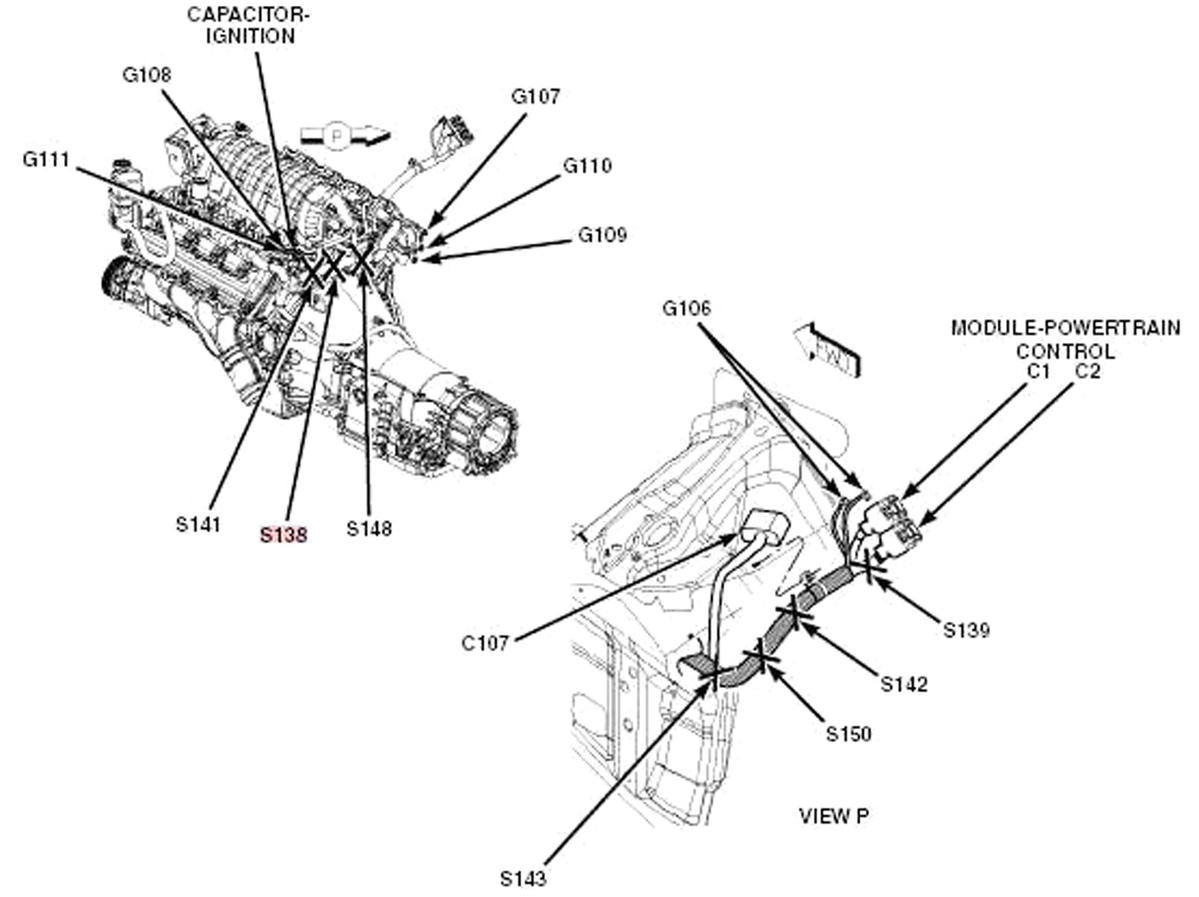

Fig 70: Rear Of Engine (6.1L)

G00467408

Courtesy of CHRYSLER LLC

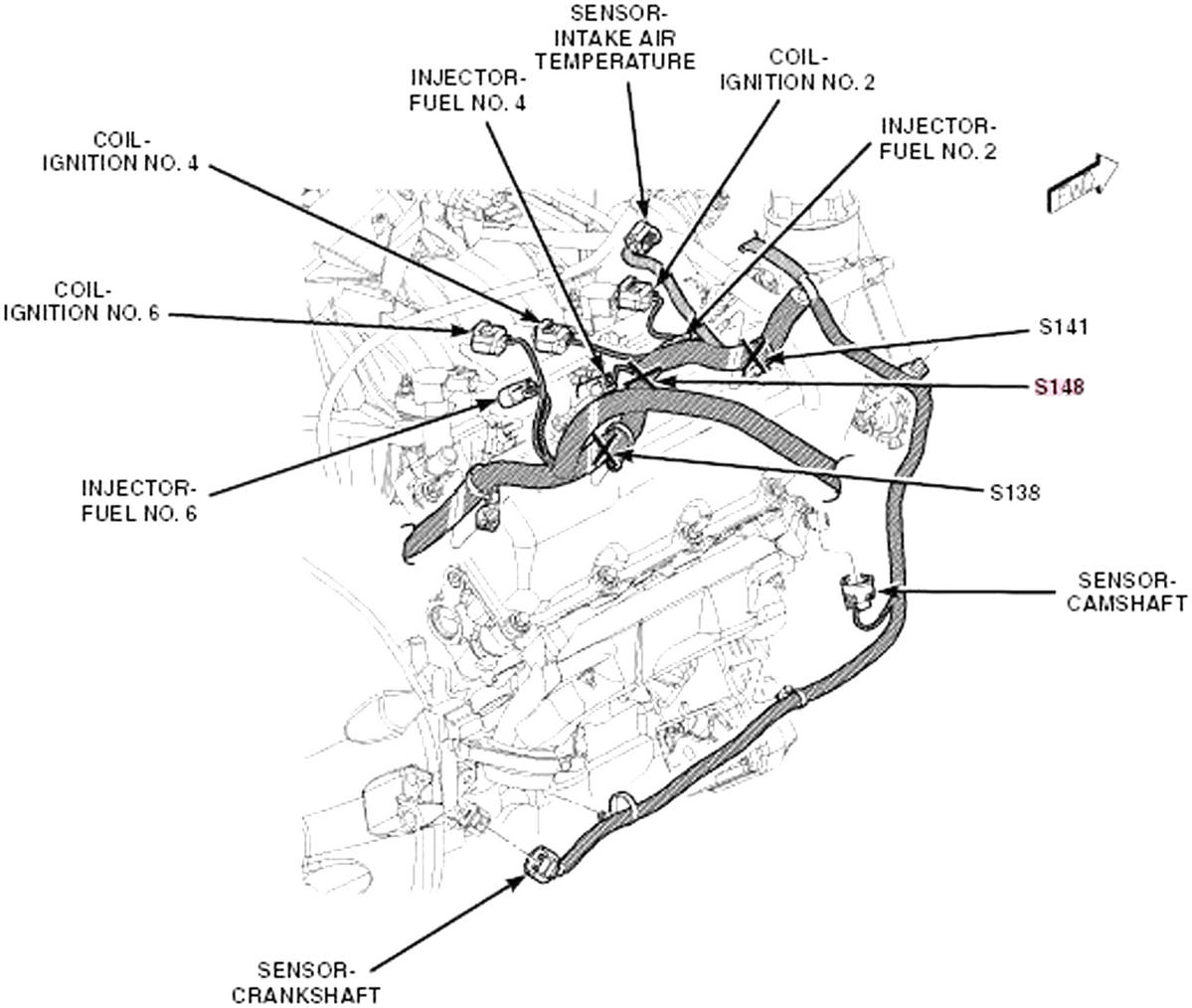

Fig 71: Right Side Of Engine (3.7L)

G00467409

Courtesy of CHRYSLER LLC

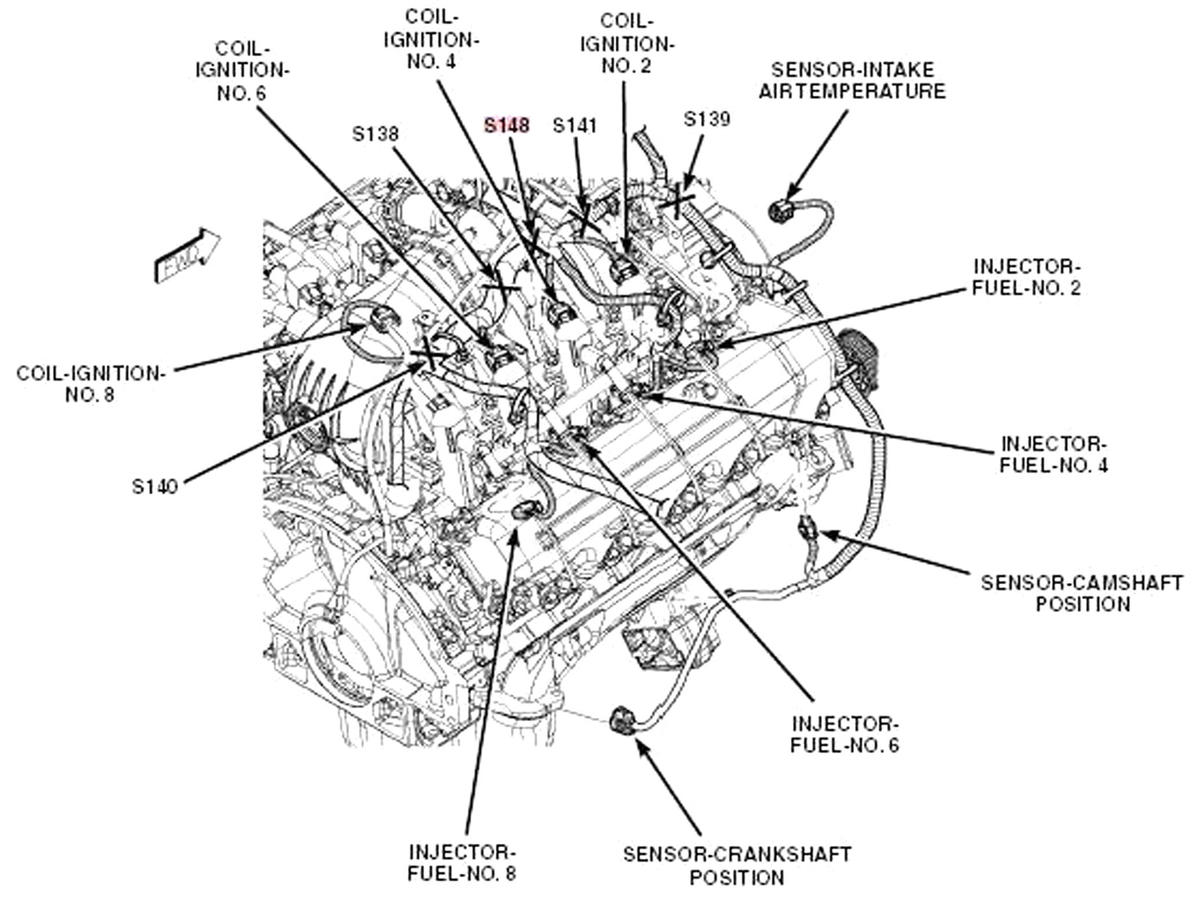

Fig 72: Right Side Of Engine (4.7L)

G00467412

Courtesy of CHRYSLER LLC

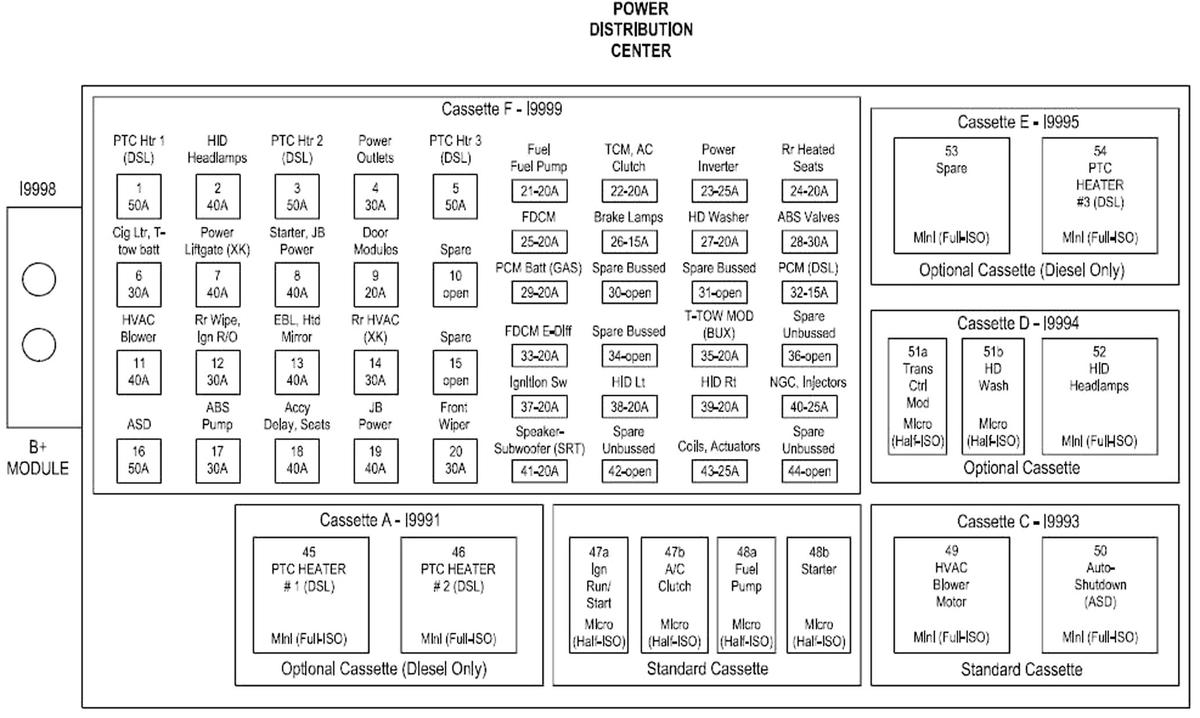

Fig 73: Power Distribution Center

G00467414

Courtesy of CHRYSLER LLC

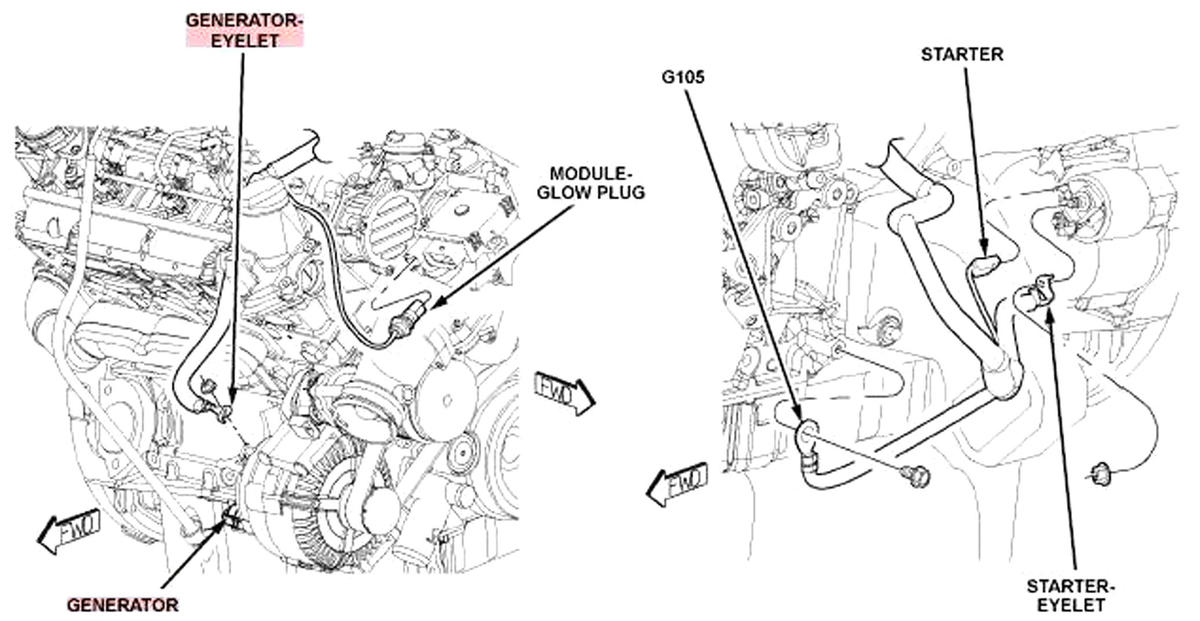

Fig 74: Left/Right Side Of Engine (Diesel)

G00467415

Courtesy of CHRYSLER LLC

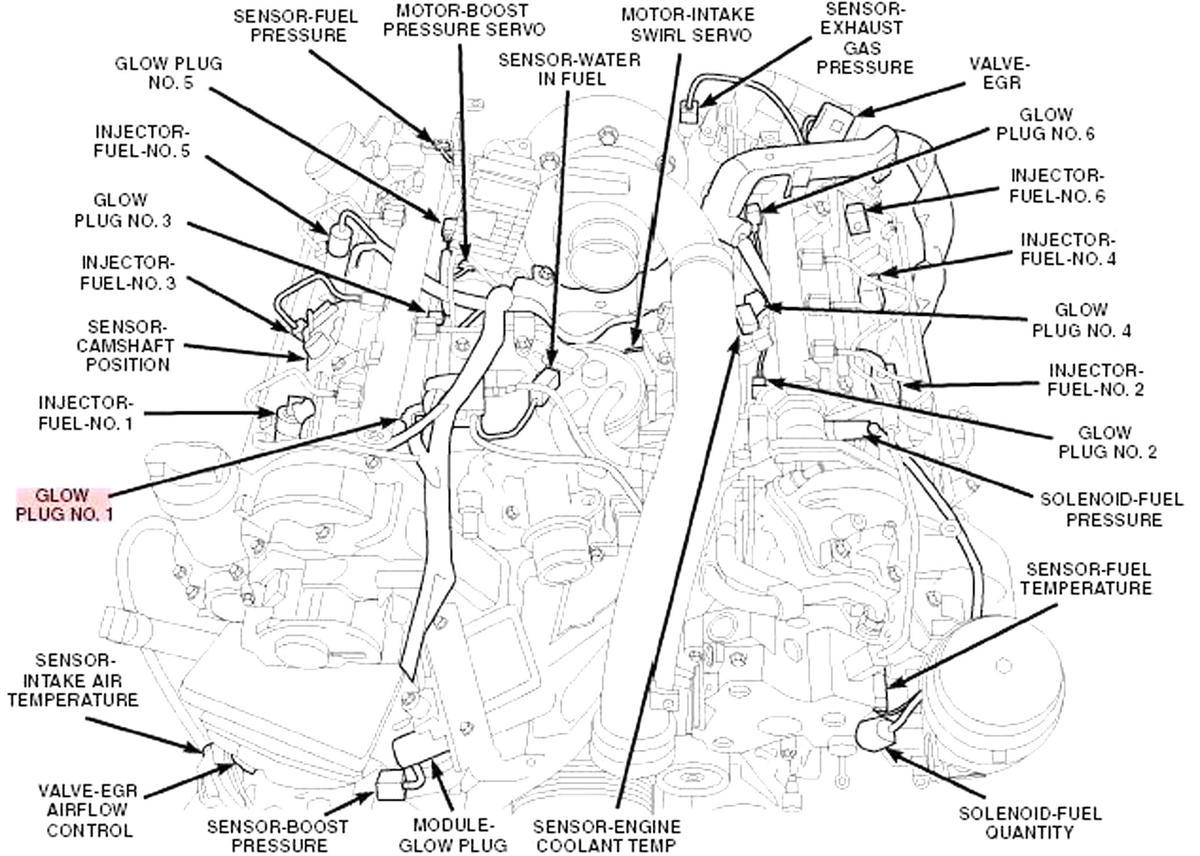

Fig 75: Top Of Engine (Diesel)

G00467416

Courtesy of CHRYSLER LLC

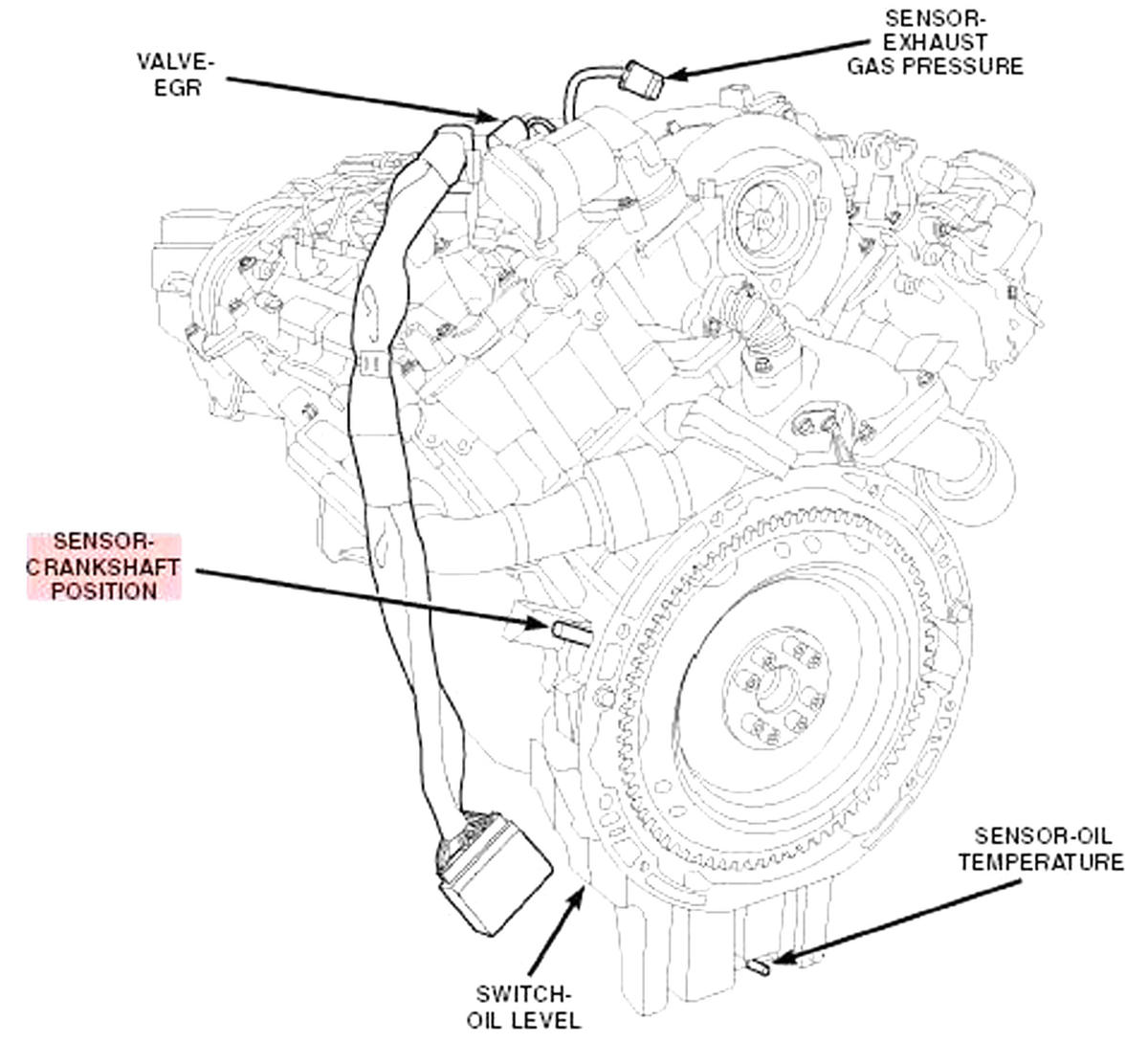

Fig 76: Rear Of Engine (Diesel)

G00467417

Courtesy of CHRYSLER LLC

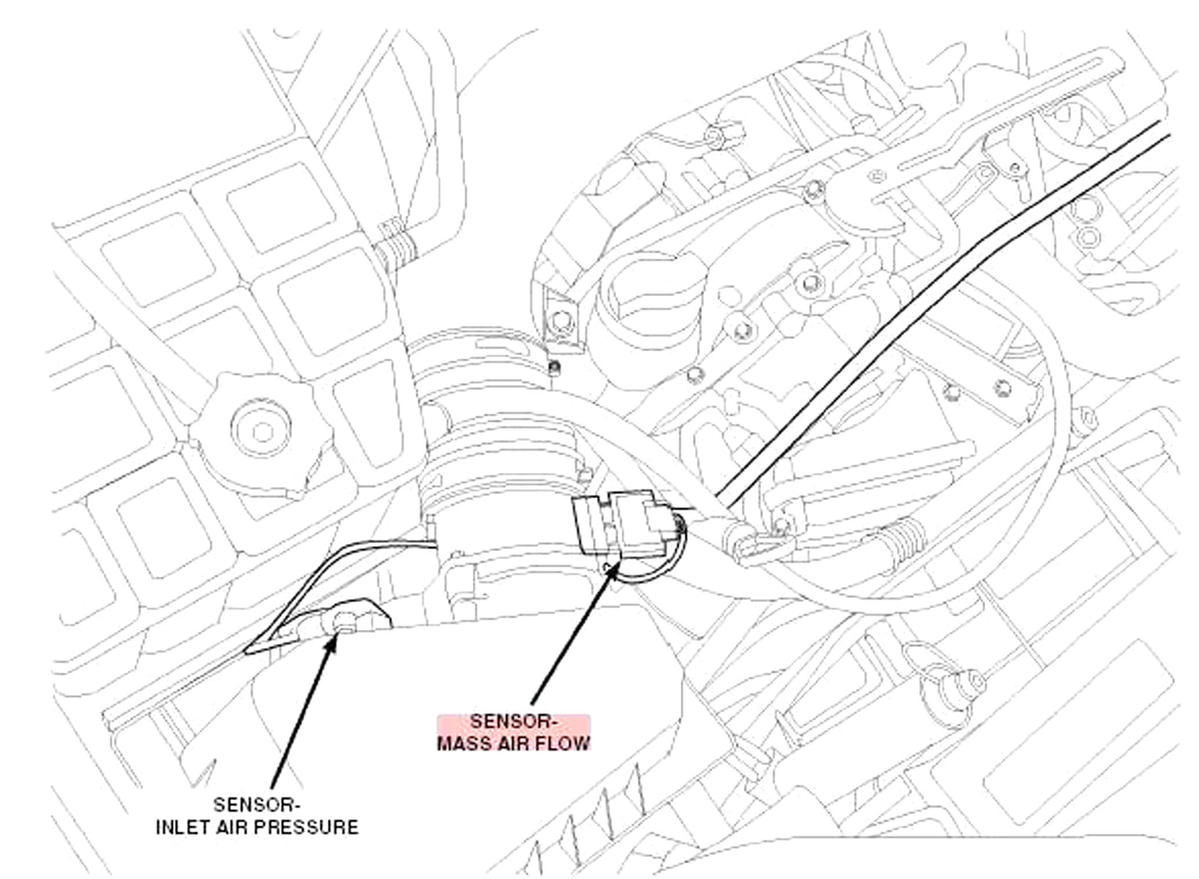

Fig 77: Right Front Of Engine Compartment (Diesel)

G00467419

Courtesy of CHRYSLER LLC
