B1634-Left Hi Beam Control Circuit High: Notes

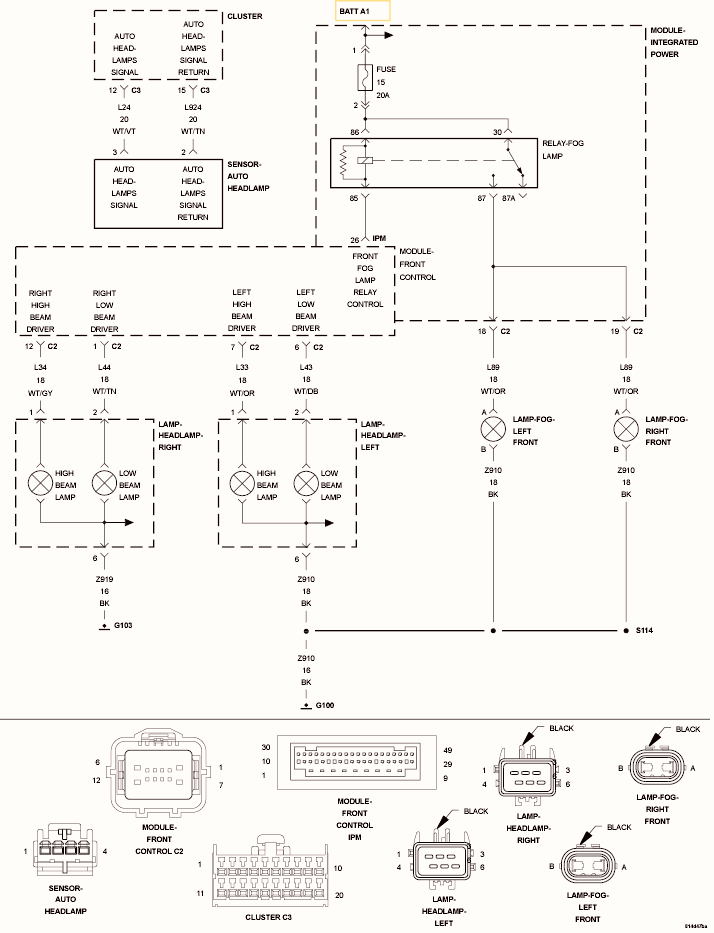

Fig 1: Left Hi Beam Circuit Schenatic
GC0120080Courtesy of CHRYSLER LLC
