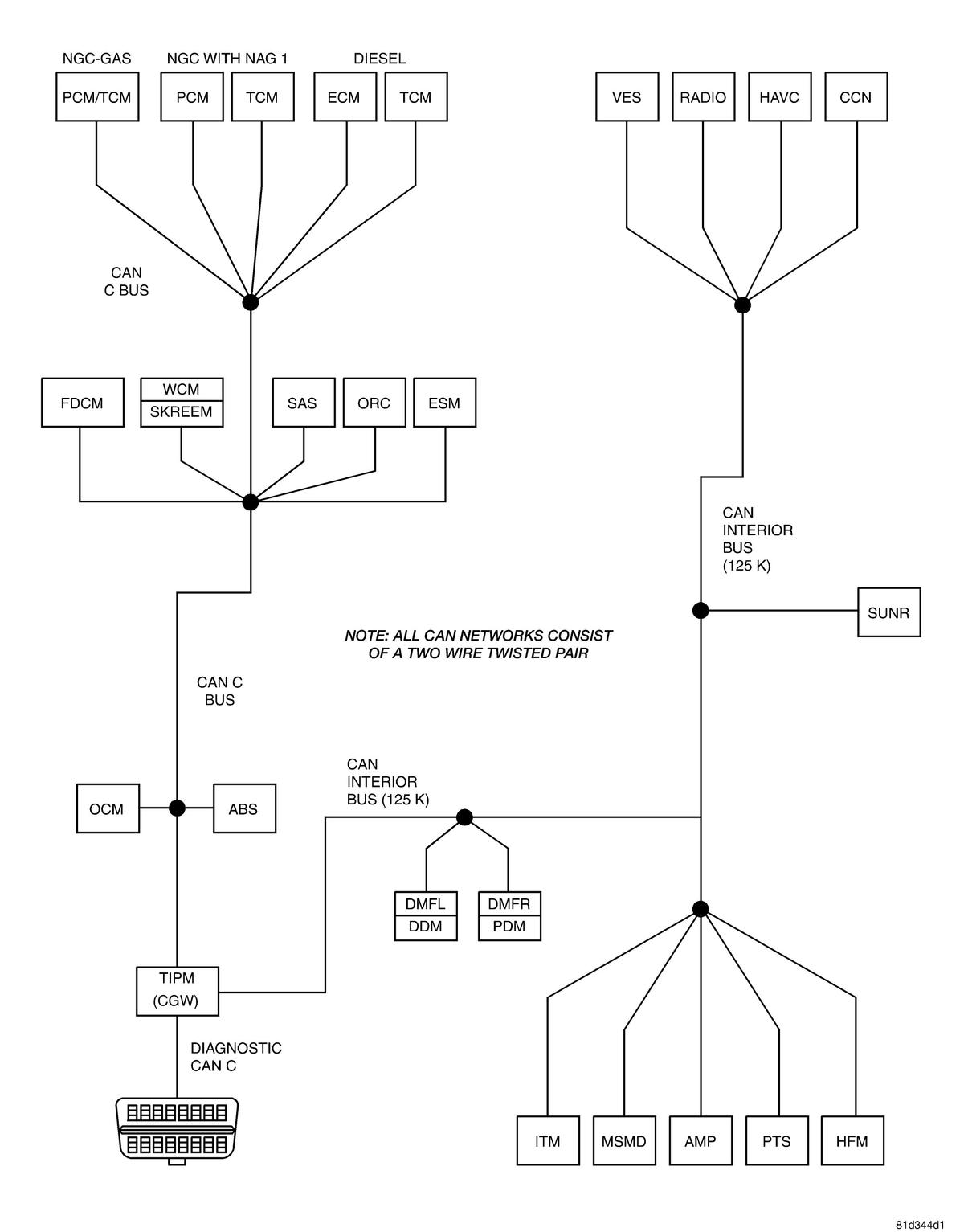

Home › Jeep › 2009 › Liberty Limited, 4WD, Part Time › Repair and Diagnosis › Restraints › Restraints Control Systems › Air Bag Restraint System - Electrical Diagnostics › DTC Troubleshooting › U0154-Lost Communication With Occupant Classification Module › Circuit Schematic
