P2123-Accelerator Pedal Position Sensor 1 Circuit High
›
Notes
P2123-Accelerator Pedal Position Sensor 1 Circuit High: Notes

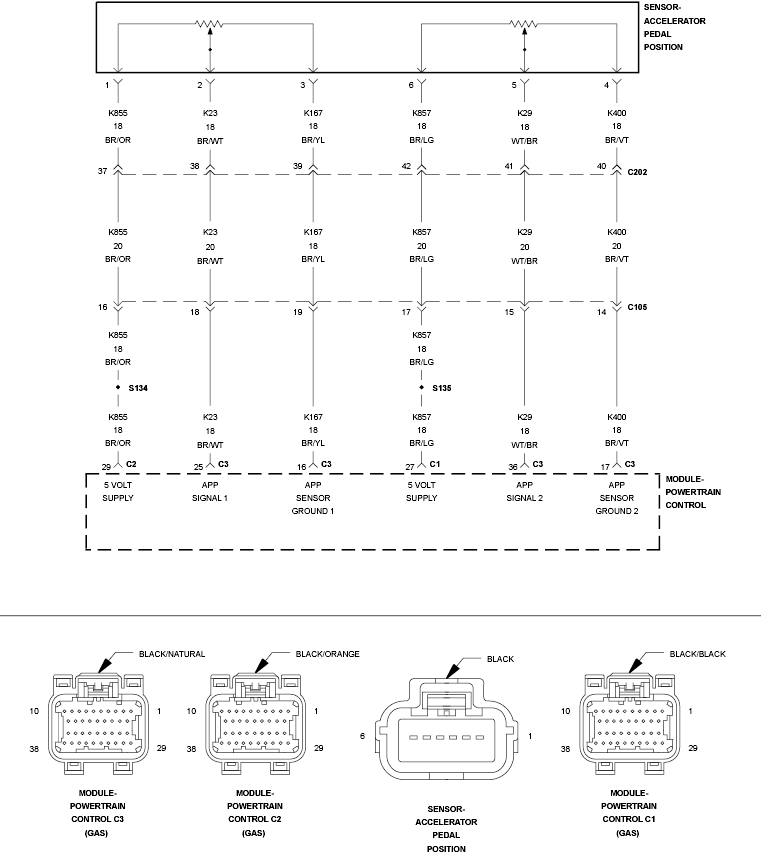

Fig 1: Accelerator Pedal Position Sensor 1 Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
