Generator, 3.8L: Installation: Installation

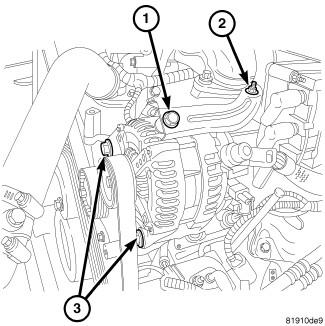

Fig 1: Generator Mounting - 3.8L

Courtesy of CHRYSLER LLC

1. Install generator mounting fasteners (1), (2), and (3) and tighten. Refer to TORQUE .
   CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.
   CAUTION: When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump will be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment, or refer to ACCESSORY DRIVE .
2. Install generator drive belt. Refer to ACCESSORY DRIVE .

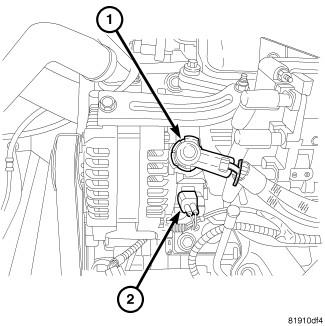

   Fig 2: Generator Electrical Connectors - 3.8L

   Courtesy of CHRYSLER LLC
3. Snap field wire connector (2) into generator.
4. Install B+ terminal to generator mounting stud. Tighten mounting nut. Refer to TORQUE .
5. Snap plastic cover (1) to B+ terminal.
6. Install negative battery cable to battery.
