P0118-Engine Coolant Temperature Sensor Circuit High
›
Notes
P0118-Engine Coolant Temperature Sensor Circuit High: Notes

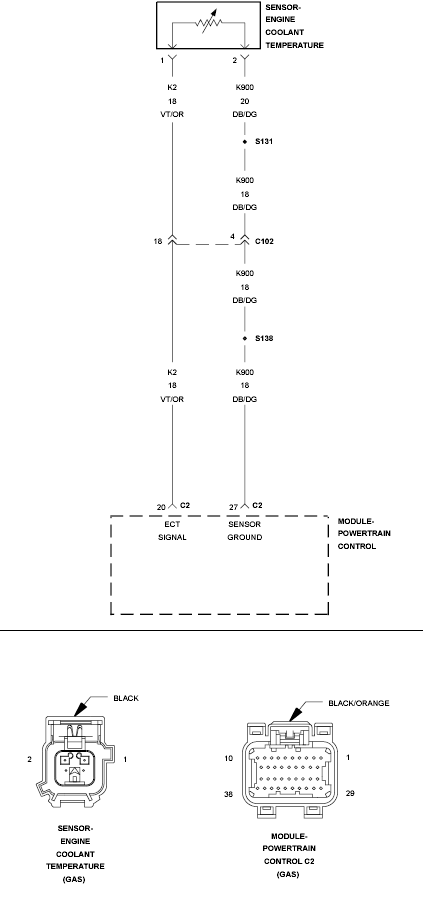

Fig 1: Engine Coolant Temperature Sensor Circuit
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
