Home › Jeep › 2009 › Wrangler Sahara, Automatic › Repair and Diagnosis › Engine Performance › System › DTCS P0016 To P0129 - NGC › P0107-Manifold Absolute Pressure Sensor Circuit Low › Notes

P0107-Manifold Absolute Pressure Sensor Circuit Low: Notes

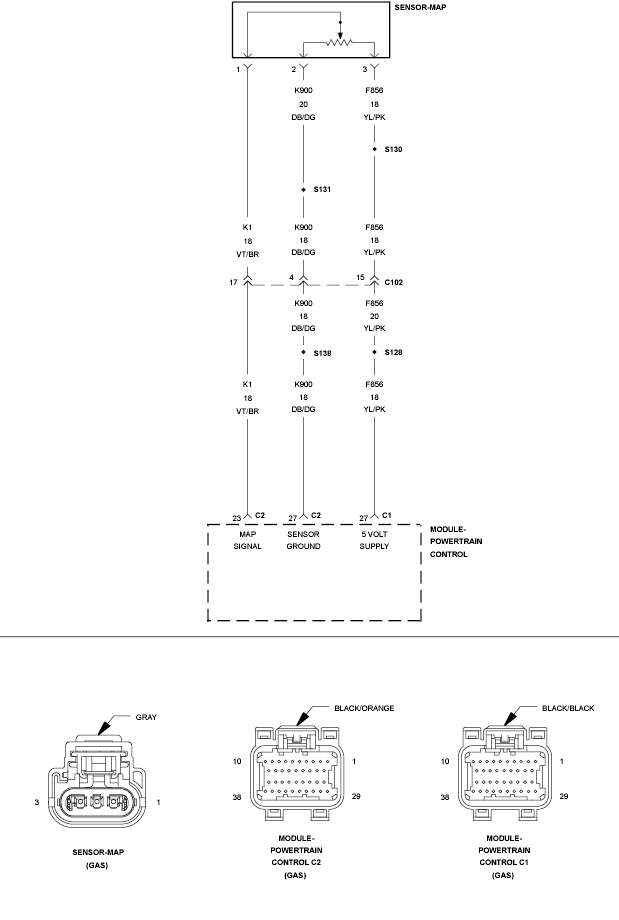

Fig 1: Manifold Absolute Pressure Sensor Circuit

GC0131881

Courtesy of CHRYSLER LLC
