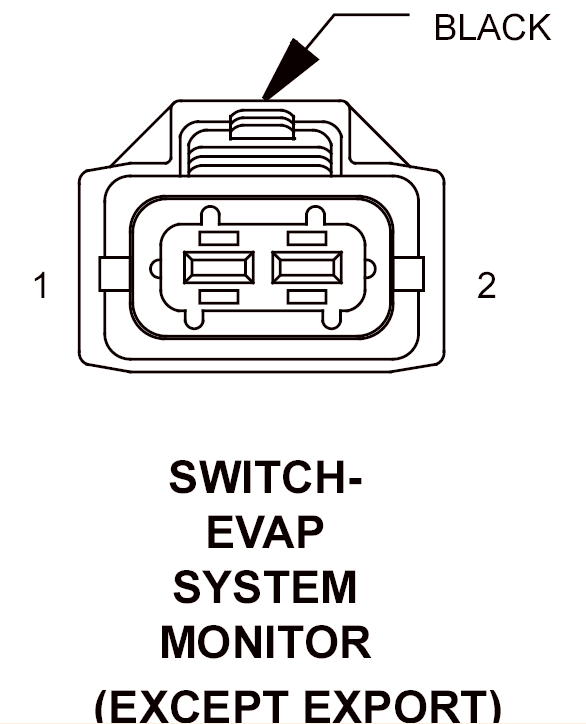

EVAP System Monitor Switch (Except Export) Connector End View

SWITCH-EVAP SYSTEM MONITOR - BLACK 2 WAY (EXCEPT EXPORT)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z905 18BK	GROUND
2	K107 18VT/WT	ESM SIGNAL
