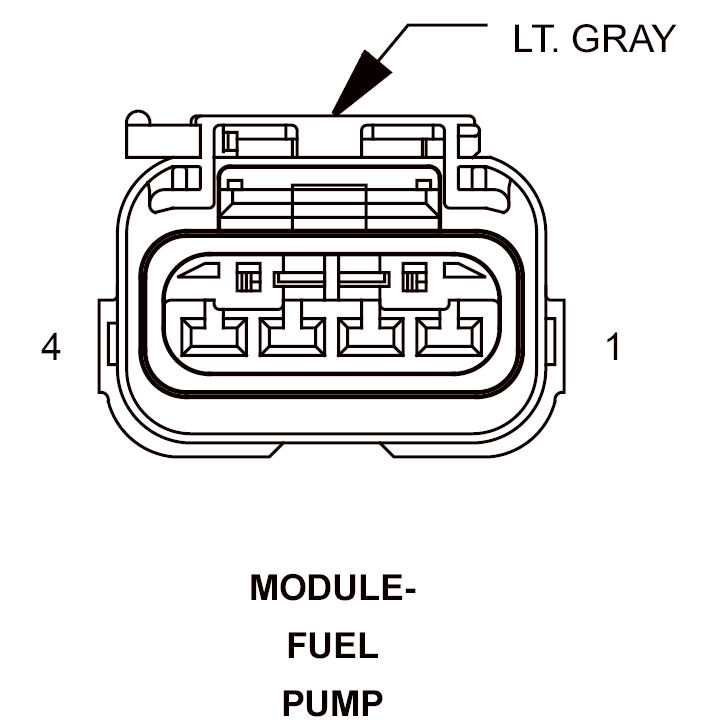

Fuel Pump Module Connector End View

MODULE-FUEL PUMP - LT. GRAY 4 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z905 16BK	GROUND
2	N4 20DB	FUEL LEVEL SIGNAL
3	K91 18DB/YL	SENSOR GROUND
4	N1 16DB/OR	FUSED FUEL PUMP OUTPUT
