Home › Jeep › 2009 › Wrangler X, Automatic › Repair and Diagnosis › Engine Performance › System › DTCS P1697 To P2172 - NGC › P2101-Electronic Throttle Control Motor Performance › Notes

P2101-Electronic Throttle Control Motor Performance: Notes

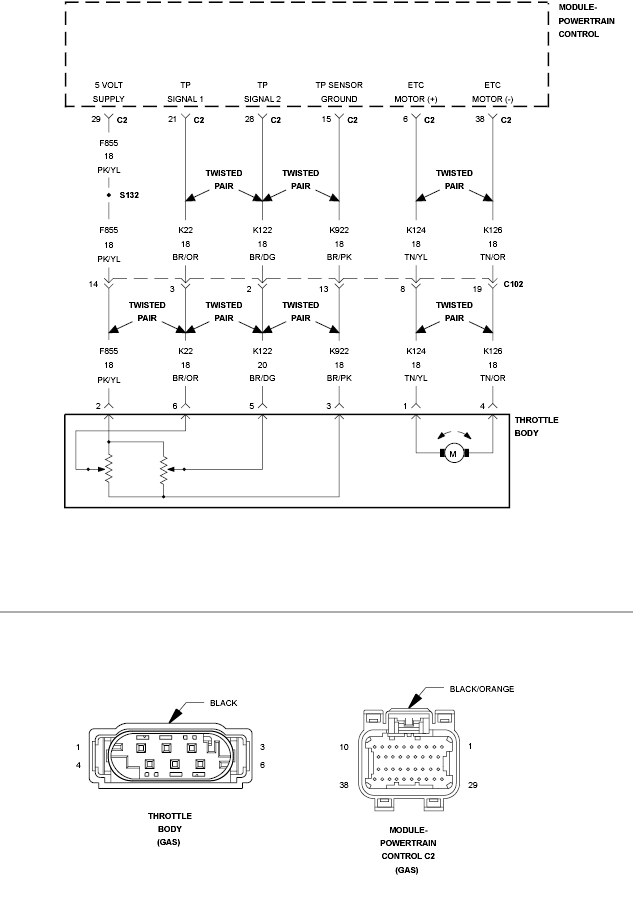

Fig 1: Throttle Position Sensor Circuit
GC0131884Courtesy of CHRYSLER LLC
